SPARECRUX is NOT an authorized distributor for SICK SENSORS

6011995 | SICK | IM18-08NPS-ZW1

₹ 8,713.91

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

IM18-08NPS-ZW1 (6011995)

Original Equipment Manufacturer

SICK SENSORS

Description

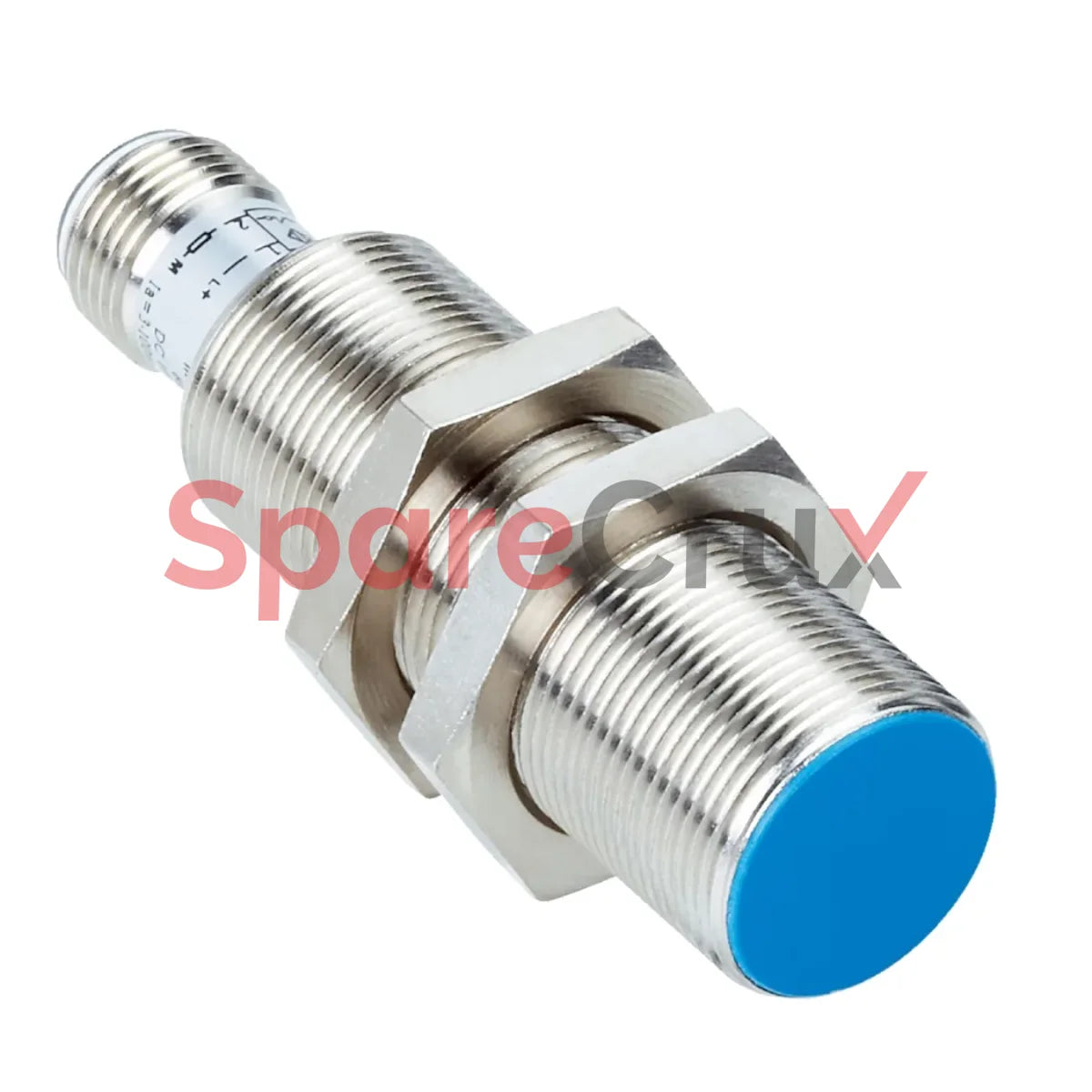

The IM18-08NPS-ZW1 is an inductive proximity sensor from SICK's IM Standard series, designed for non-contact detection of metallic objects. Featuring a robust M18 cylindrical housing and a sensing range of 8 mm, it is suitable for various industrial automation applications.

  • Functional Principle: Inductive proximity sensor
  • Sensing Range (Sn): 8 mm
  • Installation Type: Non-flush
  • Output Type: PNP, normally open (NO)
  • Electrical Wiring: DC 3-wire
  • Supply Voltage (Ub): 10 V DC to 30 V DC
  • Continuous Current (Ia): ≤ 400 mA
  • Voltage Drop: ≤ 1.8 V
  • Switching Frequency: 600 Hz
  • Hysteresis: 1% to 20%
  • Reproducibility: ≤ 5%
  • Temperature Drift (of Sr): ±10%
  • Short-Circuit Protection: Yes
  • Reverse Polarity Protection: Yes
  • Power-Up Pulse Protection: Yes
  • Connection Type: 2-meter, 3-wire PVC cable
  • Conductor Size: 0.34 mm²
  • Housing Material: Nickel-plated brass
  • Sensing Face Material: Plastic
  • Enclosure Rating: IP67 (according to EN 60529)
  • Ambient Operating Temperature: –25 °C to +70 °C
  • Shock and Vibration Resistance: 30 g, 11 ms / 10...55 Hz, 1 mm
  • Standards and Certifications: EMC according to EN 60947-5-2; IEC 61000-4-2 (Test level 2); IEC 61000-4-4 (Test level 3)
  • Reduction Factors: Stainless steel (V2A, 304): Approx. 0.77; Aluminum (Al): Approx. 0.4; Copper (Cu): Approx. 0.35; Brass (Ms): Approx. 0.5
  • Dimensions (L x D): 50 mm x 18 mm
  • Weight: 50 g

The IM18-08NPS-ZW1 is ideal for detecting metallic objects in industrial automation settings, offering reliable performance and easy installation.
