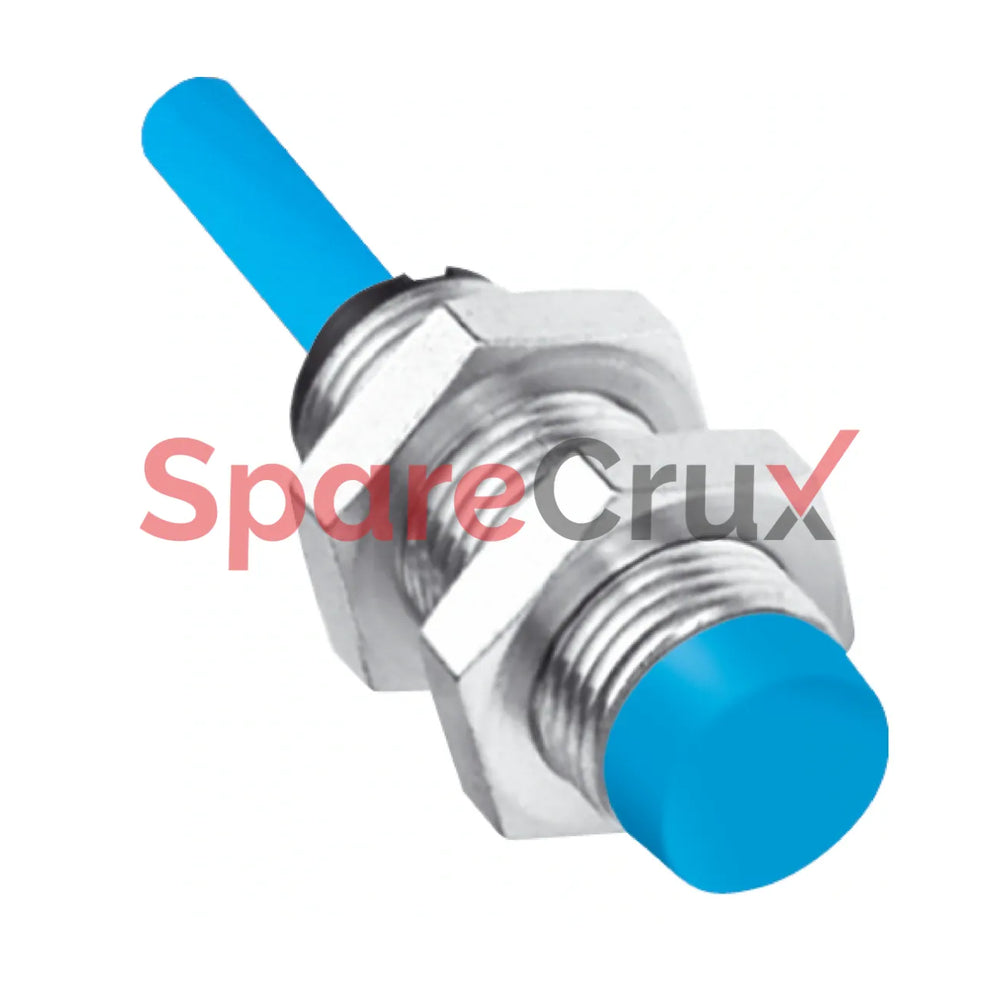

6021125 | SICK SENSORS | IM12-04N-N-ZW0 Inductive Proximity Sensor

₹ 3,432.80

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6021125

Original Equipment Manufacturer

SICK SENSORS

Description
Housing Metric
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 4 mm
Safe sensing range Sa 3.24 mm
Installation type Non-flush
Switching frequency 1,500 Hz
Connection type Cable, 2-wire, 2 m
Switching output NAMUR
Switching output detail NAMUR
Output function NC
Enclosure rating IP67 1)
Supply voltage 7.5 V DC ... 25 V DC 1)
Hysteresis 1 % ... 15 %
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-6
Current consumption, sensor is activated ≤ 1 mA
Current consumption, sensor is not activated ≥ 2.2 mA
Cable material PVC
Conductor size 0.34 mm²
Cable diameter Ø 4.9 mm
Cable resistance 50 Ω
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –20 °C ... +70 °C
Housing material Brass, nickel-plated
Sensing face material Plastic, PTB
Housing length 30 mm
Thread length 25 mm



SICK SENSORS 6021125 IM12-04N-N-ZW0 Inductive Proximity Sensor
