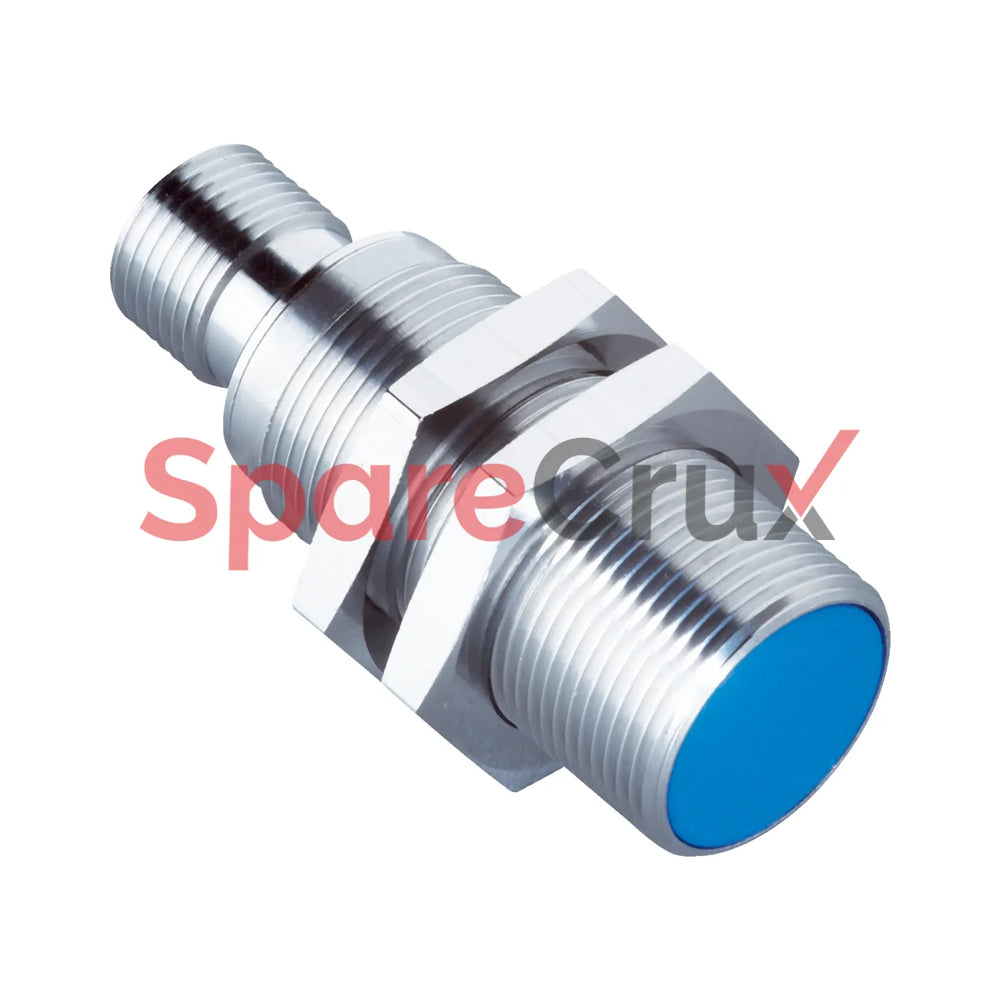

6041793 | SICK SENSORS | IMA18-10BE1ZC0K Inductive Proximity Sensors

₹ 14,054.40
Get Best Price on WhatsApp

Product Description
Housing Metric
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 0 mm ... 10 mm
Installation type Quasi-flush
Connection type Male connector M12, 4-pin
Output function Analog
Repeatability (Ta not constant) 0.3 mm 1) 2) 3)
Repeatability (Ta constant) ± 0.02 mm
Housing material Brass, chromium-plated
Sensing face material Plastic, PTB
Housing length 48.5 mm
Thread length 32 mm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6041793

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Metric

Thread size - M18 x 1

Diameter - Ø 18 mm

Sensing range (Sn) - 0 mm ... 10 mm

Installation type - Quasi-flush

Connection type - Male connector M12, 4-pin

Output function - Analog

Repeatability (Ta not constant) - 0.3 mm¹²³

Repeatability (Ta constant) - ± 0.02 mm

Resolution - ≤ 2 µm

Enclosure rating - IP67⁴

Supply voltage - 15 V DC ... 30 V DC

Ripple - ≤ 20 %¹

Time delay before availability - ≤ 50 ms

Temperature drift (of Sr) - ≤ 10 %

No load current - ≤ 12 mA²

Load current - ± 10 mA³

Output voltage - 0 V ... 10 V

Bandwidth - 500 Hz⁴

Short-circuit protection - ✔

Ambient operating temperature - –25 °C ... +70 °C⁵⁶

Housing material - Brass, chromium-plated

Sensing face material - Plastic, PTB

Housing length - 48.5 mm

Thread length - 32 mm

MTTFD - 88 years

DCavg - 0 %

TM (mission time) - 20 years

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

ECLASS 5.1.4 - 27270101

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101
