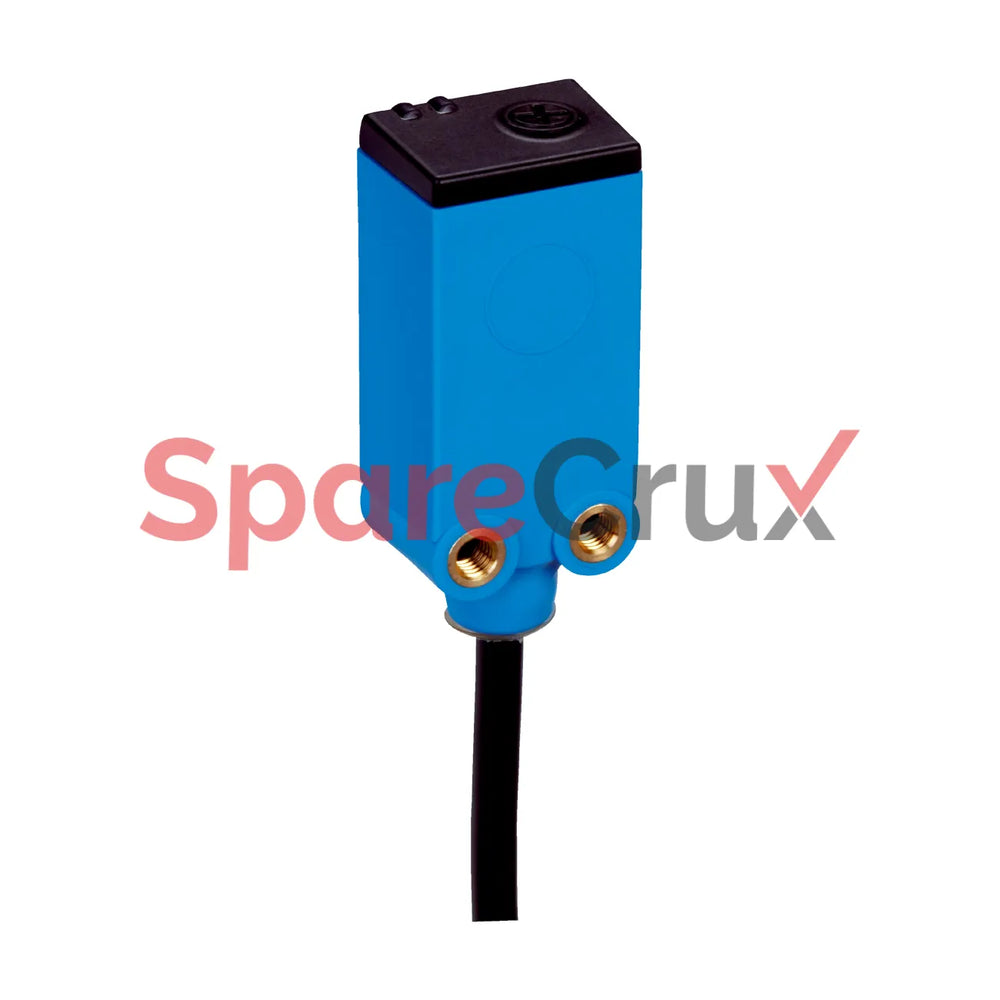

6051010 | SICK SENSORS | CQ4-08EPOKU1 Capacitive Proximity Sensors

₹ 12,047.40
Get Best Price on WhatsApp

Product Description
Housing Rectangular
Dimensions (W x H x D) 16 mm x 39.5 mm x 12 mm
Sensing range Sn

1 mm ... 8 mm 1)

1 mm ... 6 mm 2)
Safe sensing range Sa 5.76 mm
Installation type

Non-flush

Flush
Switching frequency 100 Hz
Connection type Cable, 3-wire, 2 m 3)
Switching output PNP
Switching output detail PNP
Output function NC
Supply voltage 10 V DC ... 30 V DC
Ripple ≤ 10 %
Voltage drop ≤ 2.5 V DC 1)
Current consumption 12 mA 2)
Time delay before availability ≤ 200 ms
Hysteresis 4 % ... 20 % 3)
Reproducibility

≤ 5 % 4)

 5)
Temperature drift (of Sr) ± 20 %
EMC According to EN 60947-5-2
Continuous current Ia ≤ 150 mA
Cable material PVC



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6051010

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Rectangular

Dimensions (W × H × D) - 16 mm × 39.5 mm × 12 mm

Sensing Range (Sn) - 1 mm ... 8 mm (Non-flush), 1 mm ... 6 mm (Flush)

Safe Sensing Range (Sa) - 5.76 mm

Installation Type - Non-flush / Flush

Switching Frequency - 100 Hz

Connection Type - Cable, 3-wire, 2 m

Switching Output - PNP

Switching Output Detail - PNP

Output Function - NC

Supply Voltage - 10 V DC ... 30 V DC

Ripple - ≤ 10%

Voltage Drop - ≤ 2.5 V DC

Current Consumption - 12 mA

Time Delay Before Availability - ≤ 200 ms

Hysteresis - 4% ... 20%

Reproducibility - ≤ 5%

Temperature Drift (of Sr) - ±20%

EMC - According to EN 60947-5-2

Continuous Current (Ia) - ≤ 150 mA

MTTFD - 1,344 years

DCavg - 0%

TM (Mission Time) - 20 years

EU Declaration of Conformity - ✔

UK Declaration of Conformity - ✔

Moroccan Declaration of Conformity - ✔

China RoHS - ✔

cULus Certificate - ✔

ECLASS 5.1.4 - 27270102

ECLASS 6.0 - 27270102

ECLASS 7.0 - 27270102

ECLASS 8.0 - 27270102

ECLASS 9.0 - 27270102

ECLASS 10.0 - 27270102

ECLASS 11.0 - 27270102

ECLASS 12.0 - 27274201

ECLASS 13.0 - 27274201
