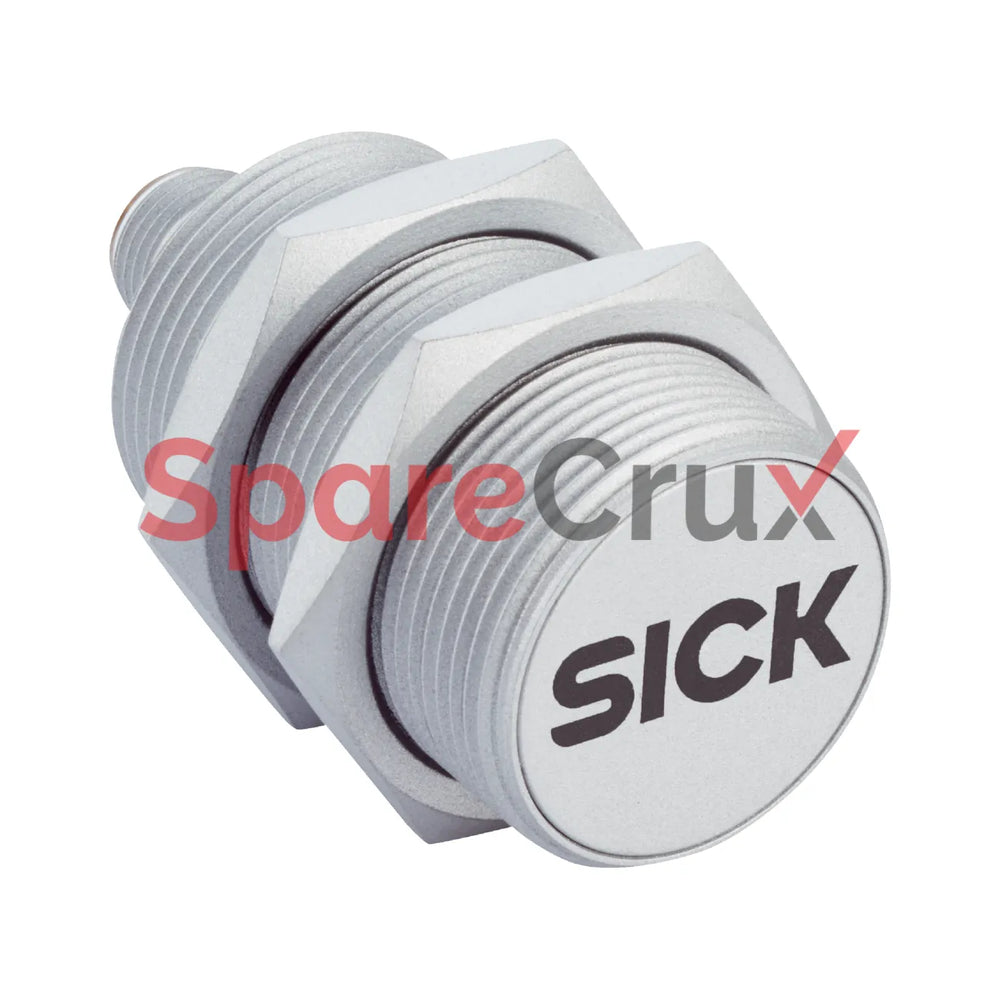

6069279 | SICK SENSORS | IMR30-15BPSTC0S Inductive Proximity Sensor

₹ 11,511.90
Get Best Price on WhatsApp

Product Description
Housing Metric
Housing Standard design
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 15 mm
Safe sensing range Sa 12.1 mm
Installation type Flush
Switching frequency 1,000 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Switching output detail PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP68
Housing material PTFE coating, brass
Sensing face material Plastic, PTFE coating
Housing length 62 mm
Thread length 46 mm
Tightening torque, max. Typ. 75 Nm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6069279

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Metric / Standard design

Thread size - M30 x 1.5

Diameter - Ø 30 mm

Sensing range Sn - 15 mm

Safe sensing range Sa - 12.1 mm

Installation type - Flush

Switching frequency - 1,000 Hz

Connection type - Male connector M12, 4-pin

Switching output - PNP

Switching output detail - PNP

Output function - NO

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 10 %

Voltage drop - ≤ 1.8 V

Hysteresis - 3 % ... 15 %

Reproducibility - ≤ 2 %

Temperature drift (of Sr) - ≤ ± 10 % … ≤ ± 15 %

Continuous current Ia - ≤ 200 mA

No load current - ≤ 15 mA

Off-state current - ≤ 0.1 mA

Short-circuit protection - ✔

Magnetic field strength - ≤ 100 mT

MTTFD - 139 years

DCavg - 0 %

TM (mission time) - 20 years

EU declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

ECLASS 5.1.4 - 27270101

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101

ECLASS 12.0 - 27274001
