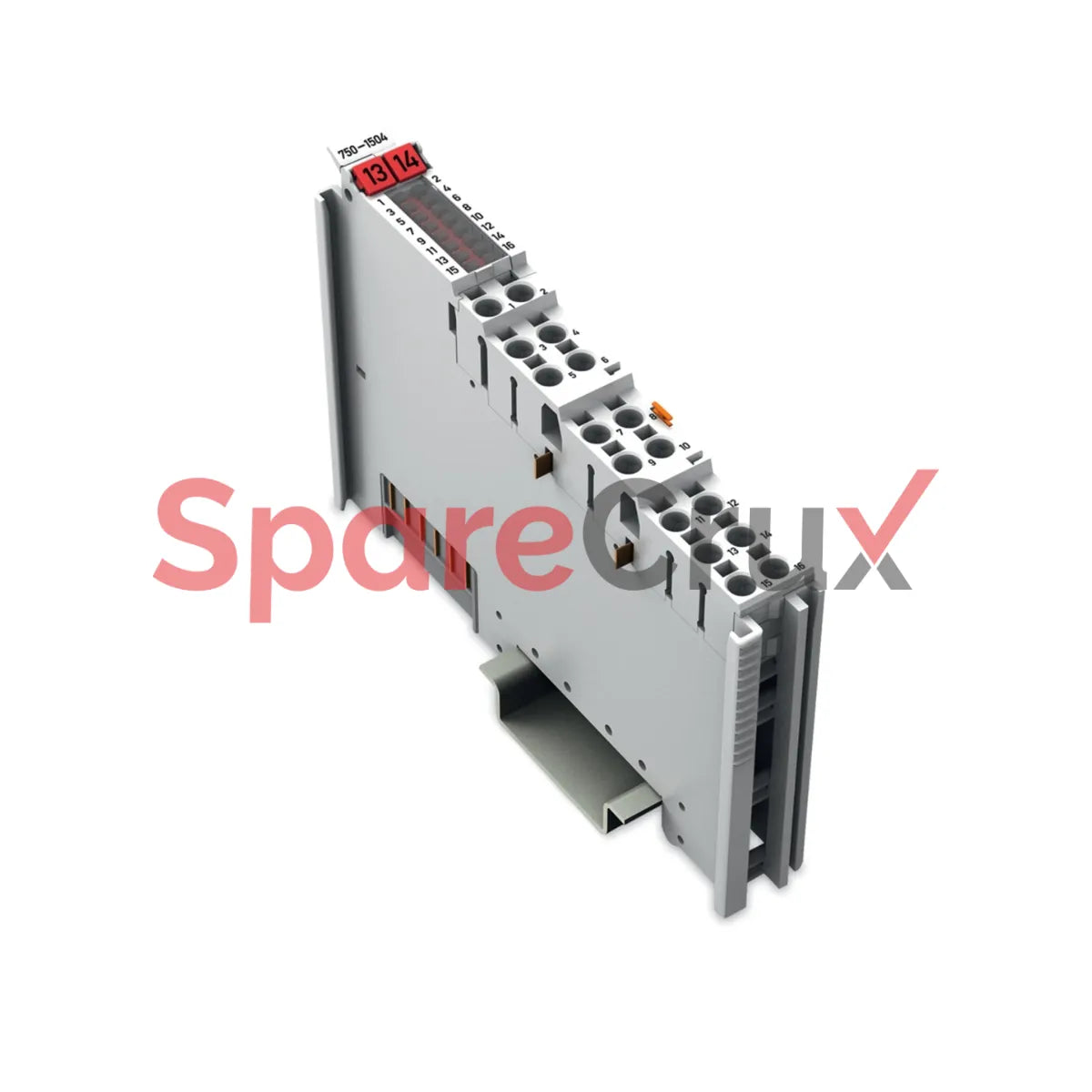

750-1504 | WAGO | 16-Channel Digital Output Module, 24 VDC, 0.5 A

₹ 29,531.27

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

750-1504

Original Equipment Manufacturer

WAGO

Description
Attribute Value
Number of digital outputs 16
Total number of channels (module) 16
Signal type Digital
Signal type (voltage) 24 VDC
Actuator connection 16 x (1-wire)
Output characteristic High-side switching
Output current per channel 0.5 A
Output current Short-circuit-protected
Load type Resistive, inductive, lamp load
Switching frequency (max.) 1 kHz
Connection technology: I/O 16 x Push-in CAGE CLAMP® (outputs)
Connectable conductor materials Copper
Connection type Output
Solid conductor 0.08 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor 0.25 … 1.5 mm² / 22 … 16 AWG
Strip length 8 … 9 mm / 0.31 … 0.35 inches
Width 12 mm / 0.472 inches
Height 100 mm / 3.937 inches
Depth 69 mm / 2.717 inches
Depth from upper-edge of DIN-rail 61.8 mm / 2.433 inches
Color Light gray
Housing material Polycarbonate; polyamide 6.6
Fire load 0.881 MJ
Weight 50 g
Conformity marking CE
