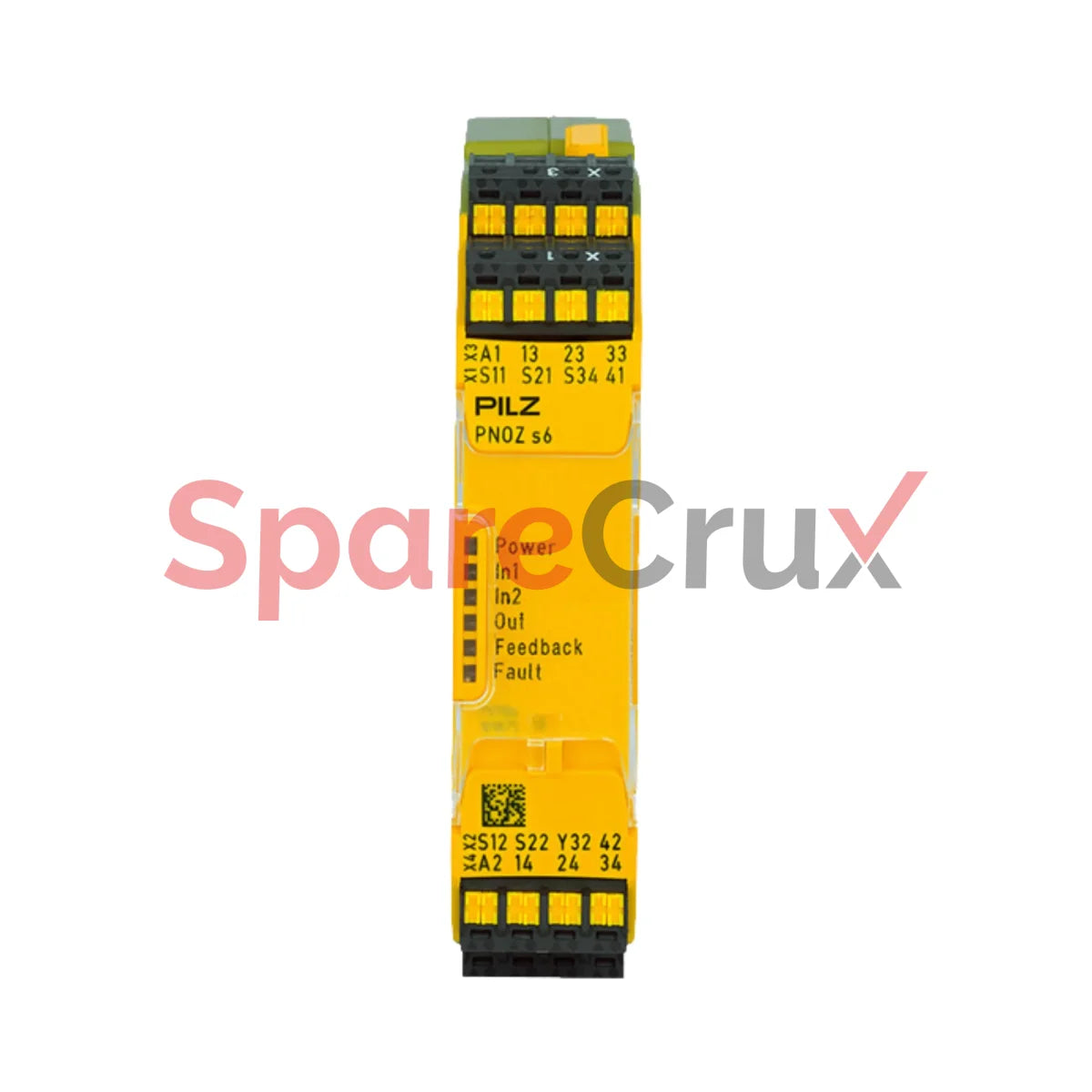

751106 | PILZ | PNOZ s6 C 24VDC 3 n/o 1 n/c

₹ 39,122.40

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

751106

Original Equipment Manufacturer

PILZ

Description

The Pilz 751106 PNOZ s6 C is a high-performance safety relay with 3 Normally Open (n/o) contacts and 1 Normally Closed (n/c) contact, designed for industrial automation systems. Operating on 24V DC, it provides quick and secure monitoring for emergency stop circuits, safety gates, and other safety-critical applications.

Key Features:

  • 3 Normally Open (n/o) contacts and 1 Normally Closed (n/c) contact
  • 24V DC operation for efficient safety monitoring
  • Fast and reliable for critical safety functions
  • Compliant with CE, UL, and TÜV safety standards
  • Suitable for a wide range of industrial and automation applications

Applications:

  • Emergency stop systems
  • Safety gate control
  • Automation and industrial machinery safety
Technical Specifications:
Product Type: Safety Relay
Model: 751106
Supply Voltage: 24V DC
Contacts: 3 Normally Open (n/o) contacts, 1 Normally Closed (n/c) contact
Inputs: For emergency stops, safety gates, etc.
Outputs: Relay outputs (3 n/o, 1 n/c)
Housing Material: Plastic (IP20 rated)
Mounting Type: DIN rail mounting
Dimensions (W x H x D): 90 x 22.5 x 120 mm
Operating Temperature: -10°C to +55°C
Operating Humidity: 95% RH (non-condensing)
Certification: CE, UL, TÜV
PILZ

751106 | PILZ | PNOZ s6 C 24VDC 3 n/o 1 n/c

₹ 39,122.40

The Pilz 751106 PNOZ s6 C is a high-performance safety relay with 3 Normally Open (n/o) contacts and 1 Normally Closed (n/c) contact, designed for industrial automation systems. Operating on 24V DC, it provides quick and secure monitoring for emergency stop circuits, safety gates, and other safety-critical applications.

Key Features:

Applications:

Technical Specifications:
Product Type: Safety Relay
Model: 751106
Supply Voltage: 24V DC
Contacts: 3 Normally Open (n/o) contacts, 1 Normally Closed (n/c) contact
Inputs: For emergency stops, safety gates, etc.
Outputs: Relay outputs (3 n/o, 1 n/c)
Housing Material: Plastic (IP20 rated)
Mounting Type: DIN rail mounting
Dimensions (W x H x D): 90 x 22.5 x 120 mm
Operating Temperature: -10°C to +55°C
Operating Humidity: 95% RH (non-condensing)
Certification: CE, UL, TÜV
