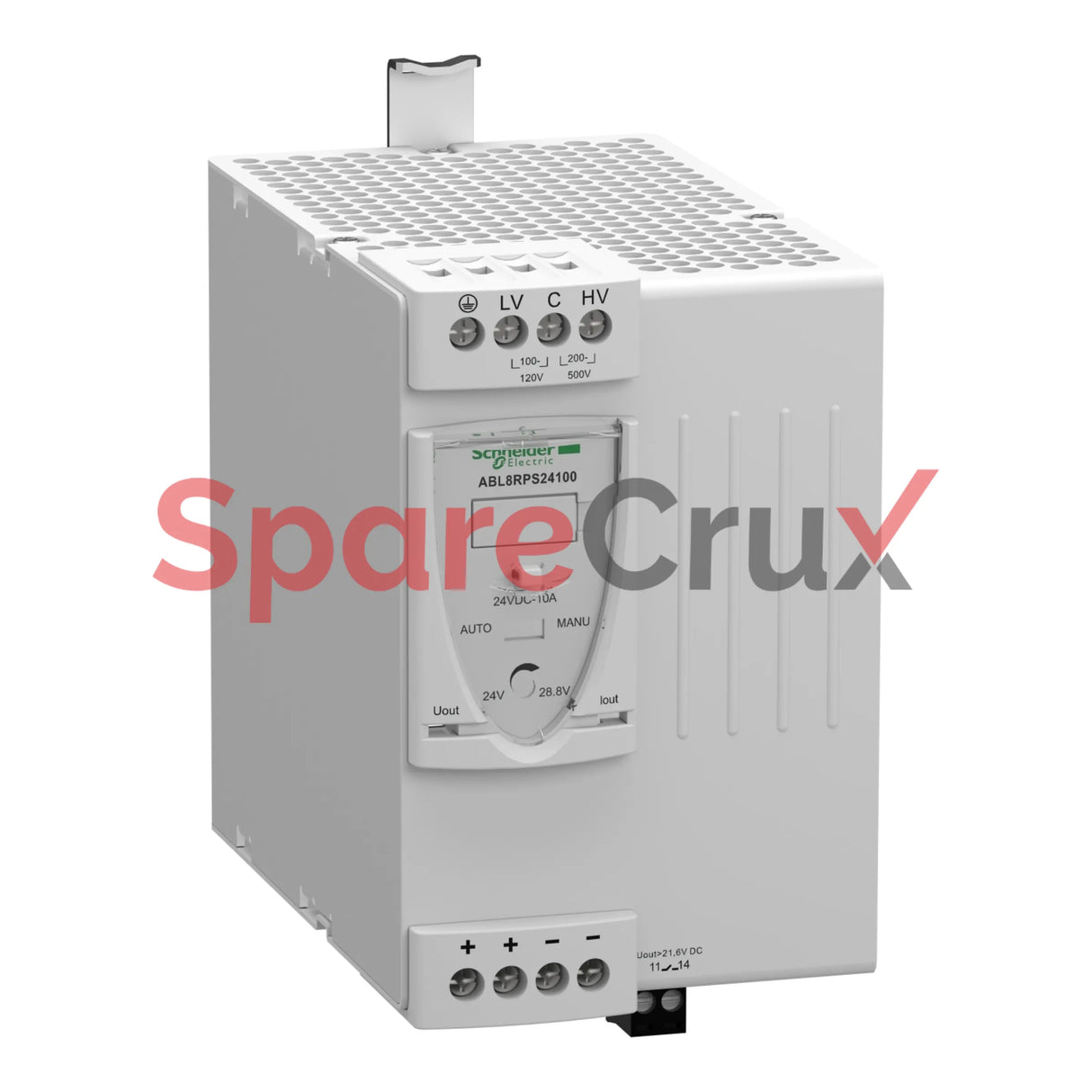

ABL8RPS24100 | SCHNEIDER ELECTRIC | Phaseo Regulated Switch Mode Power Supply, 24 V DC, 10 A, DIN Rail Mounting

₹ 22,602.40

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

ABL8RPS24100

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description
Range of product Modicon Power Supply
Product or component type Power supply
Power supply type Regulated switch mode
Nominal input voltage 100...120 V AC single phase, terminal(s): N-L1, 200...500 V AC phase to phase, terminal(s): L1-L2
Rated power in W 240 W
Output voltage 24 V DC
Power supply output current 10 A
Permissible temporary current boost 1.5 x In (for 4 s)
Anti-harmonic filter Low frequency harmonic currents
Input voltage limits 170...550 V AC, 85...132 V AC
Inrush current 30 A
Power factor 0.68 at 240 V AC, 0.69 at 120 V AC
Efficiency 87 %
Output voltage adjustment 24...28.8 V adjustable
Power dissipation in W 31 W
Depth 145 mm
Height 125 mm
Width 86 mm
Net weight 1 kg
Output coupling Parallel, Series
Marking CE
