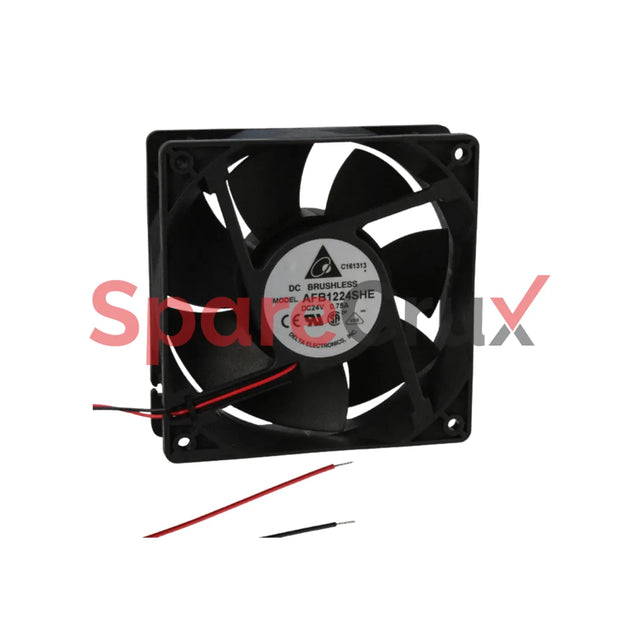

AFB1224SHE | DELTA ELECTRONICS | DC Fans DC Tubeaxial Fan, 120x38mm, 24VDC, Ball Bearing, Lead Wires

₹ 2,058.65

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

AFB1224SHE

Original Equipment Manufacturer

DELTA ELECTRONICS

Description

Attribute Details
Size / Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 151.9 CFM (4.25m³/min)
Static Pressure 0.571 in H2O (142.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 53.0 dB(A)
Power (Watts) 12 W
RPM 3700 RPM
Termination 2 Wire Leads
Operating Temperature 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.565 lb (256.28 g)
Current Rating (Amps) 0.500A
Voltage Range 7 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
