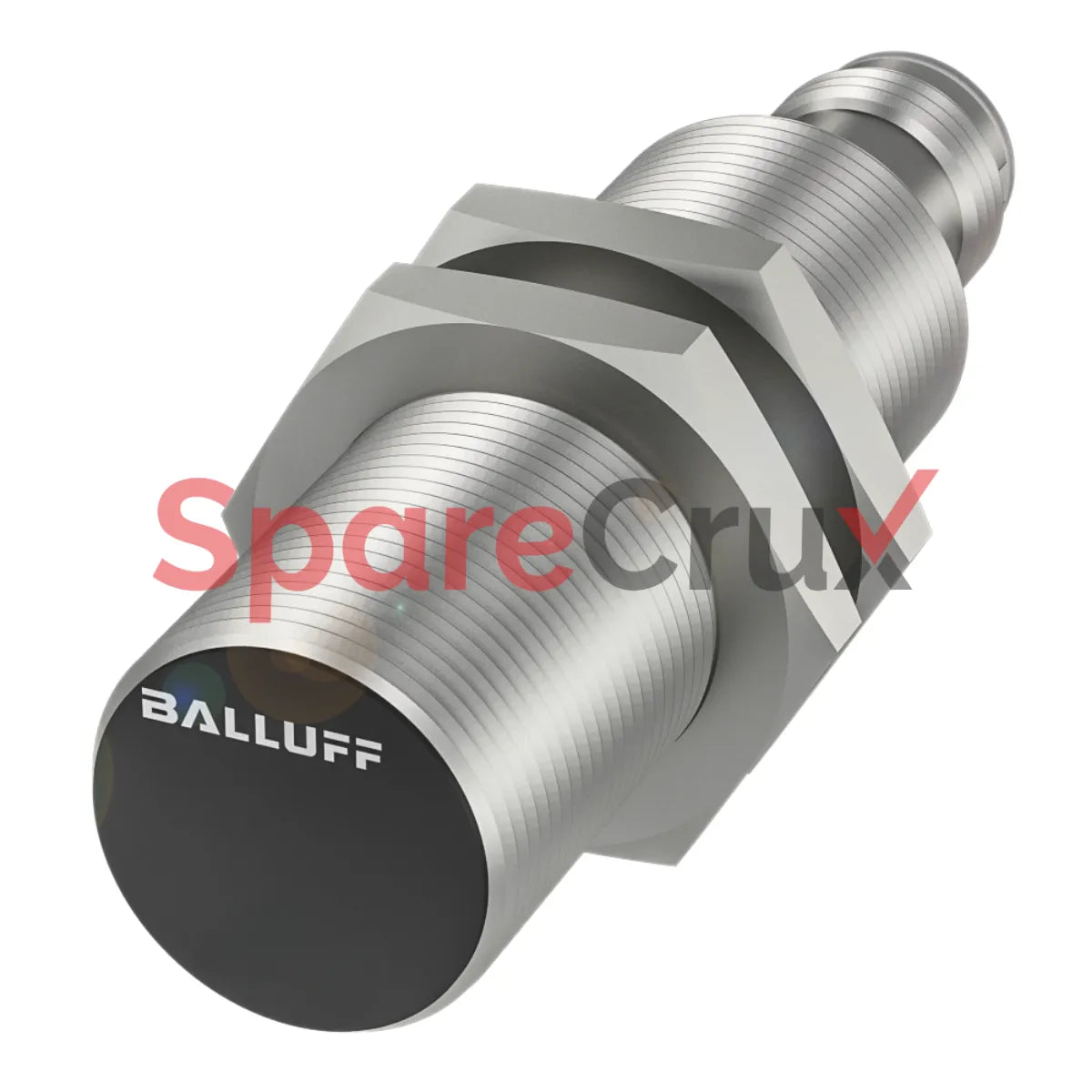

BES0087 | BALLUFF | Inductive Proximity Sensor – M18 Flush, 5mm Range, PNP NO Output

₹ 4,275.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

BES0087

Original Equipment Manufacturer

BALLUFF

Description
Order Code / Model BES0087 / BES M18MI‑PSC50B‑S04K
Sensor Type Inductive Proximity Sensor (flush mounting)
Housing/Thread Size M18 × 1, Ø 18 × 65 mm
Sensing Range (Sn) 5 mm (±10 %)
Assured Operating Distance (Sa) ≈ 4 mm
Repeat Accuracy ≤ 5 % of Sr
Hysteresis ≤ 15 % of Sr
Switching Output PNP, Normally Open (NO)
Rated Operating Current 200 mA
No-load Current ≤ 15 mA (damped), ≤ 6 mA (undamped)
Off-state Current ≤ 20 µA
Operating Voltage 12…30 V DC
Switching Frequency Up to 700 Hz
Voltage Drop (Ud) ≤ 2.5 V
Protection Features Short‑circuit, polarity reversal
Connection M12 × 1, 4‑pin male connector (A‑code)
Material Housing Nickel‑plated brass
Sensing Surface PA 12 plastic
Ambient Temperature −25 °C … +70 °C
Protection Rating IP68 (flush mounting)
Function Indicator Yes (LED)
Ready Delay (tₙ) ≤ 30 ms
MTTF (40 °C) ~ 710 years
Compliance / Standards IEC 60947‑5‑2; CE, cULus, EAC, WEEE
Tightening Torque Max. 35 Nm
