SPARECRUX is NOT an authorized distributor for BUSSMANN

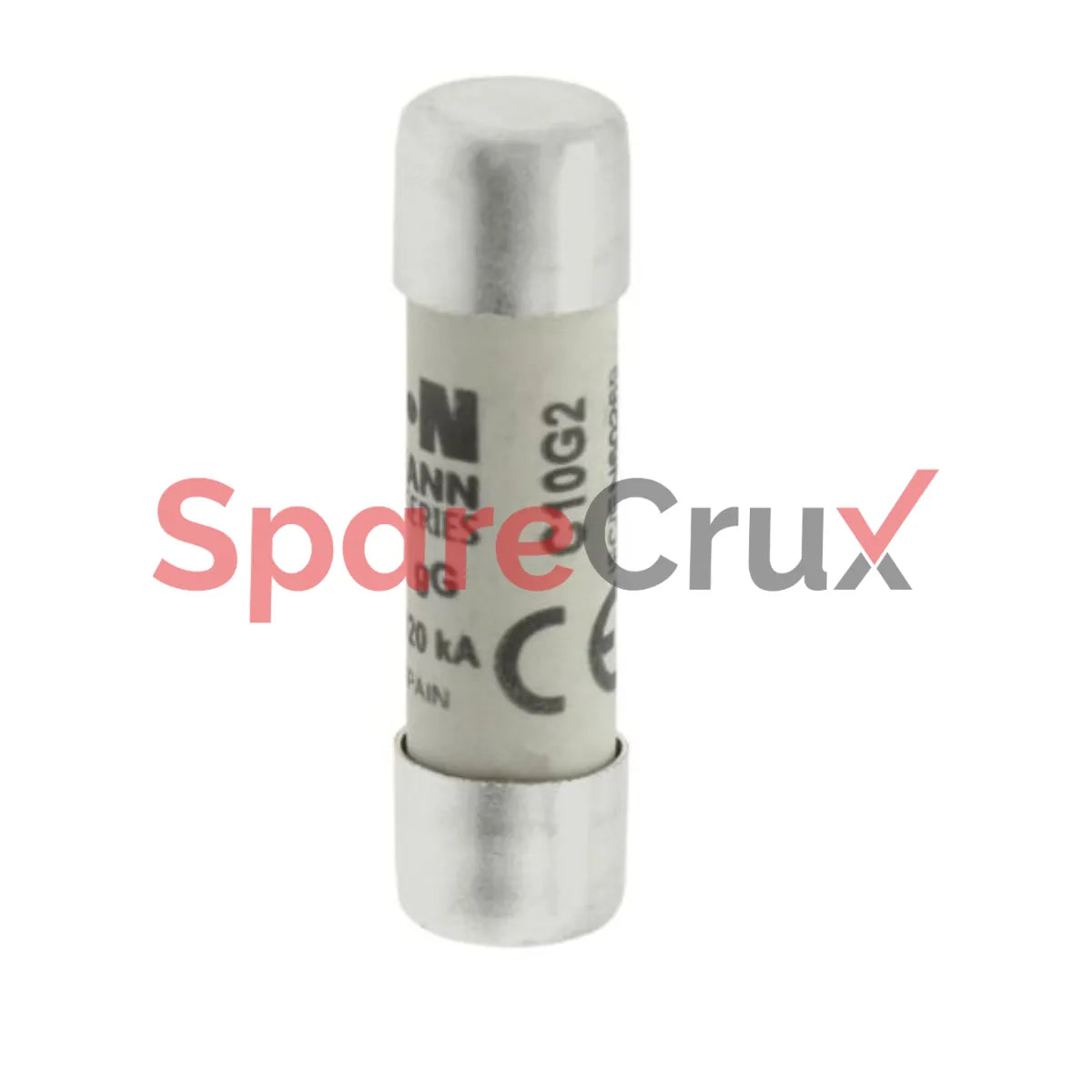

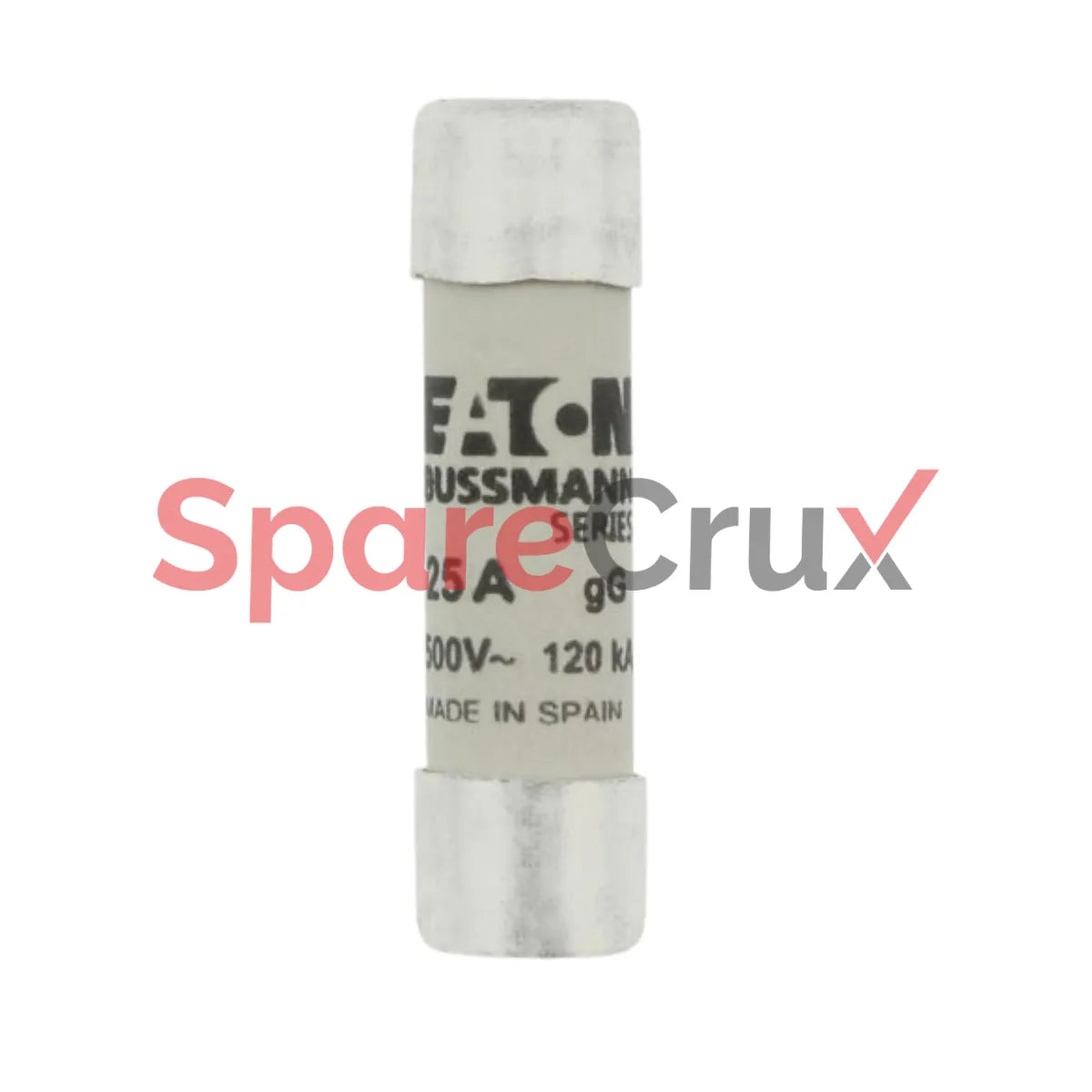

C10G25 | BUSSMANN | FUSE 25A

₹ 2,644.80

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

C10G25

Original Equipment Manufacturer

BUSSMANN

Description

Specification Details
Product Name Eaton Bussmann series low voltage cylindrical fuse
Catalog Number C10G25
Model Code CYLINDRICAL FUSE 10 x 38 25A GG 500V AC
UPC 051712754309
EAN 5027590493499
Product Length/Depth 38 mm
Product Height 10 mm
Product Width 10 mm
Product Weight 8.2 g
Warranty 1 year limited
Compliances CE Marked, GoST-R, RoHS Compliant
Certifications IEC 60269
Global Catalog C10G25
Amperage Rating 25 A
Fuse Size 10 x 38 mm
Current Type AC
Breaking Capacity 120 kA
Frequency Rating 45 Hz to 62 Hz
Rated Voltage AC 500 V
Class Class C gL/gG
Fuse Type C10G
Utilization Category gG (cable protection/equipment protection)
Fuse Indicator Other
Watt Losses 2.6 W
Connection Ferrule end x ferrule end
Construction Size 10 mm x 38 mm
Fuse Shape Cylindrical
Voltage Type AC
Suitable for CHM Modular fuse holder
Material Ceramic
Release Characteristic Other
Quantity 10
Voltage Rating 500 V
Type Fuse
Application For industrial applications, for general purpose use
