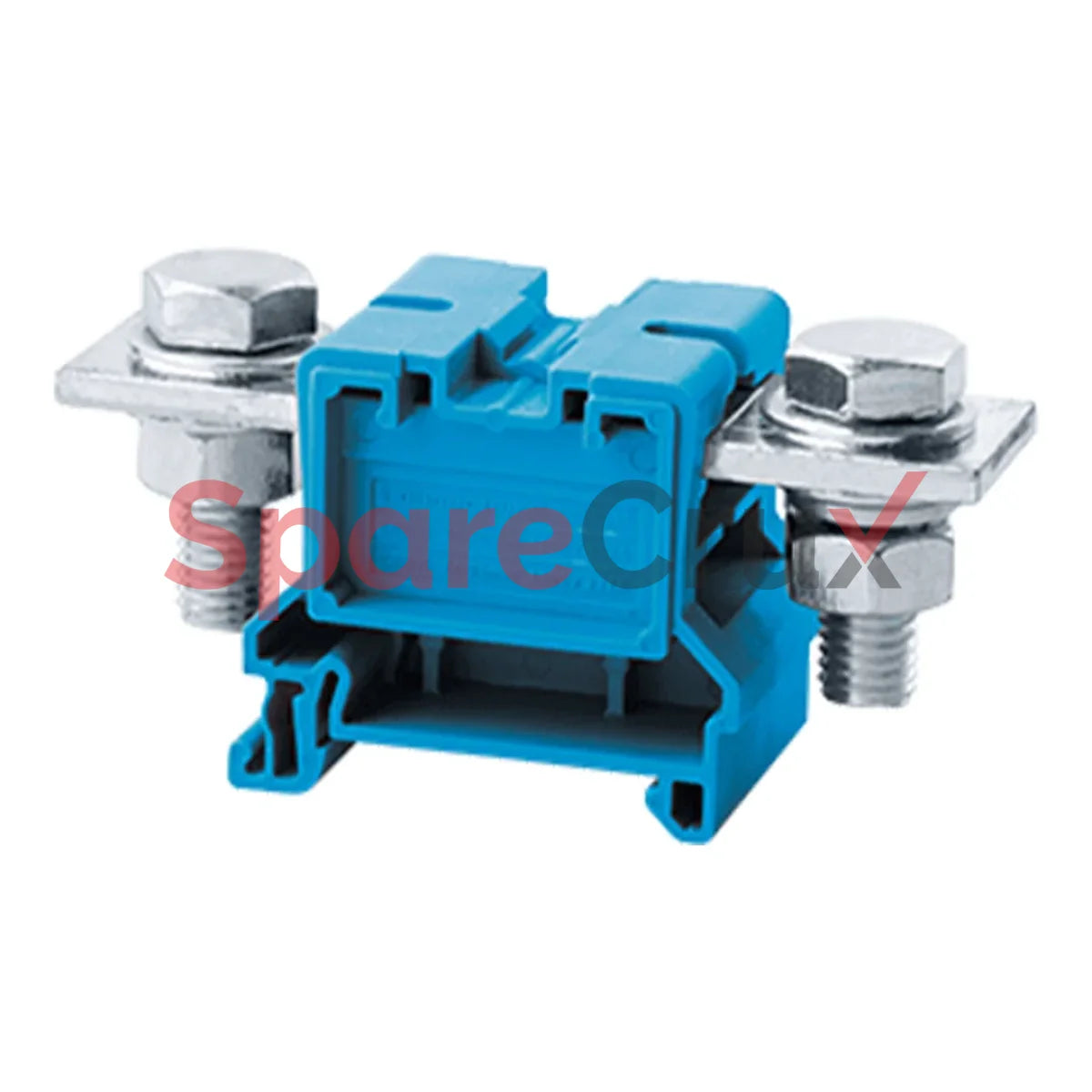

CBB95BU | CONNECTWELL | 95 sq.mm Feed Through Bolt/Nut Type Terminal Block In Blue Colour
₹ 277.20
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CBB95BU | CONNECTWELL | 95 sq.mm Feed Through Bolt/Nut Type Termina...
Manufacturer Part Number (MPN)
CBB95BU
Original Equipment Manufacturer
CONNECTWELL
Description
Description
CBB series terminal blocks are preferred for application using wires of large cross section. The wire is crimped to a ring / fork lug and is screwed on to the flat current bar of the terminal block.
Technical Data
| Rated Voltage | 1000 V |
| Rated Current | 232 A |
| Tightening Torque | 10 Nm |
| Housing Material | Polyamide |
| Product Function | Feed Through |
| Wire Entry Orientation | Side |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Stud Size | M10 |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
