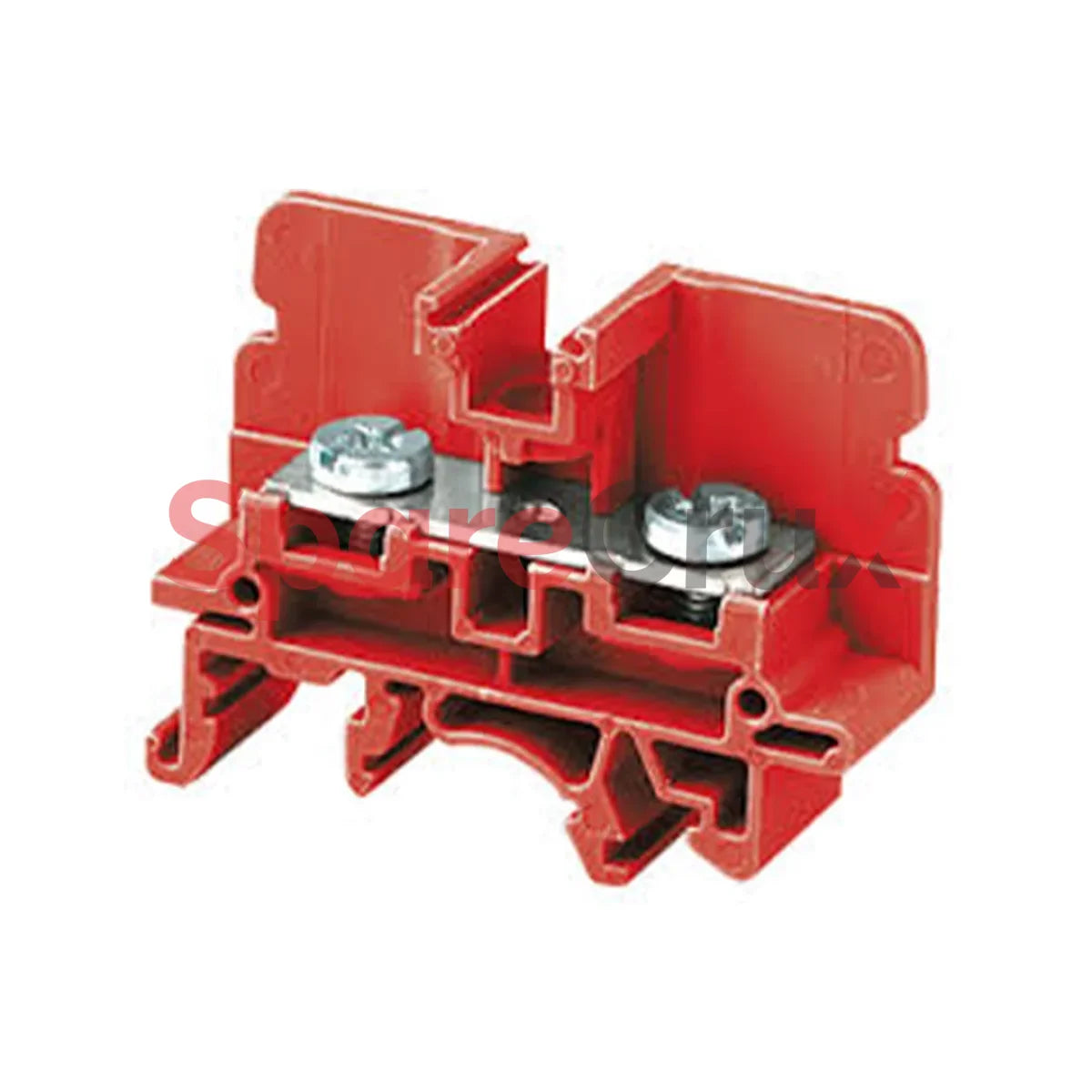

CBS3UR | CONNECTWELL | 6 sq.mm Stud Type Terminal Block in Red Colour
₹ 22.16
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CBS3UR | CONNECTWELL | 6 sq.mm Stud Type Terminal Block in Red Colour
Manufacturer Part Number (MPN)
CBS3UR
Original Equipment Manufacturer
CONNECTWELL
Description
Description
This terminal block is preferred for applications where the connections are subjected to severe vibrations.
The wire is crimped to a ring / fork type lug (ferrule) and is screwed on to the flat current bar on the Terminal Block. cross connection can be achieved with the aid of internal shorting links.
It is recommended to use Protective Covers in transparent plastic to fully shroud these assemblies. Wiring can be done with the help of screw driver as well as nut driver.
Technical Data
| Rated Voltage | 1000 V |
| Rated Current | 41 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Product Function | Feed Through |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
