SPARECRUX is NOT an authorized distributor for ELMEX

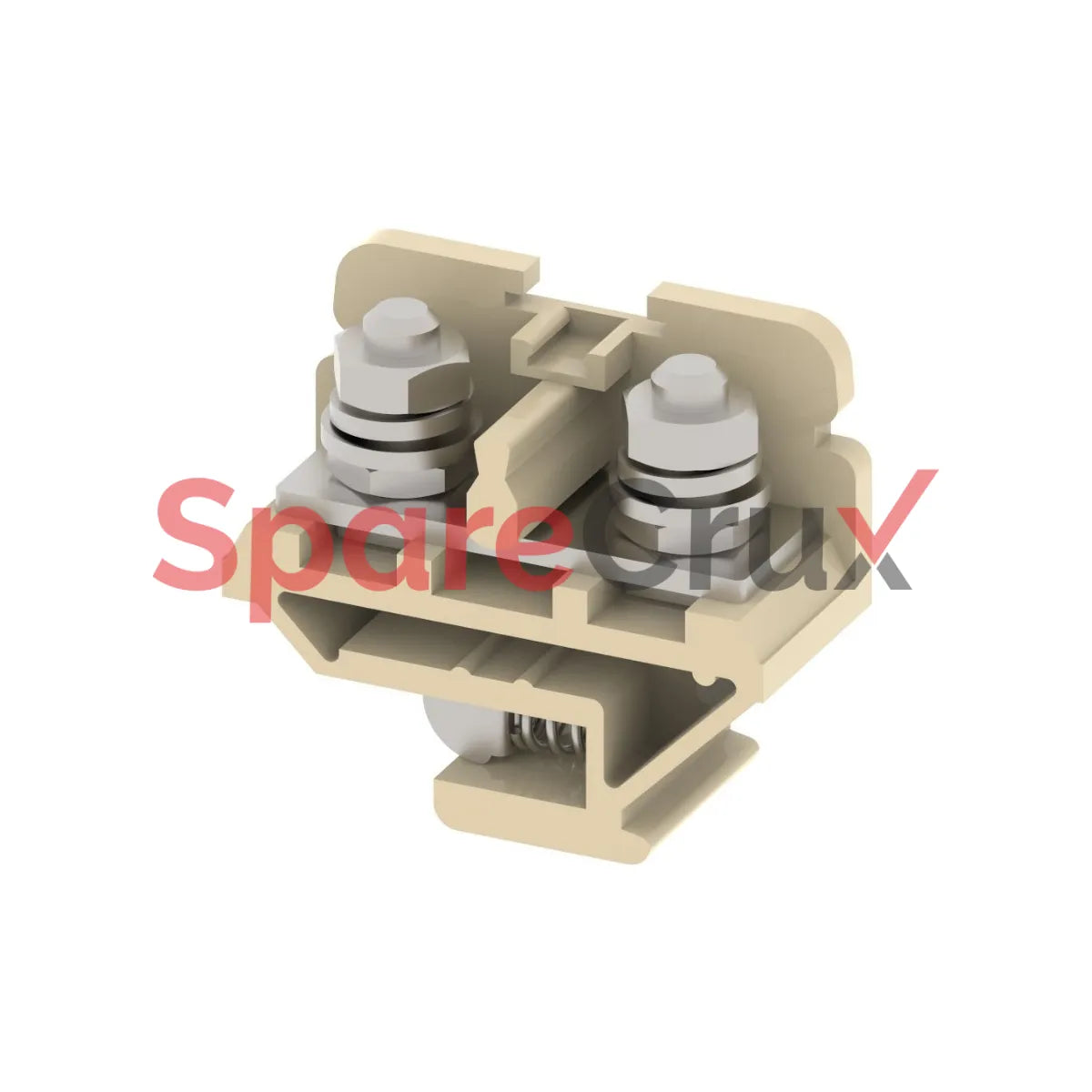

CBT M6 | ELMEX | Panel Terminal Connector

₹ 1,140.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

CBT M6

Original Equipment Manufacturer

ELMEX

Description

Type Stud Type Terminal Connector
Mounting Type Panel Mount
Material Melamine Housing with CRCA Clamping Material
Color Options Khaki
Nominal Voltage 1100 V
Nominal Current 125 A
Torque 2.5 Nm
Wire Size 6 mm² to 35 mm² (both stranded and solid wires)
Short-time Current 4.2 kA
Rated Surge Voltage 8 kV
Width 20 mm
Length 46 mm
Height 40 mm
ELMEX

CBT M6 | ELMEX | Panel Terminal Connector

₹ 1,140.00
Type Stud Type Terminal Connector
Mounting Type Panel Mount
Material Melamine Housing with CRCA Clamping Material
Color Options Khaki
Nominal Voltage 1100 V
Nominal Current 125 A
Torque 2.5 Nm
Wire Size 6 mm² to 35 mm² (both stranded and solid wires)
Short-time Current 4.2 kA
Rated Surge Voltage 8 kV
Width 20 mm
Length 46 mm
Height 40 mm
View product
