SPARECRUX is NOT an authorized distributor for DANFOSS

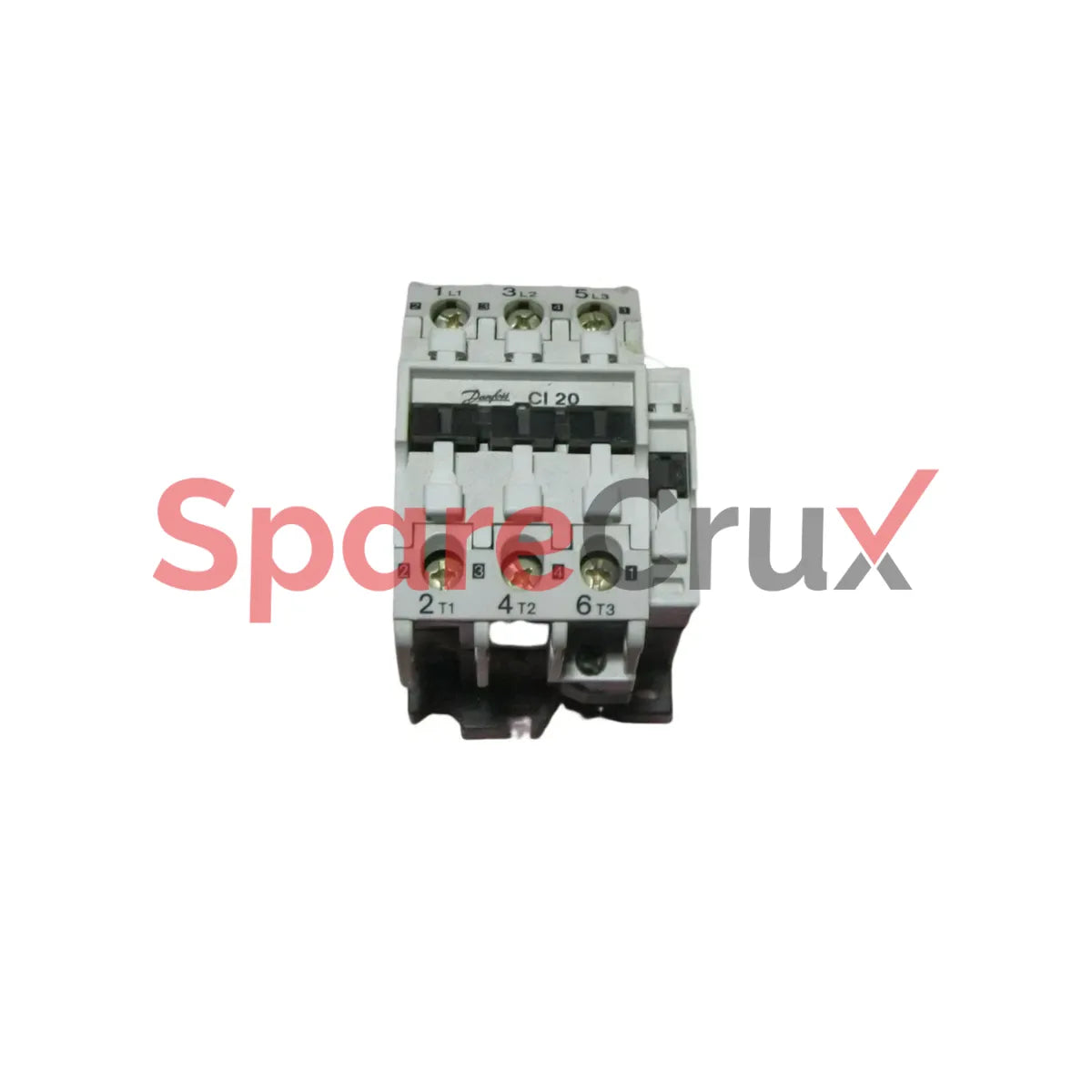

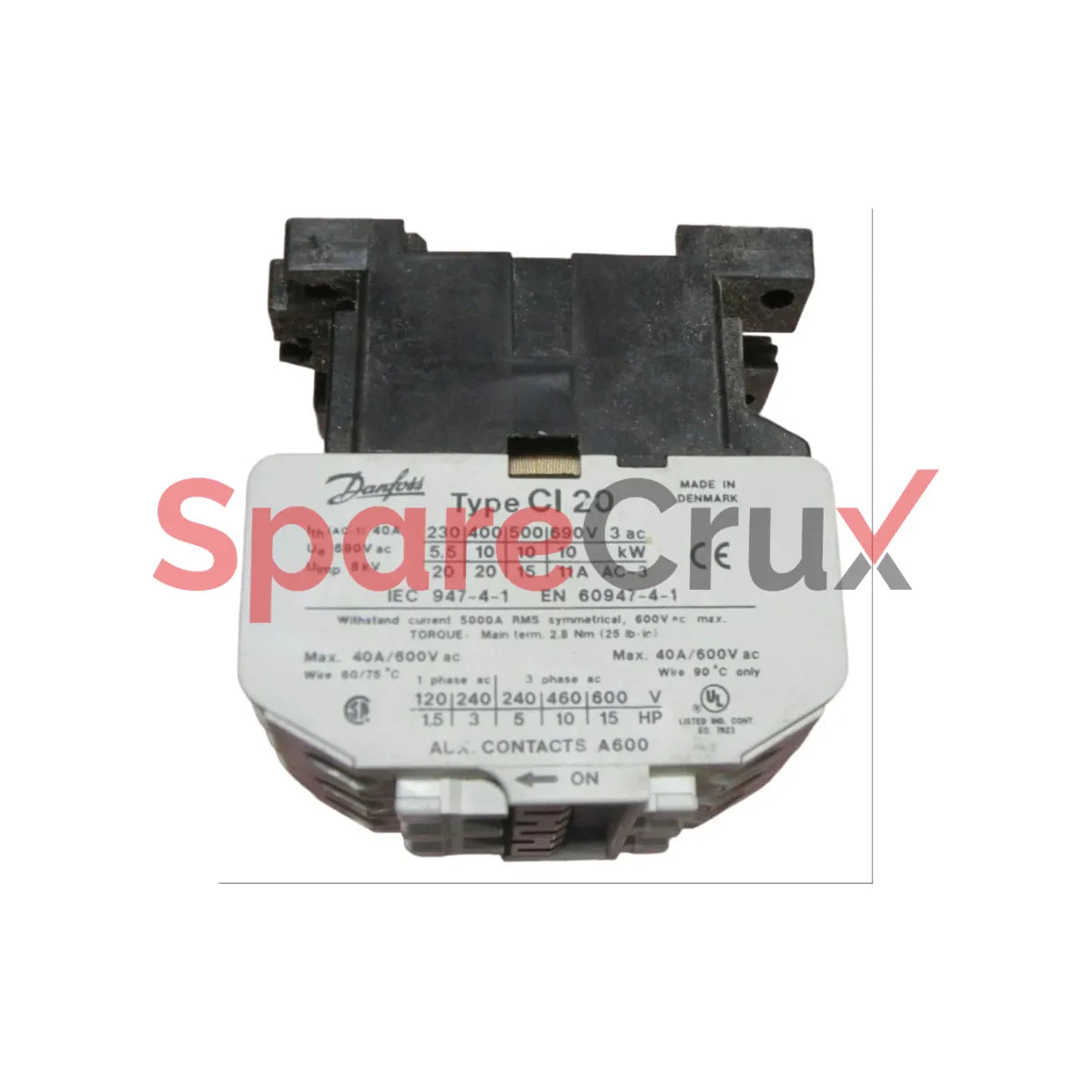

CI 20 | DANFOSS | Contactor 230V AC

₹ 950.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

CI 20

Original Equipment Manufacturer

DANFOSS

Description
Specification Details
Type / Model Danfoss CI 20 contactor (e.g., 037H004531)
Main Contacts 3 NO (normally open)
Max Operating Current (AC‑1 Ith) 40 A (open air)
Enclosed Current (AC‑1 Ithe) 25 A
Rated Current (AC‑3 Ie) 20 A
AC‑3 Rated Power @ 220‑240 V 5.5 kW
AC‑3 Rated Power @ 380‑690 V 10 kW
Coil Voltage (50 Hz) 220–240 V (range)
Control Voltage Variants 24 V AC, 110–120 V, 220–240 V, 380–400 V, etc.
Switching Capacity 10 kW
Rated Insulation Voltage 690 V AC
DANFOSS

CI 20 | DANFOSS | Contactor 230V AC

₹ 950.00
Specification Details
Type / Model Danfoss CI 20 contactor (e.g., 037H004531)
Main Contacts 3 NO (normally open)
Max Operating Current (AC‑1 Ith) 40 A (open air)
Enclosed Current (AC‑1 Ithe) 25 A
Rated Current (AC‑3 Ie) 20 A
AC‑3 Rated Power @ 220‑240 V 5.5 kW
AC‑3 Rated Power @ 380‑690 V 10 kW
Coil Voltage (50 Hz) 220–240 V (range)
Control Voltage Variants 24 V AC, 110–120 V, 220–240 V, 380–400 V, etc.
Switching Capacity 10 kW
Rated Insulation Voltage 690 V AC
