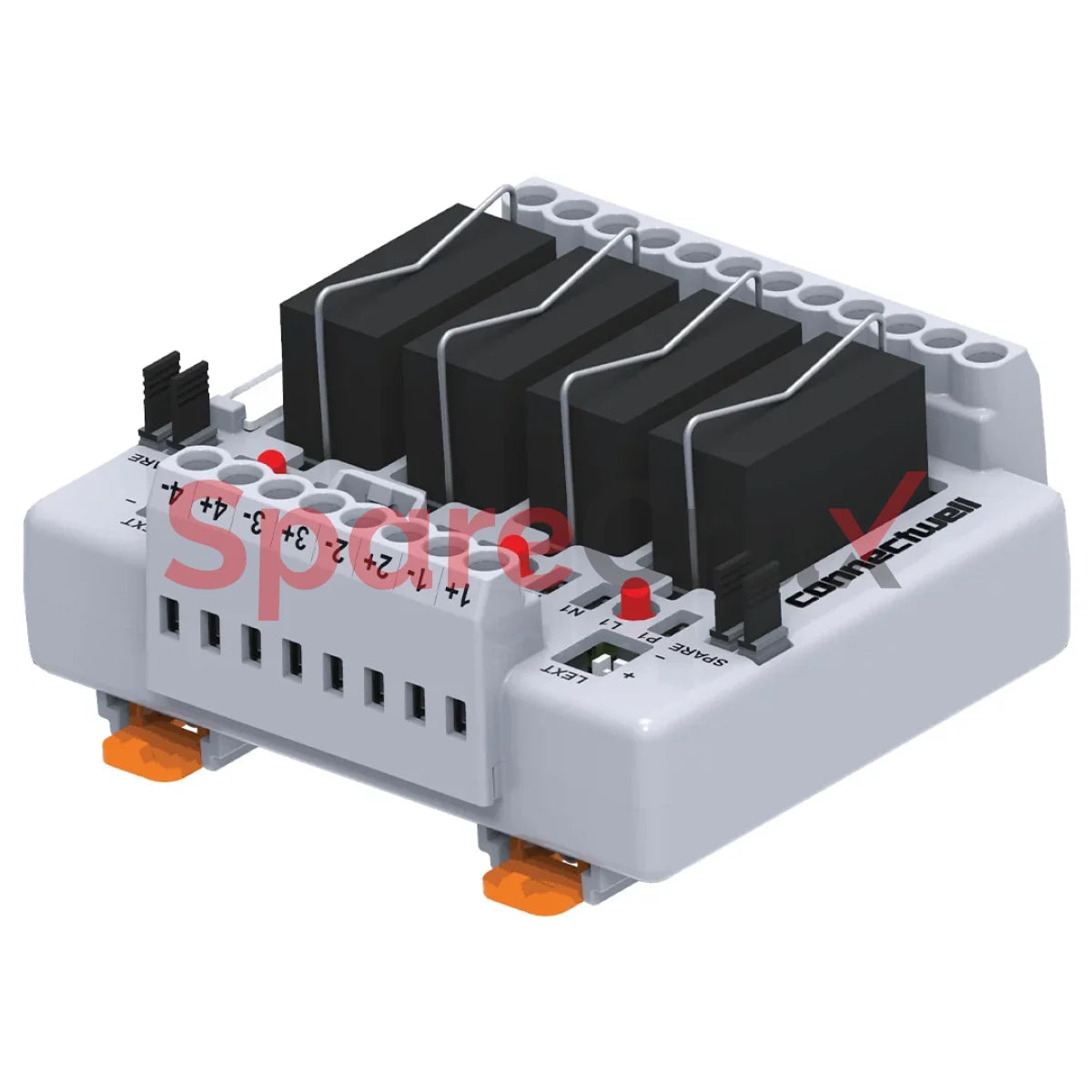

CIMRE1SS4/24A/OM | CONNECTWELL | 1CO 4CH 24VAC CW Relay Module With Base (Pluggable Relay) Rail Mount
₹ 1,788.00
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CIMRE1SS4/24A/OM | CONNECTWELL | 1CO 4CH 24VAC CW Relay Module With...
Manufacturer Part Number (MPN)
CIMRE1SS4/24A/OM
Original Equipment Manufacturer
CONNECTWELL
Description
Description
Fully-enclosed IP20 rated design
Custom configurations up to 32 channels
Long Tail Jumpers.
Ergonomic for wiring ease
High quality standards and approvals
Long-life laser marking
Additional all-axis marking provision
Over voltage category: III
Pollution degree :2
Option to select Pluggable/Soldered Relays
Standard and reverse type marking option available.
Low Coil Drive Current (4.7 mA to 100 mA).
LED indication to denote relay actuation.
Freewheeling diode across relay coil.
Technical Data
| Bussing Possibility | By using spare jumpers.***** |
| Supply Voltage Indication | 3mm Red LED |
| Relay Protection Method | Using 1N4007 Free Wheeling Diode |
| Ambient Operating Temperature | -20 to 50 °C |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Housing Material | PC |
| Housing Colour | Grey |
| Rated Input voltage | 24 VAC |
| Rated output Current/channel | 10 A |
