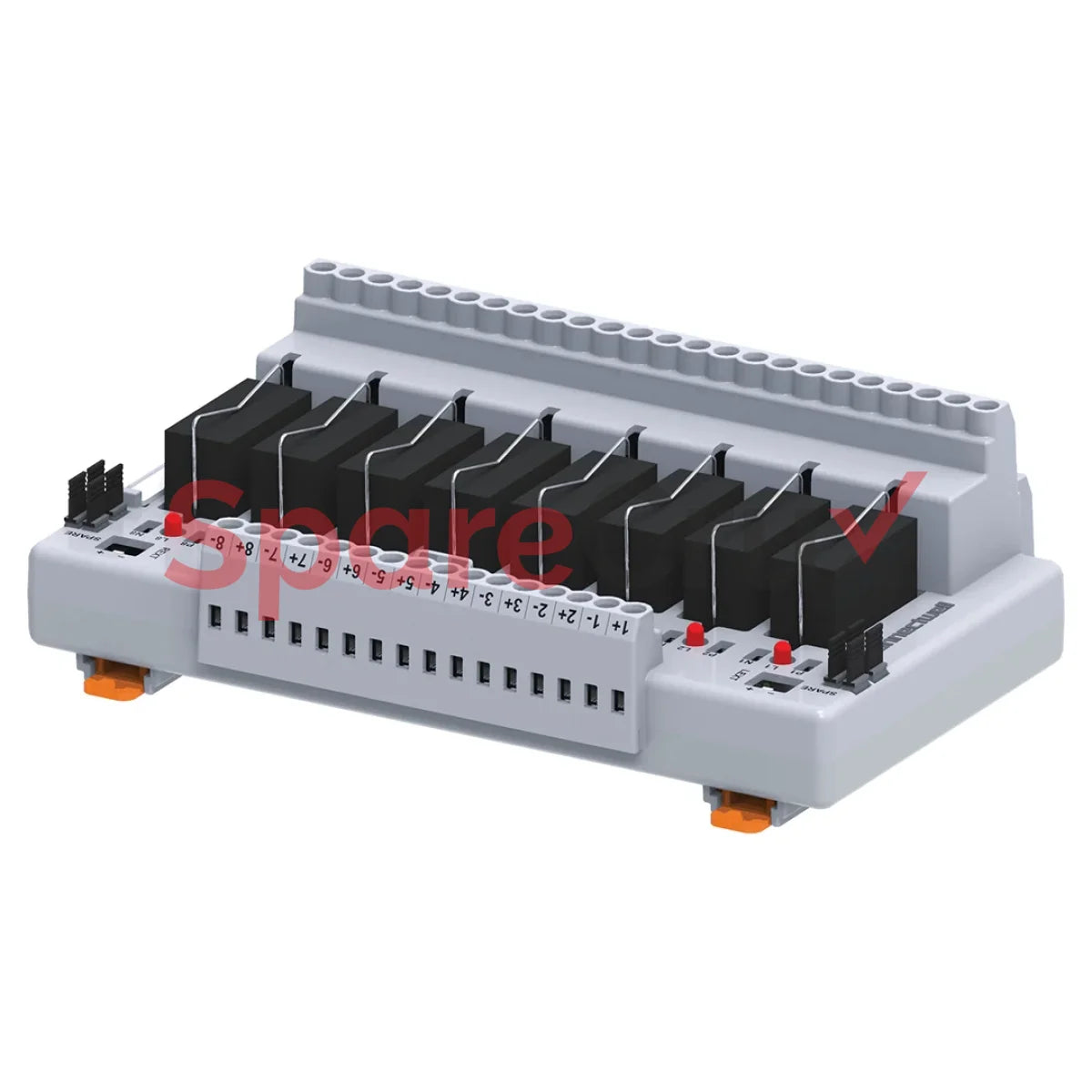

CIMRE2SS8/230A/OM | CONNECTWELL | 2CO 8CH 230VAC CW Relay Module With Base (Pluggable Relay) Rail Mount
₹ 3,484.80
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CIMRE2SS8/230A/OM | CONNECTWELL | 2CO 8CH 230VAC CW Relay Module Wi...
₹ 3,484.80
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
CIMRE2SS8/230A/OM
Original Equipment Manufacturer
CONNECTWELL
Description
Description
- Fully-enclosed IP20 rated design
- Custom configurations up to 32 channels
- Long Tail Jumpers.
- Ergonomic for wiring ease
- High quality standards and approvals
- Long-life laser marking
- Additional all-axis marking provision
- Over voltage category: III
- Pollution degree :2
- Option to select Pluggable/Soldered Relays
- Standard and reverse type marking option available.
- Low Coil Drive Current (4.7 mA to 100 mA).
- LED indication to denote relay actuation.
- Freewheeling diode across relay coil.
Technical Data
| Bussing Possibility | By using spare jumpers.***** |
| Supply Voltage Indication | 3mm Red LED |
| Relay Protection Method | Using 1N4007 Free Wheeling Diode |
| Ambient Operating Temperature | -20 to 50 °C |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Housing Material | PC |
| Housing Colour | Grey |
| Rated Input voltage | 230 VAC |
| Rated output Current/channel | 5 A |
