SPARECRUX is NOT an authorized distributor for LAURITZ KNUDSEN ELECTRICAL & AUTOMATION

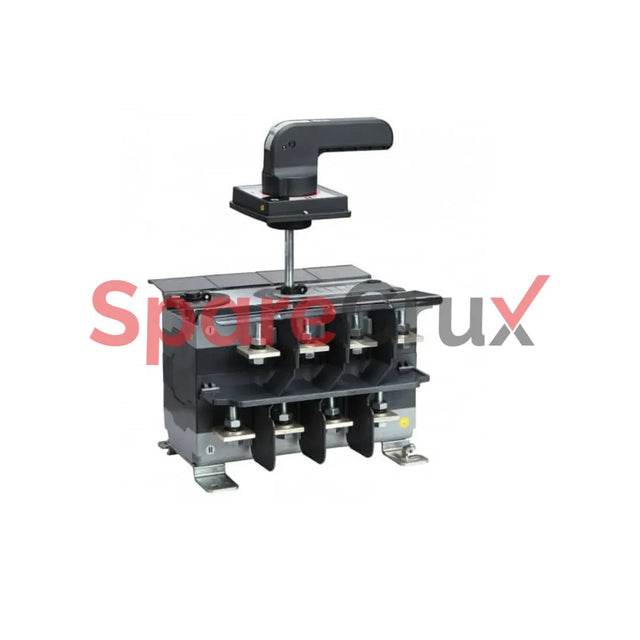

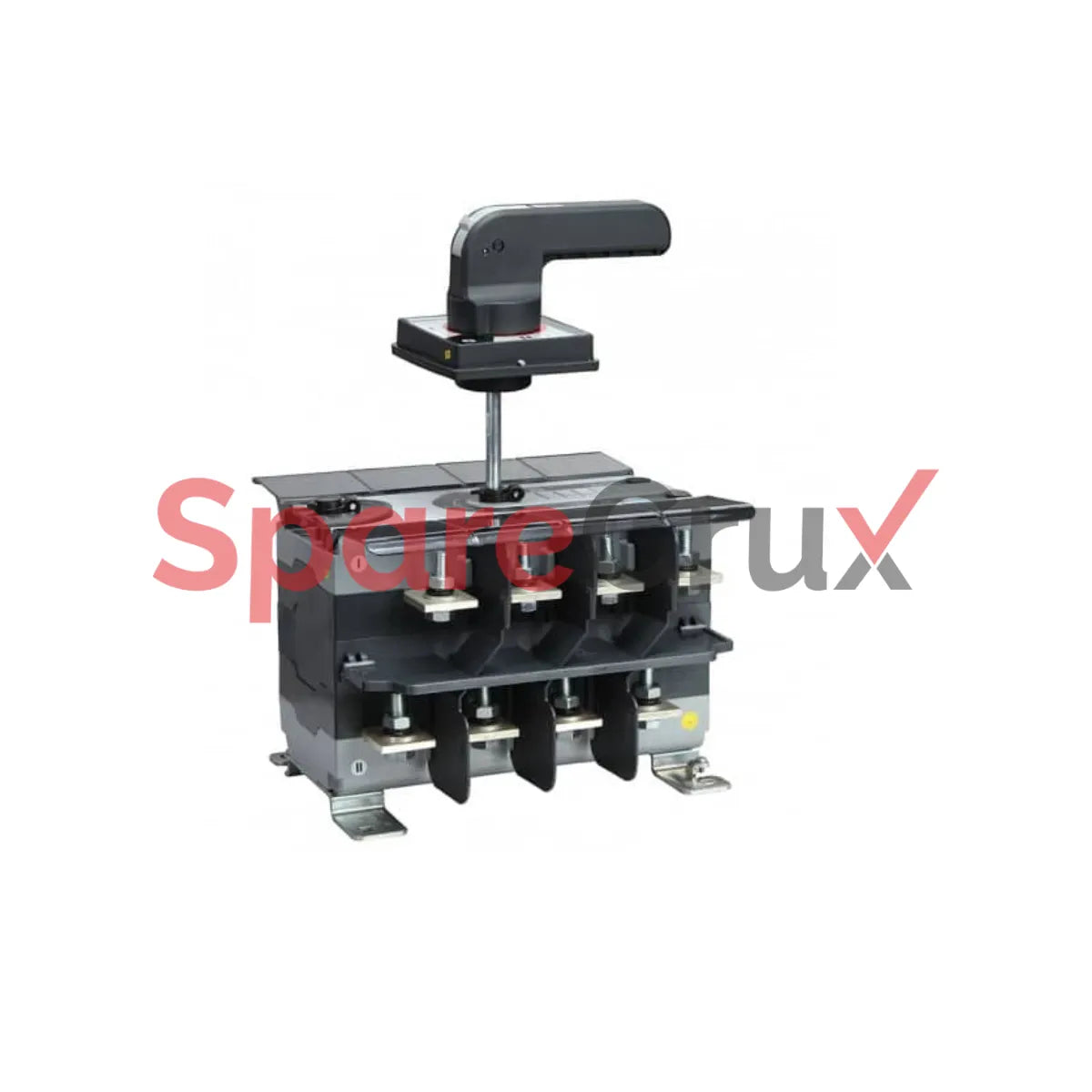

CO32500 | LAURITZ KNUDSEN ELECTRICAL & AUTOMATION | 250A 4P Open Execution

₹ 19,308.75

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

CO32500

Original Equipment Manufacturer

LAURITZ KNUDSEN ELECTRICAL & AUTOMATION

Description

Specification Details
Rated Operational Current (A) 250
Conformance to Standards IS/IEC 60947-3, EN 60947-3
Utilization Category AC-23A
Rated Operational Voltage (Ue) 415 V
Operating Frequency (Hz) 50/60
Mechanical Life (No. of Operating Cycles) 16,000
Rated Insulation Voltage Ui (V) 1000
Short Time Withstand for 1 sec (kA) 16
Rated Operational Power (kW) 132
Rated Breaking Capacity @ AC-23A (A) 2000
Rated Making Capacity @ AC-23A (A) 2500
Version Manual, Open Execution
No. of Poles 4P
Electrical Life (Operating Cycles) 2000
Mechanical Life (Operating Cycles) 16,000
Maximum Al Termination (sq.mm) 185
Mounting Positions All Orientations
Standard Accessories Terminal Shroud, Phase Barriers, Source Separator, Auxiliary Contacts, Extended Handle with Shaft
Pollution Degree 3
Rated Impulse Withstand Voltage (Uimp) 12 kV
Discount Percentage Between 0–10%
Note L&T Switchgear Business is now Lauritz Knudsen
