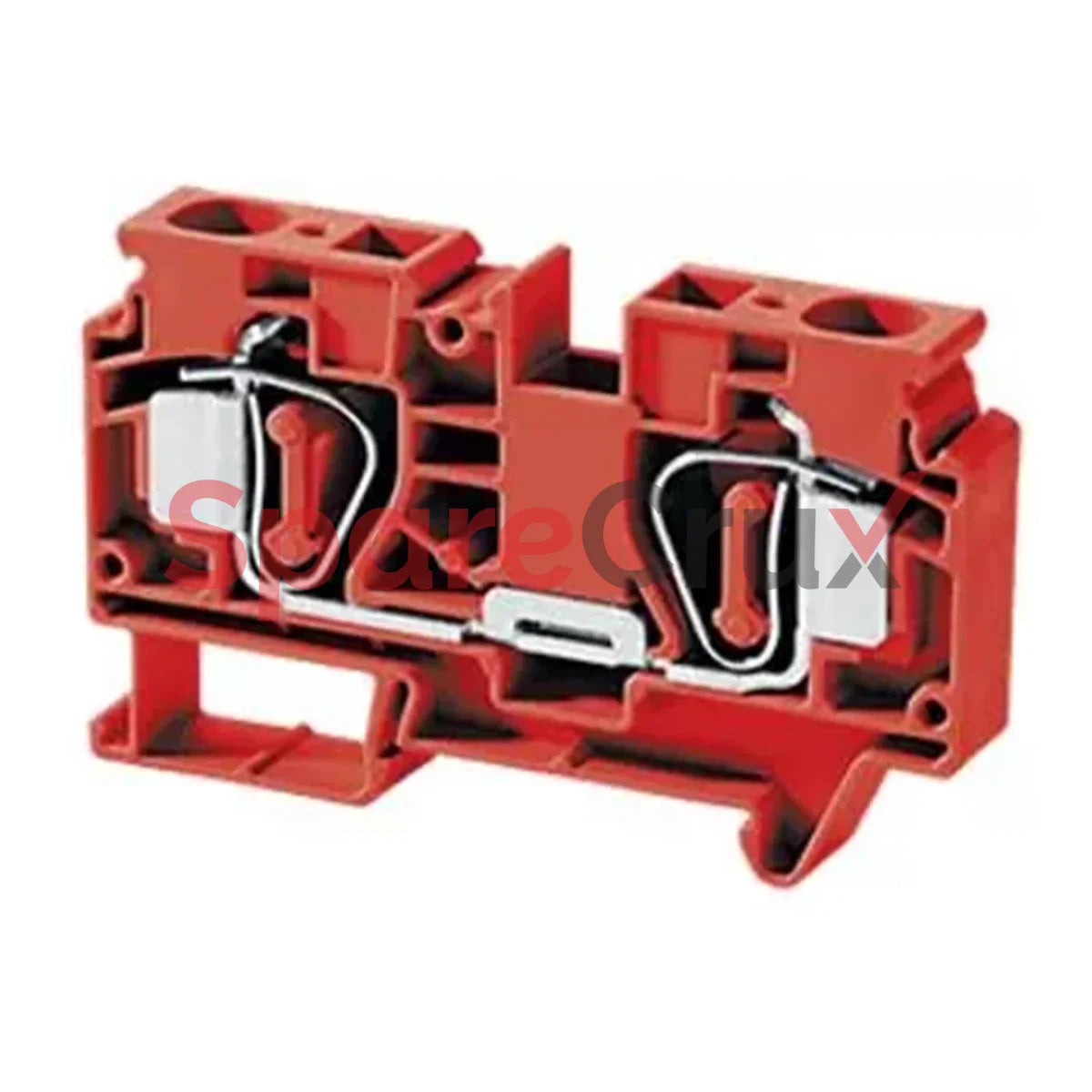

CSC16TR | CONNECTWELL | 16 sq.mm Feed Through Spring Clamp Terminal Block In Red Colour
₹ 86.08
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CSC16TR | CONNECTWELL | 16 sq.mm Feed Through Spring Clamp Terminal...
Manufacturer Part Number (MPN)
CSC16TR
Original Equipment Manufacturer
CONNECTWELL
Description
Description
The Spring Clamp is operated by using a screw driver to provide an access to the wire through an opening in the spring clamp. The inserted wire gets clamped on to the current bar when the screw driver is removed.
Technical Data
| Rated Voltage | 800 V |
| Rated Current | 76 A |
| Housing Material | Polyamide |
| Standard Colour | Grey |
| Product Function | Feed Through |
| Wire Entry Orientation | Top Entry |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Operated by | Screw Driver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
