CTS6SC | CONNECTWELL | 6 sq.mm Spring Loaded Terminal Block in Khaki/Beige Colour
₹ 41.28
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CTS6SC | CONNECTWELL | 6 sq.mm Spring Loaded Terminal Block in Khak...
Manufacturer Part Number (MPN)
CTS6SC
Original Equipment Manufacturer
CONNECTWELL
Description
Description

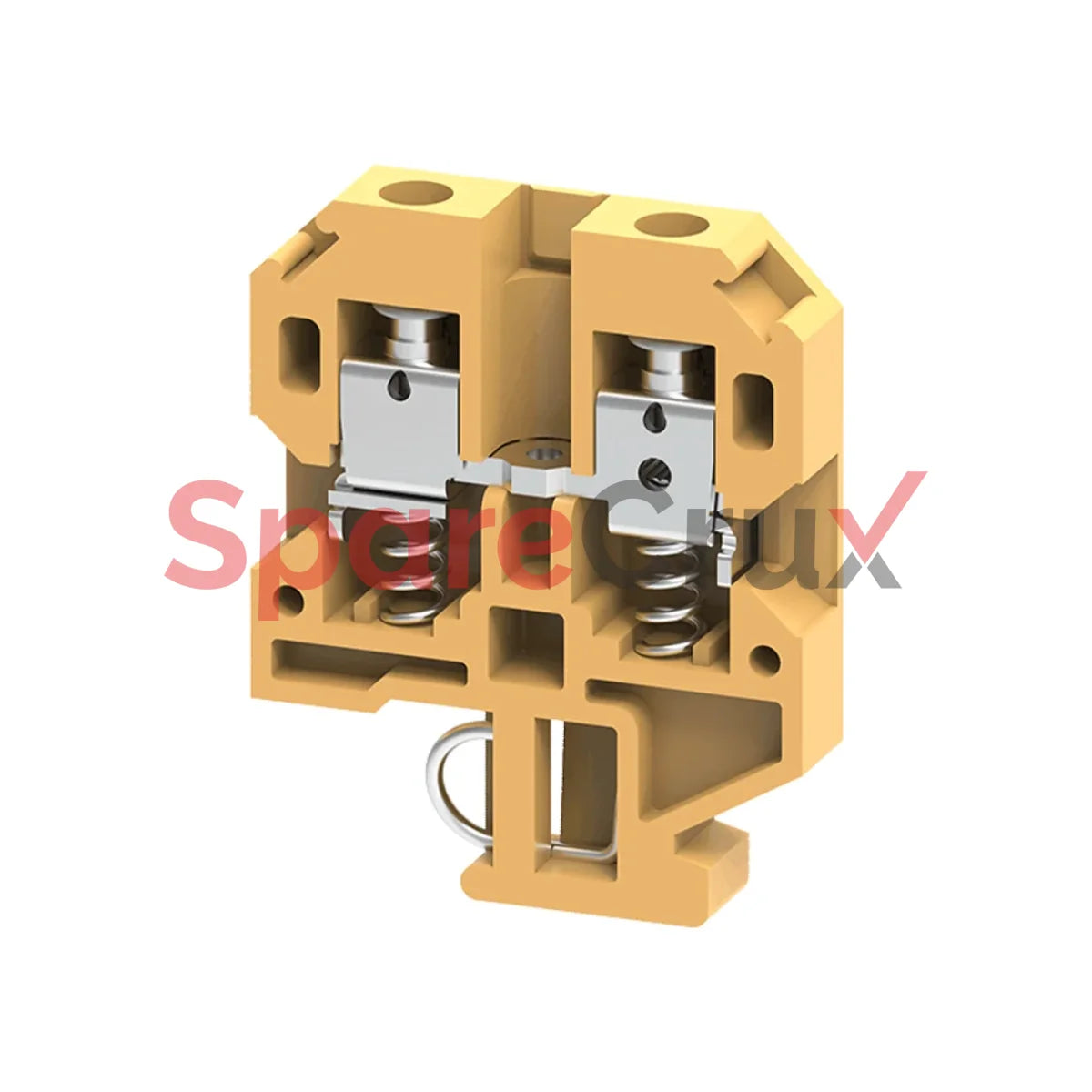

These modified version of feed through Terminal Blocks come with safety springs. These Terminal Blocks are preferred for connections that involve safety requirements of the Electric Supply Industry (ESI) standards, British CEGB regulations and NTPC applications. In addition to the high torque screws, these blocks have a built-in spring loading feature. It is recommended to use hook type lugs for terminating wires in such connections. These Terminal Blocks have a specially designed current bar for the right location/ placement of wires with hook type lugs, thus preventing loosening of the wires even when the screw clamps are not tightened.
The housing of these Terminal Blocks is made of High Grade Melamine which has insulation properties in accordance with the CEGB regulations.
Technical Data
| Rated Voltage | 630 V |
| Rated Current | 41 A |
| Tightening Torque | 0.8 Nm |
| Housing Material | Melamine |
| Product Function | Feed Through |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32 Rail |
| Screw Size | M3.5 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
