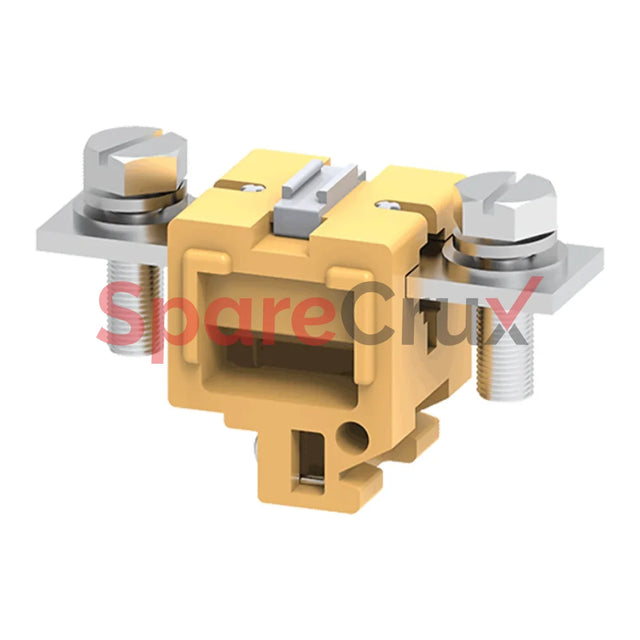

CTS95LS | CONNECTWELL | 95 sq.mm Bus Bar Type Terminal Block in Khaki/Beige Colour
₹ 279.60
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CTS95LS | CONNECTWELL | 95 sq.mm Bus Bar Type Terminal Block in Kha...
Manufacturer Part Number (MPN)
CTS95LS
Original Equipment Manufacturer
CONNECTWELL
Description
Description
These Terminal Blocks are preferred for applications using wires of a large cross section. The wire is crimped to a ring / fork type lug (ferrule) and is screwed on to the flat current bar on the Terminal Block. CTS95LS Terminal Blocks have a threading in the current bar, eliminating the need of locking nuts.Partition / Isolation Plate must be used with every Terminal Block. The Protective Cover is designed to be mounted on a specially designed slot in the Partition Plate.
Technical Data
| Rated Voltage | 1000 V |
| Rated Current | 232 A |
| Tightening Torque | 10 Nm |
| Housing Material | Melamine |
| Product Function | Feed Through |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32 Rail |
| Screw Size | M10 |
| Operated by | Screwdriver / Nut Driver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
