SPARECRUX is an authorized distributor for CONNECTWELL

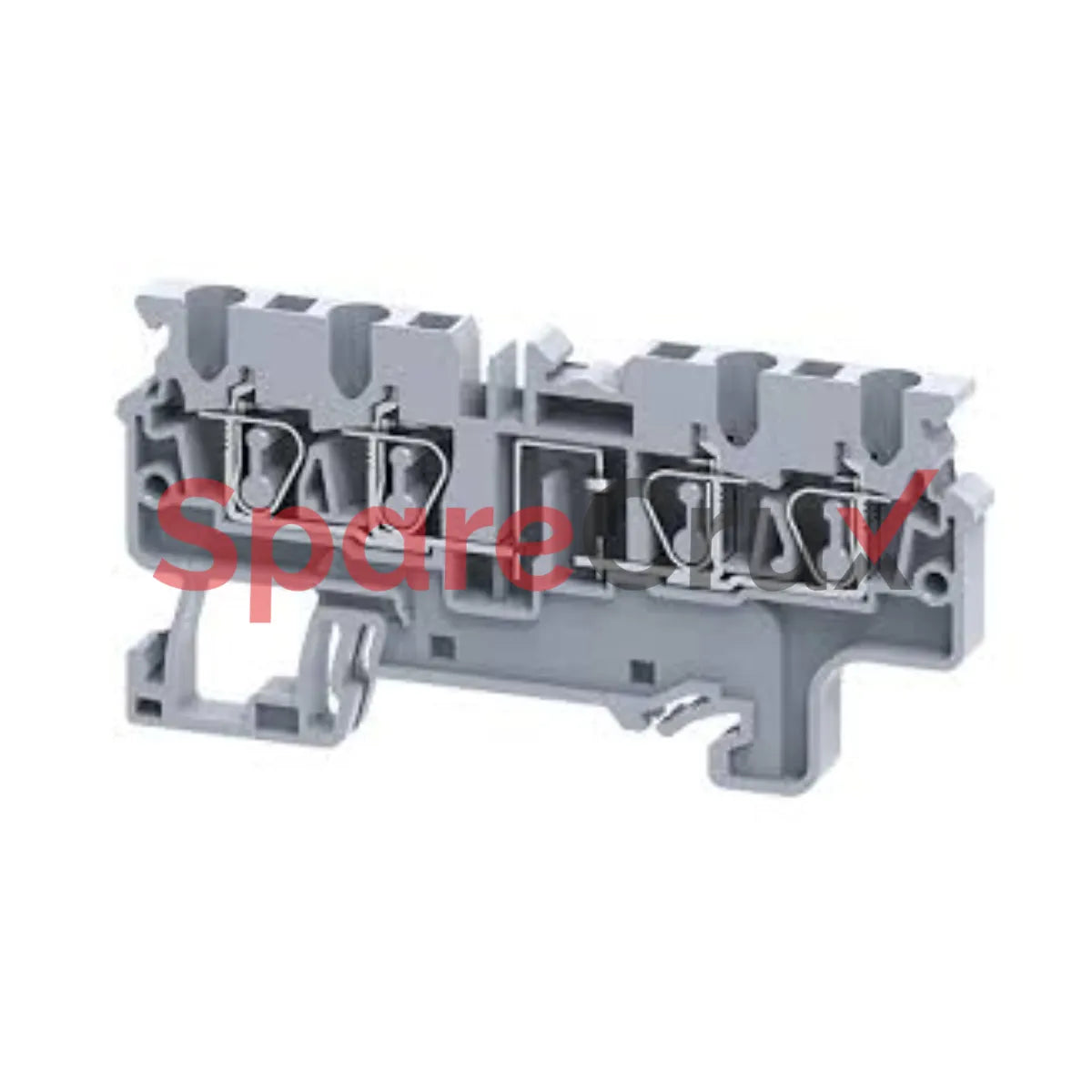

CX2.5/4(E)D1 | CONNECTWELL | 2.5 sq.mm Terminal Block

₹ 13,451.05

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

CX2.5/4(E)D1

Original Equipment Manufacturer

CONNECTWELL

Description

Specification Details
Model / Part Number CX2.5/4(E)D1
Type Terminal Block with diode circuit (D1 configuration)
Application Four conductor terminal block with arc suppression for DC contractors and solenoid valves
Rated Voltage 1000 V
Rated Current 1 A
Housing Material Polyamide
Product Function With Electronic Components: Diode / Resistor
Wire Entry Orientation Top
Mounting Possibility DIN 35 / DIN 35-15 Rail
Operated By Screwdriver
Conductor Cross Section Stranded Min 0.2 mm²
Conductor Cross Section Stranded Max 2.5 mm²
Conductor Cross Section AWG Min 24 AWG
Height with DIN 35 x 15 mm rail 45.2 mm
Height with DIN 35 x 7.5 mm rail 37.6 mm
Length 74.7 mm
Width (Thickness) 5 mm
