CX2.5/4P | CONNECTWELL | 2.5 sq.mm Feed Through Spring Clamp Terminal Block in Grey Colour
₹ 96.96
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CX2.5/4P | CONNECTWELL | 2.5 sq.mm Feed Through Spring Clamp Termin...
Manufacturer Part Number (MPN)
CX2.5/4P
Original Equipment Manufacturer
CONNECTWELL
Description
Description

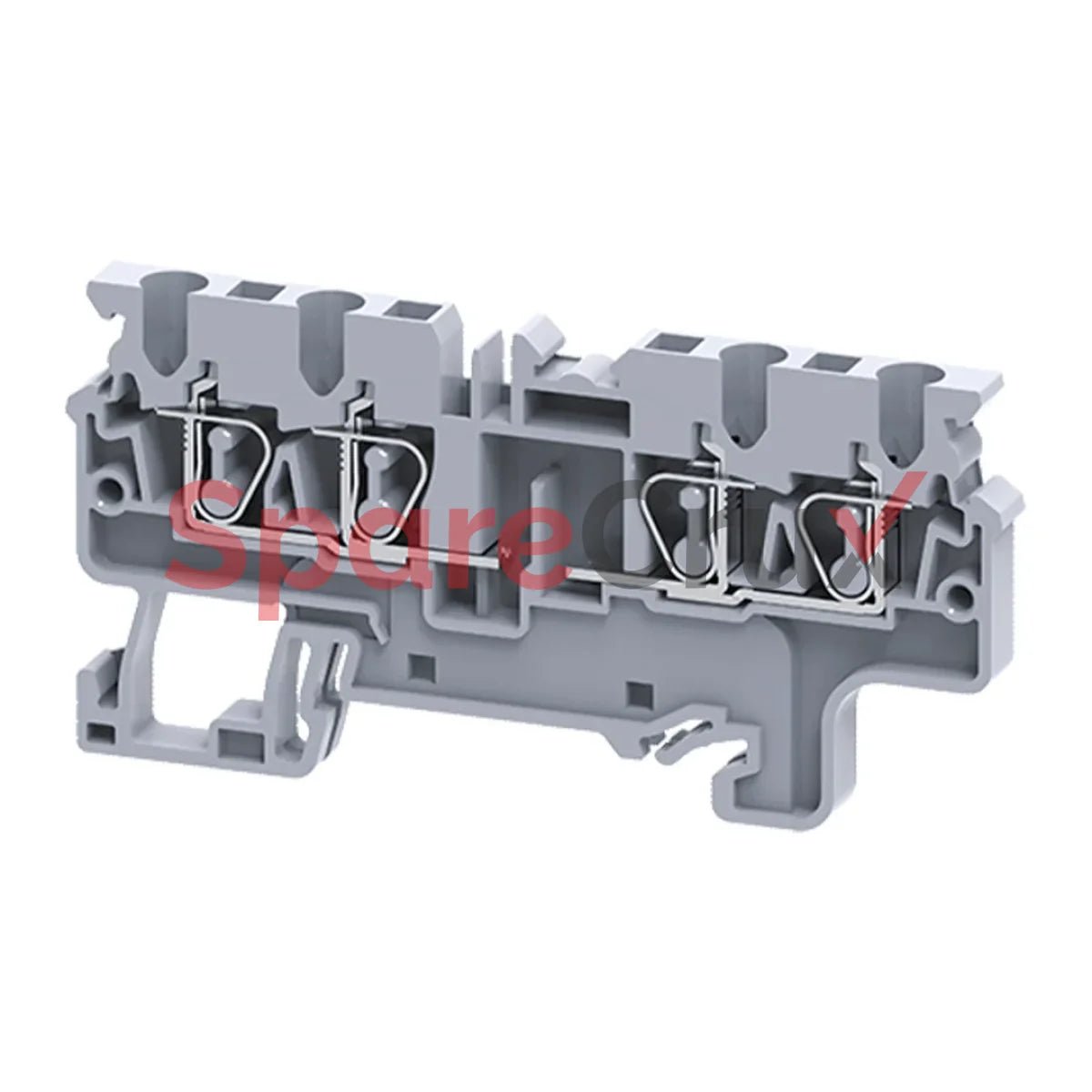

CX2.5/4P is 4 conductor double potential terminal block with two connection points for two different system voltages. One side of the Terminal Block can be shorted with standard insulated push-in jumpers.
Technical Data
| Rated Voltage | 1000 V |
| Housing Material | Polyamide |
| Standard Colour | Grey |
| Product Function | Feed Through |
| Wire Entry Orientation | Top |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Operated by | Screw Driver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
