SPARECRUX is an authorized distributor for CONNECTWELL

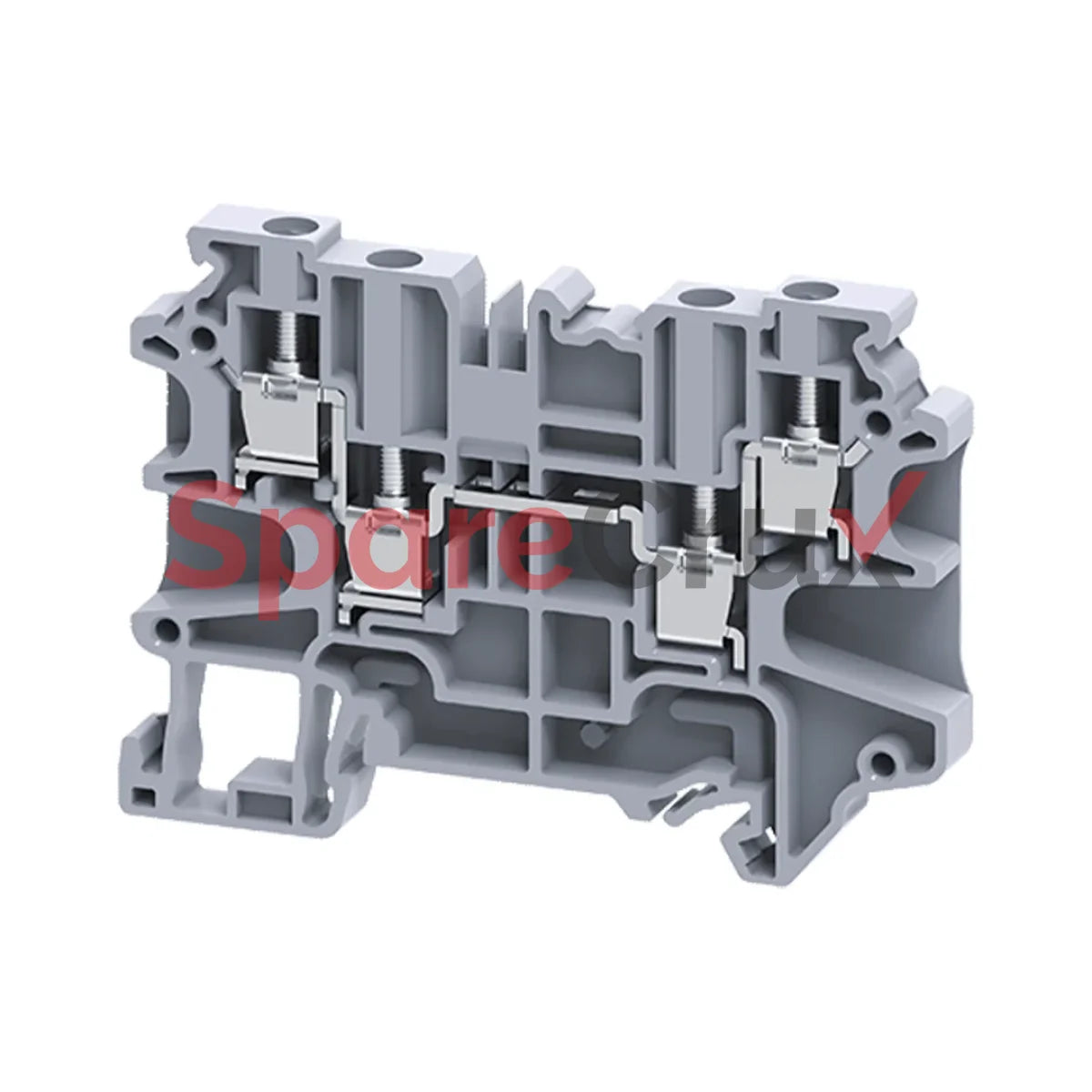

CY4/4 | CONNECTWELL | 4 sq.mm 4 Wire Feed Through Terminal Block in Grey colour

₹ 36.88

  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

CY4/4

Original Equipment Manufacturer

CONNECTWELL

Description

4 sq.mm Multiple Connection Terminal Blocks with 4 connection points.

These blocks are used to connect multiple wires in single Terminal Block, thereby eliminating reliability problems encountered when connecting multiple wires in a single clamp.

TECHNICAL DATA

Rated Voltage 500 V
Rated Current 32 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Standard Colour Grey
Product Function Feed Through
Wire Entry Orientation Side Entry
Mounting Possibility DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
Cy4/4 | Connectwell 4 Sq.mm Wire Feed Through Terminal Block In Grey Colour
CONNECTWELL

CY4/4 | CONNECTWELL | 4 sq.mm 4 Wire Feed Through Terminal Block in Grey colour

₹ 36.88
4 sq.mm Multiple Connection Terminal Blocks with 4 connection points.

These blocks are used to connect multiple wires in single Terminal Block, thereby eliminating reliability problems encountered when connecting multiple wires in a single clamp.

TECHNICAL DATA

Rated Voltage 500 V
Rated Current 32 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Standard Colour Grey
Product Function Feed Through
Wire Entry Orientation Side Entry
Mounting Possibility DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
