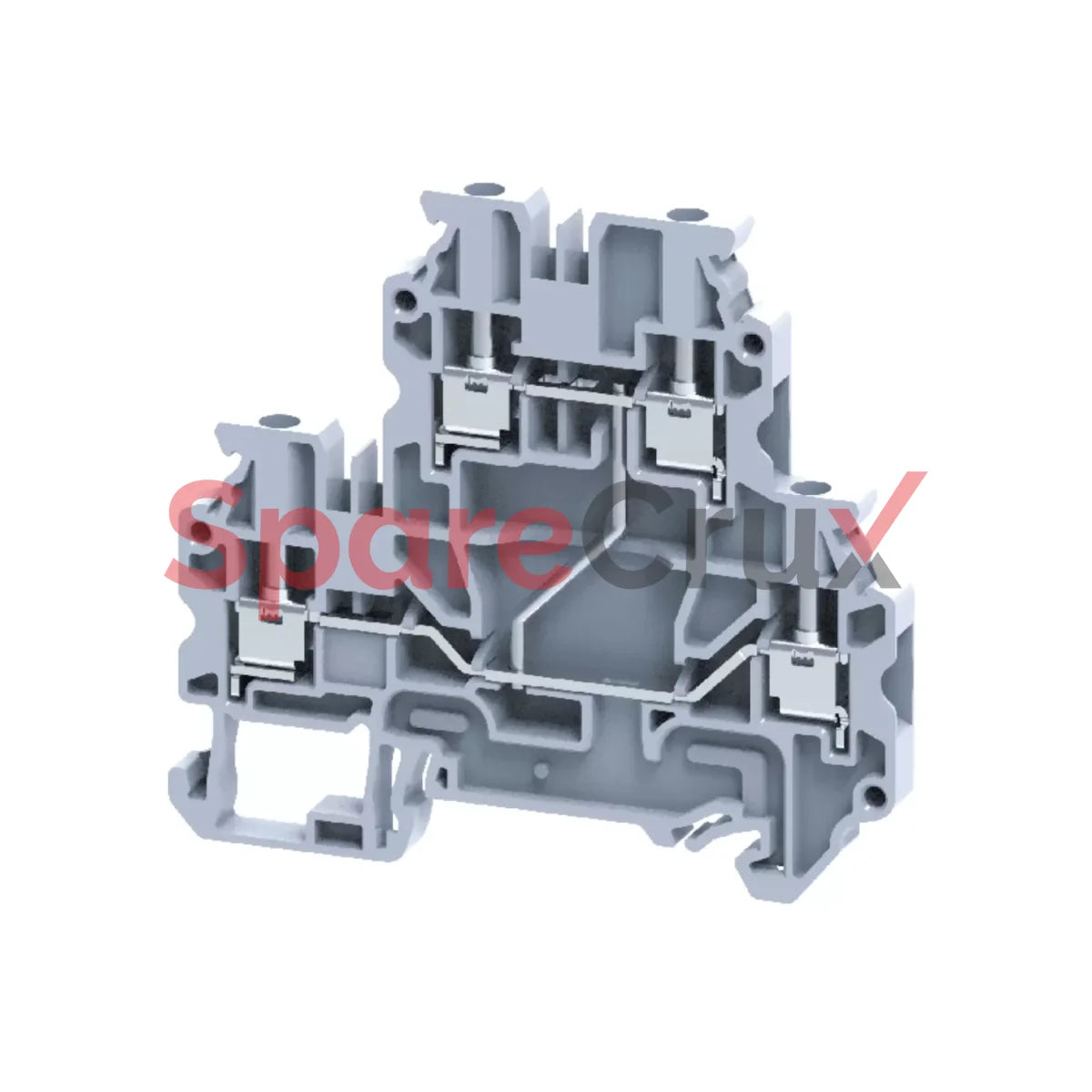

CYDL2.5(I.S) | CONNECTWELL | 2.5 sq.mm 2 Level Feed Through Screw Clamp Internally Shorted Terminal Block
₹ 43.68
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CYDL2.5(I.S) | CONNECTWELL | 2.5 sq.mm 2 Level Feed Through Screw C...
Manufacturer Part Number (MPN)
CYDL2.5(I.S)
Original Equipment Manufacturer
CONNECTWELL
Description
Description
These blocks are ideal for use in applications requiring high density wiring . Interconnection / shorting is possible at both levels. CYDL2.5 is the newer version of the with push in jumper possibility. CYDL2.5(I.S) is the internally shorted version. It is suited for 500 V application and can accommodate larger K5 marking tags.
| Rated Voltage | 1000 V |
| Rated Current | 41 A |
| Tightening Torque | 0.8 Nm |
| Housing Material | Polyamide |
| Product Function | Feed Through |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Screw Size | M3.5 |
| Operated by | Screwdriver |
