CYDLGF4FT | CONNECTWELL | 4 sq.mm Double Level Grounding Terminal Block in Grey
₹ 158.16
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CYDLGF4FT | CONNECTWELL | 4 sq.mm Double Level Grounding Terminal B...
Manufacturer Part Number (MPN)
CYDLGF4FT
Original Equipment Manufacturer
CONNECTWELL
Description
Description

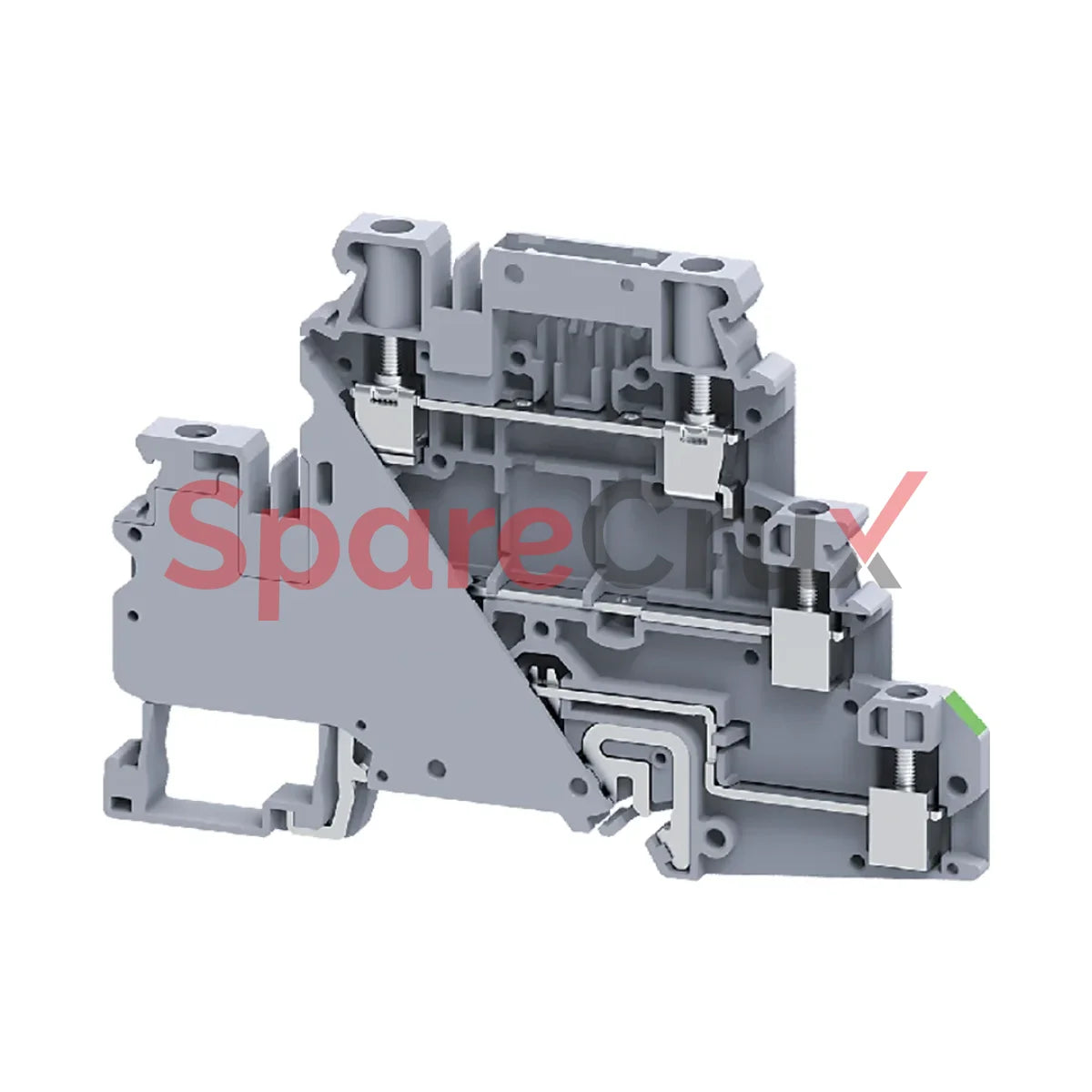

These blocks are ideal for use in application requiring high density wiring. Interconnection shorting is possible at both levels. The CYDLGF4FT is a double level terminal block with as additional connection point for earthing (Grounding) cables. This separate connection point is appropriately identified by the green yellow imprint on its top.
| Rated Voltage | 500 V |
| Rated Current | 32 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Standard Colour | Grey |
| Product Function | Double Level Plus Earthing |
| Wire Entry Orientation | side |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Operated by | screw driver |
| Rated Surge Voltage | 6 KV |
| Pollution Degree | 3 |
