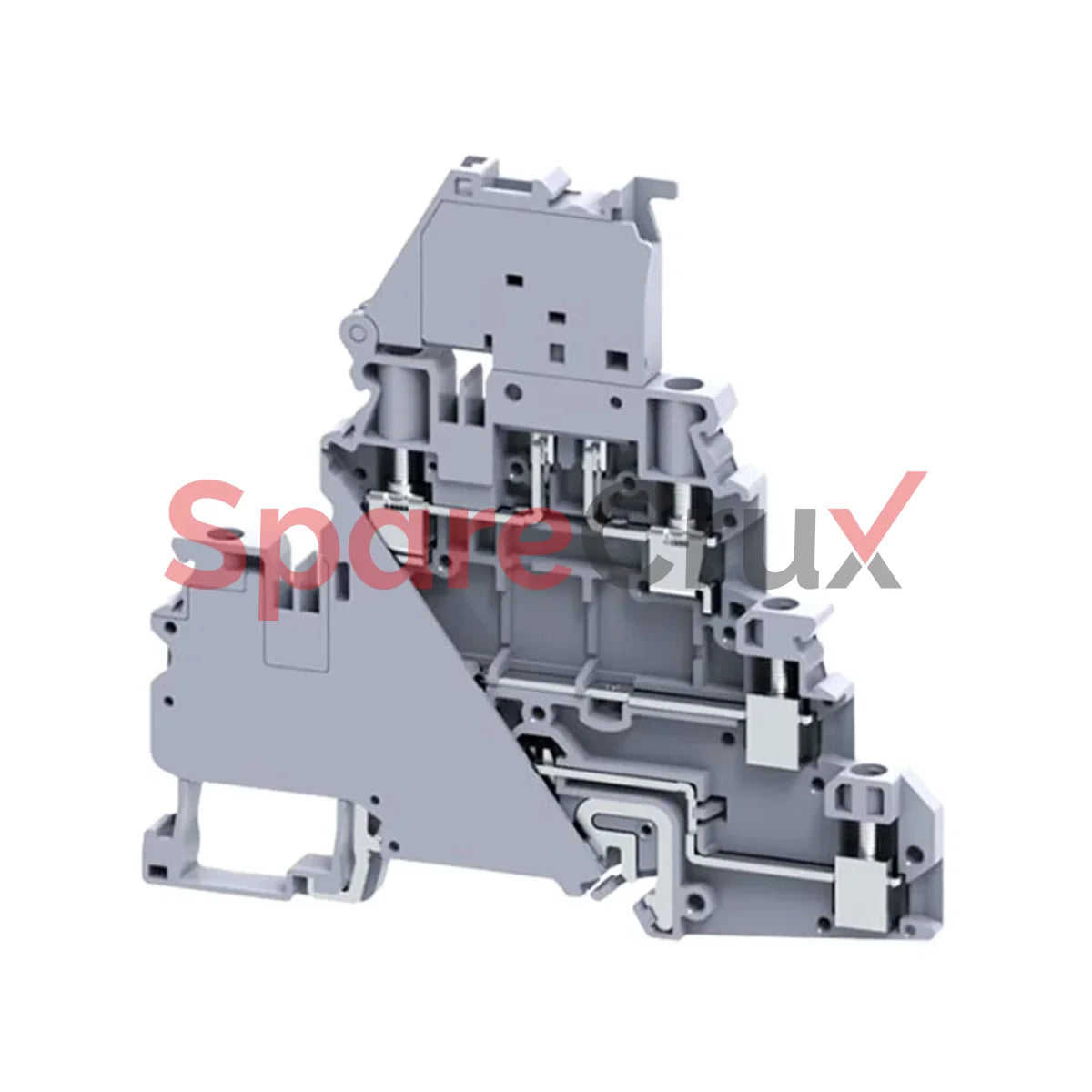

CYDLGF4L6-60V | CONNECTWELL | 4 sq.mm Double Level Fuse + Ground Terminal Block With LED Indication in Grey
₹ 181.60
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CYDLGF4L6-60V | CONNECTWELL | 4 sq.mm Double Level Fuse + Ground Te...
Manufacturer Part Number (MPN)
CYDLGF4L6-60V
Original Equipment Manufacturer
CONNECTWELL
Description
Description
These blocks have fuse carrier link on the top level and a separate feed through terminal connection at the lower level. This eliminates the use of additional Terminal Block.
| Rated Voltage | 500 V |
| Rated Current | 10 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Product Function | Double Level Fuse |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
