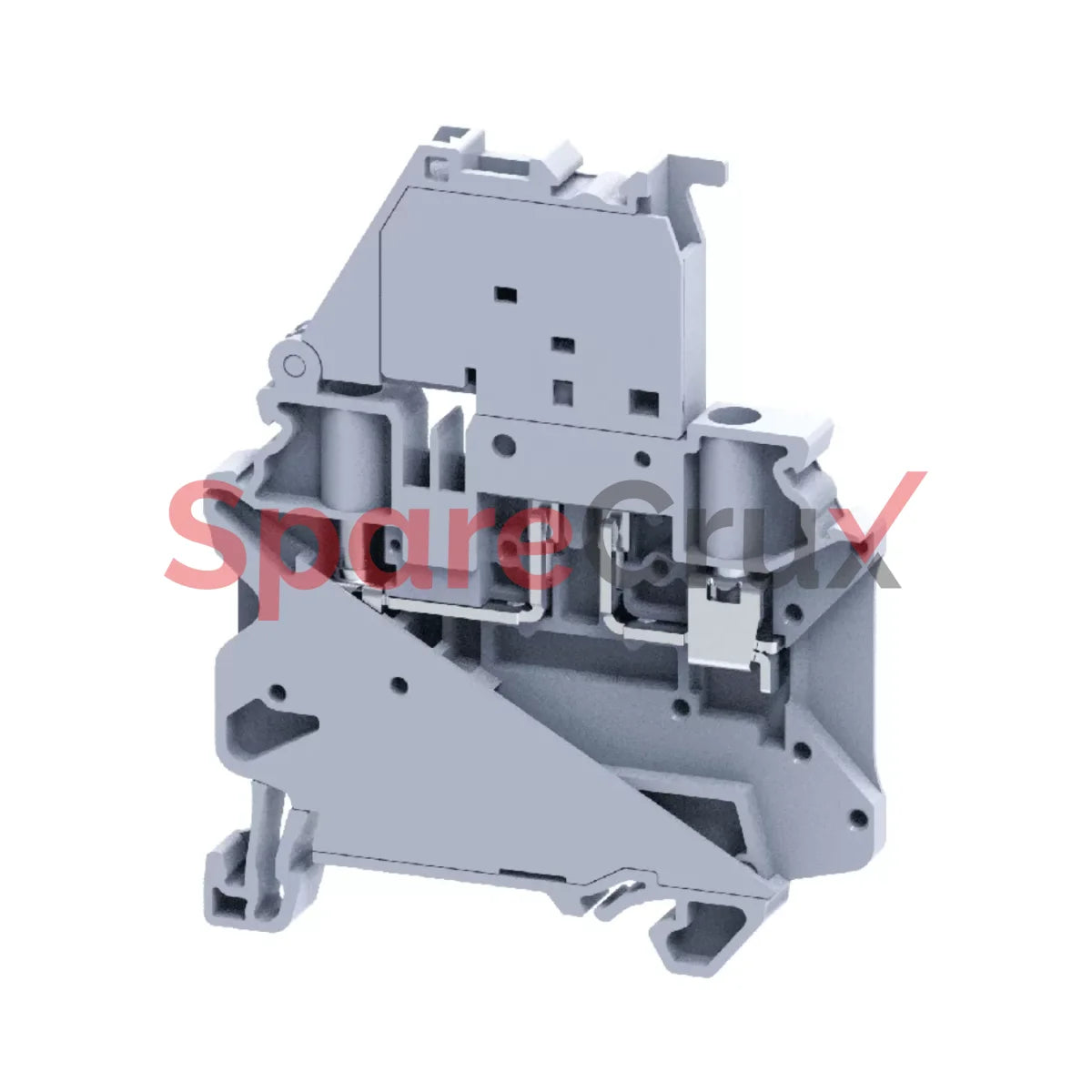

CYF4 | CONNECTWELL | 4 sq.mm Screw Clamp Fuse Terminal Block

₹ 50.32

  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

CYF4

Original Equipment Manufacturer

CONNECTWELL

Description

4 sq.mm Screw Clamp Fuse Terminal Blocks with push in Jumper possibility. These Terminal Blocks are used in electrical and control systems which require fuse protection. This series accepts industry standard 5 x 20 mm and 5 x 25 mm glass cartridge fuses. These blocks are completely closed and do not need a separate end plate.

Technical Data

Rated Voltage 1000 V
Rated Current 10 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Product Function Single Level Fuse
Wire Entry Orientation Side Entry
Mounting Possibility DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 6 KV
Pollution Degree 3
Cyf4 | Connectwell 4 Sq.mm Screw Clamp Fuse Terminal Block
CONNECTWELL

CYF4 | CONNECTWELL | 4 sq.mm Screw Clamp Fuse Terminal Block

₹ 50.32
4 sq.mm Screw Clamp Fuse Terminal Blocks with push in Jumper possibility. These Terminal Blocks are used in electrical and control systems which require fuse protection. This series accepts industry standard 5 x 20 mm and 5 x 25 mm glass cartridge fuses. These blocks are completely closed and do not need a separate end plate.

Technical Data

Rated Voltage 1000 V
Rated Current 10 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Product Function Single Level Fuse
Wire Entry Orientation Side Entry
Mounting Possibility DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 6 KV
Pollution Degree 3
