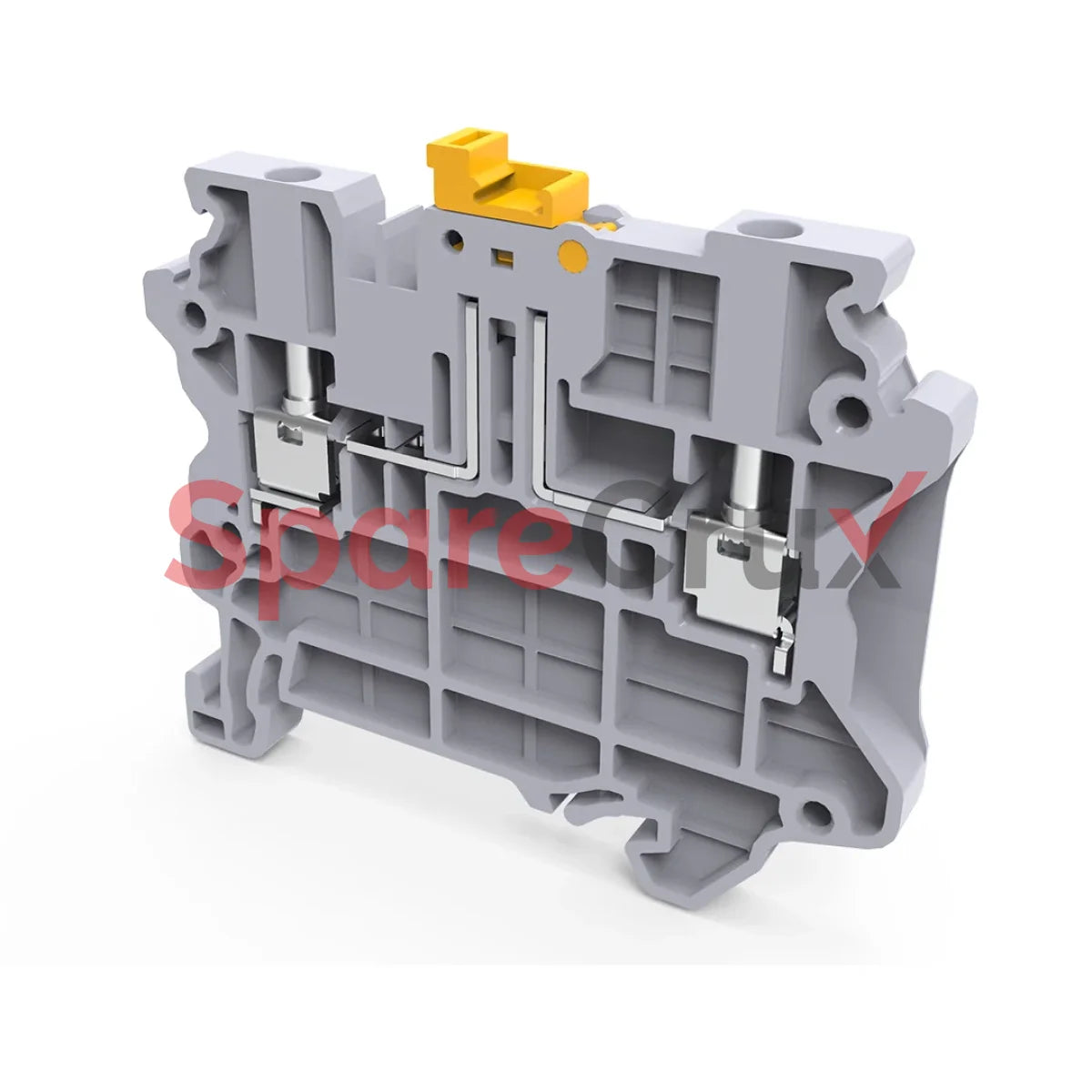

CYK2.5N | CONNECTWELL | 2.5 sq.mm Knife Type Disconnect and Test Terminal Blocks in Grey
₹ 32.40
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CYK2.5N | CONNECTWELL | 2.5 sq.mm Knife Type Disconnect and Test Te...
Manufacturer Part Number (MPN)
CYK2.5N
Original Equipment Manufacturer
CONNECTWELL
Description
Description
These blocks are used measuring control and regulatory circuits. They provide a clear functional advantage for devices having utility instruments and associated transformers in CYK2.5 disconnection is achieved by lifting a lever which operates the knife contact. Specially designed socket headed screws act as test monitoring points in disconnecting and test Terminal blocks.
| Rated Voltage | 500 V |
| Rated Current | 20 A |
| Tightening Torque | 0.4 Nm |
| Housing Material | Polyamide |
| Standard Colour | Grey |
| Product Function | Knife Type Discconnect and Test |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Screw Size | M2.5 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
