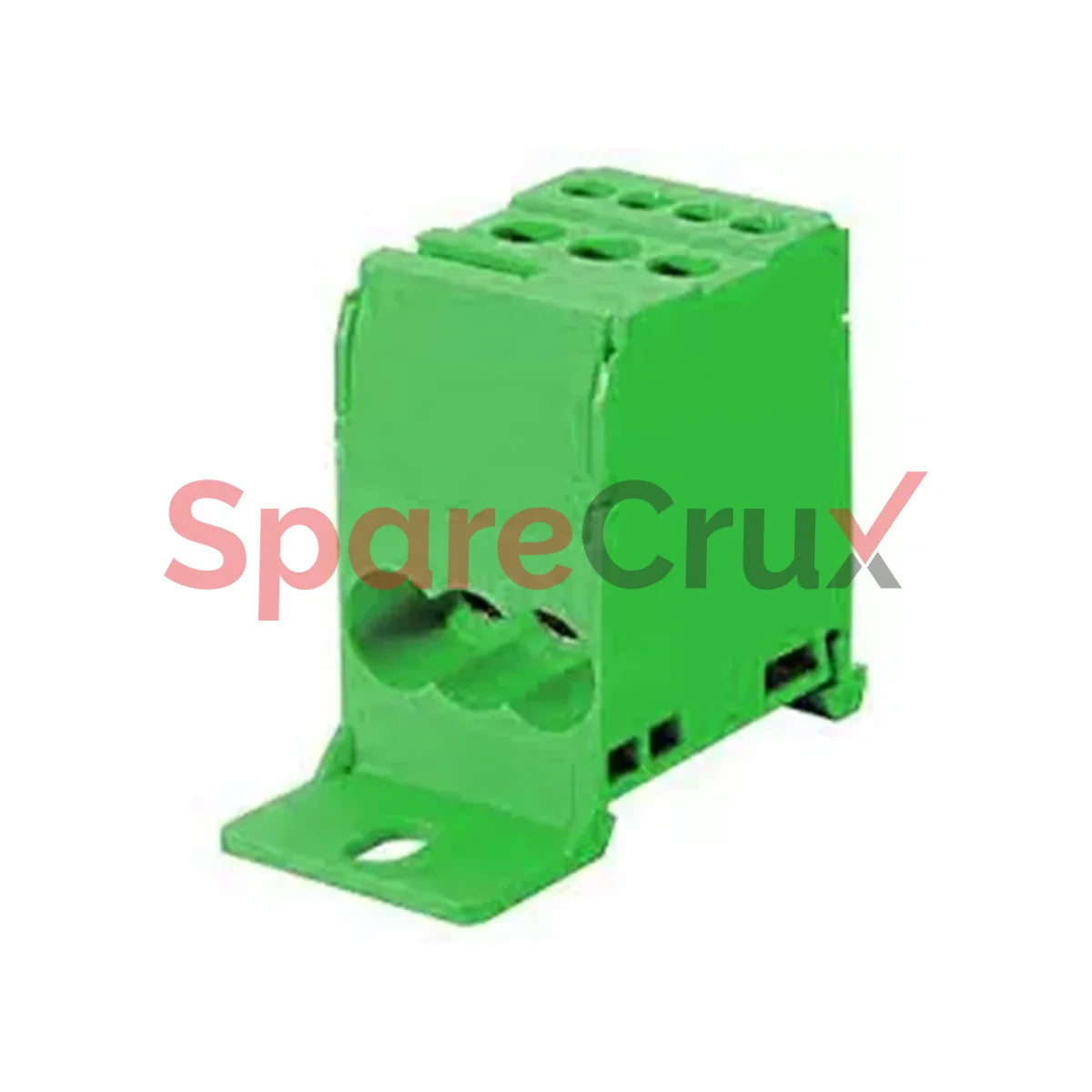

DB16GN | CONNECTWELL | 16 sq.mm Comact Distribution Terminal Block in Green
₹ 276.40
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
DB16GN | CONNECTWELL | 16 sq.mm Comact Distribution Terminal Block ...
Manufacturer Part Number (MPN)
DB16GN
Original Equipment Manufacturer
CONNECTWELL
Description
Description
DB16GN , these are the distribution blocks are used for single phase distribution system. These blocks can either be mounted on Din rail or can be panel mounted.
| Rated Voltage | 1000 V |
| Rated Current | 76 A |
| Tightening Torque - Input Side | 1.2 Nm |
| Tightening Torque - Output Side | 0.8 Nm |
| Housing Material | Polyamide |
| Product Function | Modular Distribution Blocks |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M5 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 6 KV |
| Pollution Degree | 3 |
