SPARECRUX is an authorized distributor for CONNECTWELL

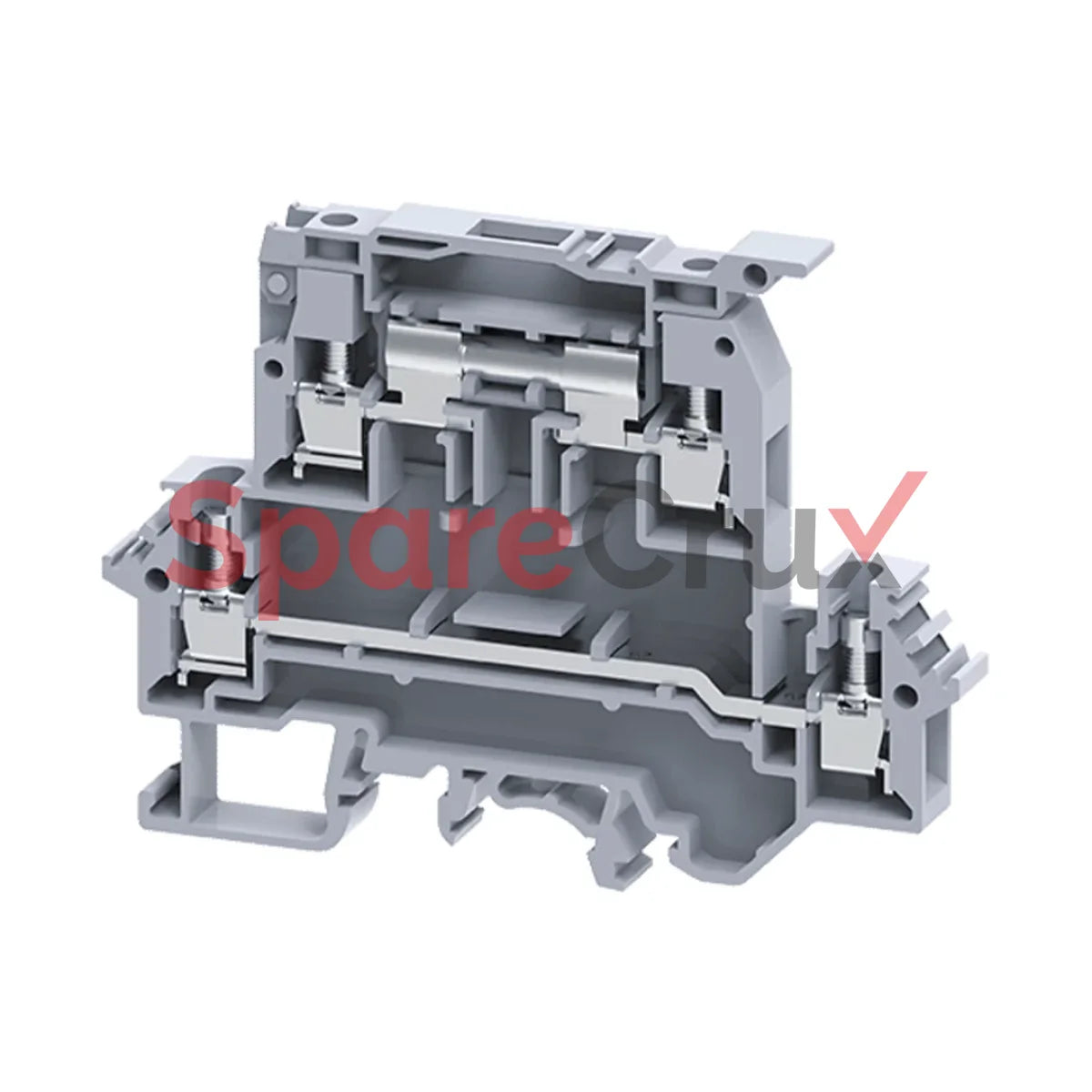

DDDL4U | CONNECTWELL | 4 sq.mm Disconnect & Test Terminal Block in Grey

₹ 78.24

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

DDDL4U

Original Equipment Manufacturer

CONNECTWELL

Description

In DDDL4U Disconnection is achieved by a hinged lever. Specially designed socket headed screws act as test monitoring points in this Terminal

Technical Data

Rated Voltage 800 V
Rated Current 10 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Product Function Sliding Type Disconnect and Test
Wire Entry Orientation Side Entry
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 5 KV
Pollution Degree 3


Dddl4U | Connectwell 4 Sq.mm Disconnect & Test Terminal Block In Grey
CONNECTWELL

DDDL4U | CONNECTWELL | 4 sq.mm Disconnect & Test Terminal Block in Grey

₹ 78.24

In DDDL4U Disconnection is achieved by a hinged lever. Specially designed socket headed screws act as test monitoring points in this Terminal

Technical Data

Rated Voltage 800 V
Rated Current 10 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Product Function Sliding Type Disconnect and Test
Wire Entry Orientation Side Entry
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 5 KV
Pollution Degree 3
