SPARECRUX is NOT an authorized distributor for ELMEX

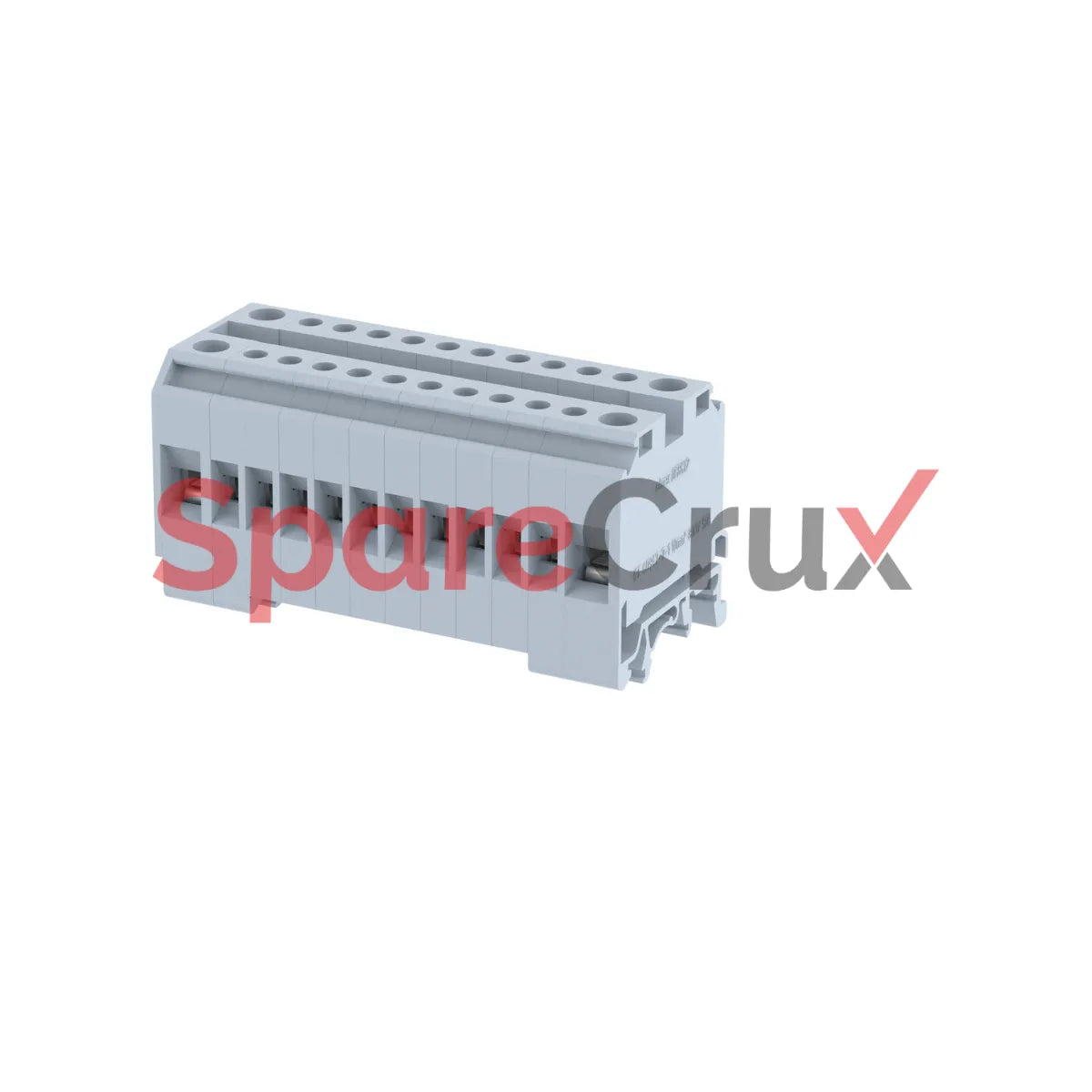

DFBK 12 | ELMEX | Distribution Block

₹ 7,300.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

DFBK 12

Original Equipment Manufacturer

ELMEX

Description
Housing Polyamide 6.6
Clamping Material CRCA
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi, Gray
Standard IEC 60947-7-1
Rated Voltage (V) 800
Rated Current (A) IC-50 A, OG-32
Rated Cross Section (sq.mm) IC-10 mm², OG-4
Short Time Withstand Current 1.2 kA
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3
Thickness 89 mm (3.5 inches)
Width 42.5 mm (1.67 inches)
Height 46.5 mm (1.83 inches)
Weight For Standard Packing Qty (kg) 1.57
ELMEX

DFBK 12 | ELMEX | Distribution Block

₹ 7,300.00
Housing Polyamide 6.6
Clamping Material CRCA
Standard Colour Gray
Other Colour Variants Red, Yellow, Blue, Black, Green, Khakhi, Gray
Standard IEC 60947-7-1
Rated Voltage (V) 800
Rated Current (A) IC-50 A, OG-32
Rated Cross Section (sq.mm) IC-10 mm², OG-4
Short Time Withstand Current 1.2 kA
Rated Impulse Withstand Voltage (kV) 8
Pollution Degree 3
Thickness 89 mm (3.5 inches)
Width 42.5 mm (1.67 inches)
Height 46.5 mm (1.83 inches)
Weight For Standard Packing Qty (kg) 1.57
