SPARECRUX is NOT an authorized distributor for ELMEX

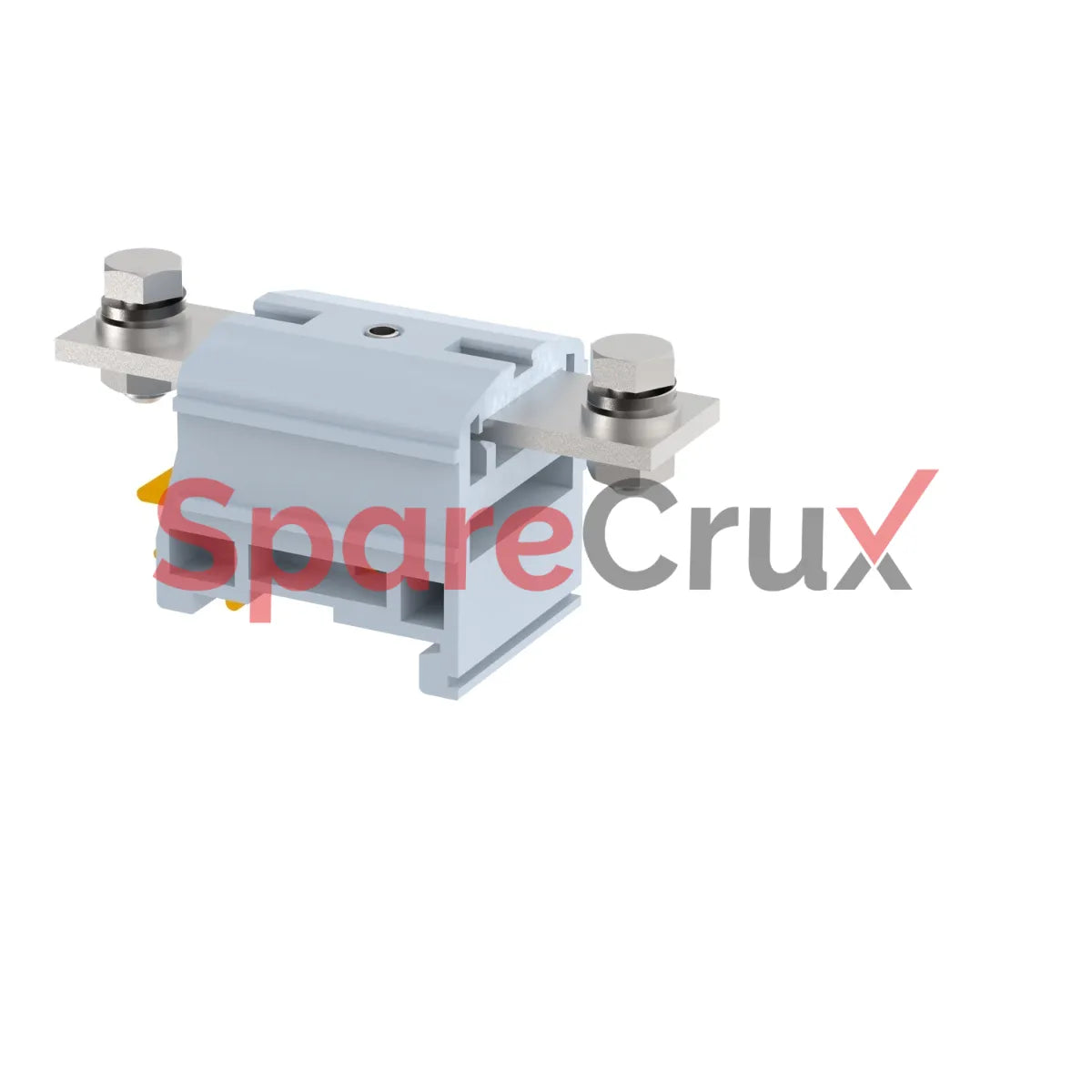

DPBB50 | ELMEX | High-current busbar terminal block

₹ 1,700.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

DPBB50

Original Equipment Manufacturer

ELMEX

Description
Type High-current busbar terminal block
Housing Material Polyamide 6.6
Clamping Material Nickel-plated brass (NAP)
Standard Color Gray (also available in Red, Yellow, Blue, Black, Green, Khaki)
Mounting Type DIN Rail (TS 35/7.5, TS 35/15, TS 32)
Conductor Size (Solid Wire) 10 mm² to 50 mm²
Conductor Size (Stranded Wire) 10 mm² to 50 mm²
Rated Voltage (IEC Standard) 1000 V AC/DC
Rated Voltage (UL Standard) 1000 V
Rated Current (IEC Standard) 150 A
Rated Current (UL Standard) 130 A
Rated Cross-Section 50 mm²
Short-Time Withstand Current 6 kA
Rated Impulse Withstand Voltage 12 kV
ELMEX

DPBB50 | ELMEX | High-current busbar terminal block

₹ 1,700.00
Type High-current busbar terminal block
Housing Material Polyamide 6.6
Clamping Material Nickel-plated brass (NAP)
Standard Color Gray (also available in Red, Yellow, Blue, Black, Green, Khaki)
Mounting Type DIN Rail (TS 35/7.5, TS 35/15, TS 32)
Conductor Size (Solid Wire) 10 mm² to 50 mm²
Conductor Size (Stranded Wire) 10 mm² to 50 mm²
Rated Voltage (IEC Standard) 1000 V AC/DC
Rated Voltage (UL Standard) 1000 V
Rated Current (IEC Standard) 150 A
Rated Current (UL Standard) 130 A
Rated Cross-Section 50 mm²
Short-Time Withstand Current 6 kA
Rated Impulse Withstand Voltage 12 kV
