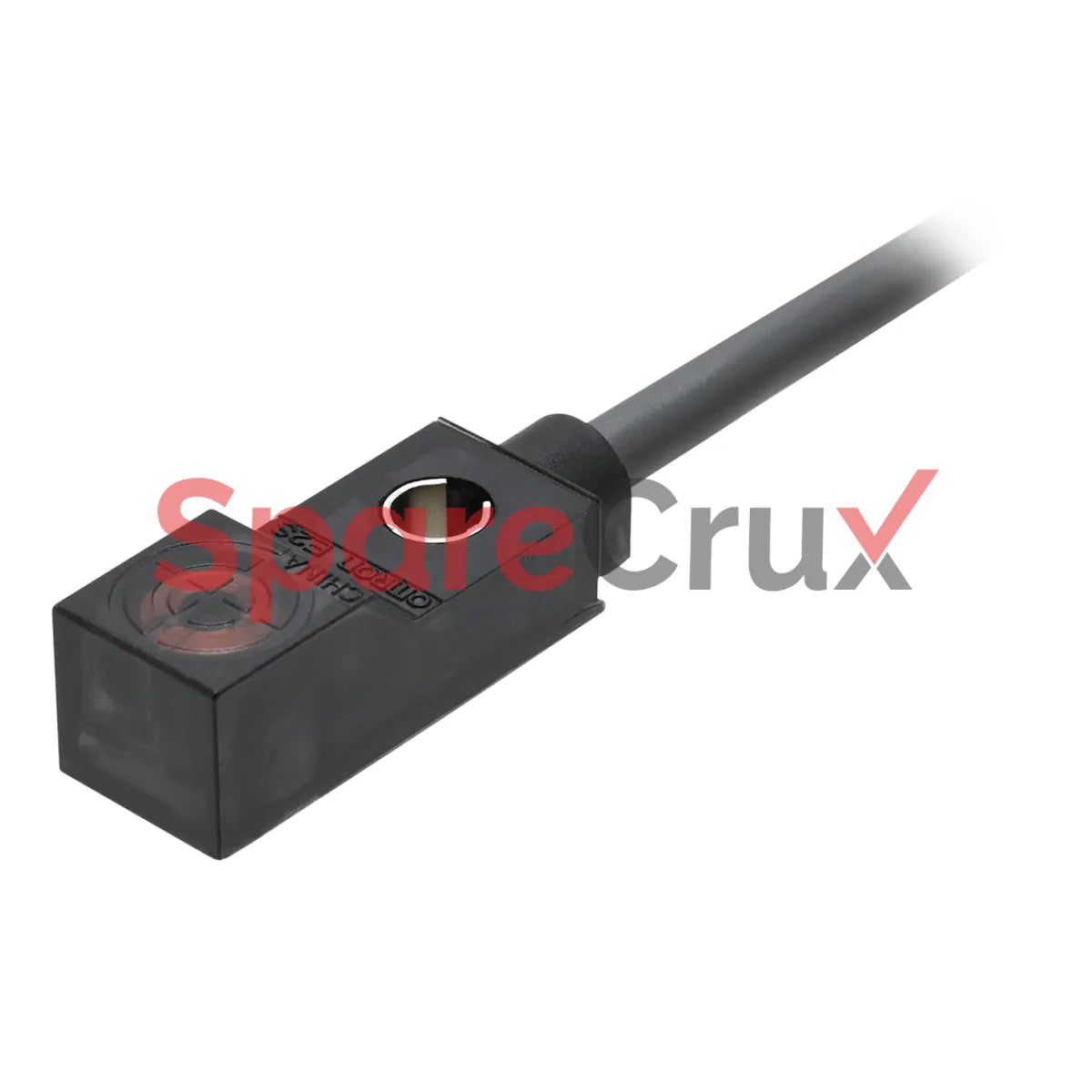

E2S-W21 | OMRON | Proximity Sensor

₹ 2,850.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

E2S-W21

Original Equipment Manufacturer

OMRON

Description
Specification Details
Sensing Head Size 8 mm x 7.4 mm x 20 mm
Type Square type, Unshielded
Power Source DC 2-wire models
Sensing Distance 2.5 mm ±15%
Setting Distance 0 to 1.9 mm
Differential Distance 10% max. of sensing distance
Sensing Object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard Sensing Object Iron 15 x 15 x 1 mm
Response Frequency 1 kHz (Average value)
Power Supply Voltage 12 to 24 VDC ripple (p-p) 10% max.
Operating Voltage Range 10 to 30 VDC
Leakage Current 0.8 mA max.
Control Output (Switching Capacity) 3 to 50 mA
Control Output (Residual Voltage) 3 V max. (Load current 50 mA with cable length of 1 m)
Indicator Operation indicator (orange), Operation setting indicator (green)
Operation Mode NO
Protective Circuit Power supply reverse polarity protection, Surge suppressor
Ambient Temperature (Operating) -25 to 70 ℃
Ambient Temperature (Storage) -40 to 85 ℃
Ambient Humidity (Operating) 35 to 90 %
Ambient Humidity (Storage) 35 to 95 %
Temperature Influence ±15% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃
Voltage Influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation Resistance Between charged parts and the case: 50 MΩ min. at 500 VDC
