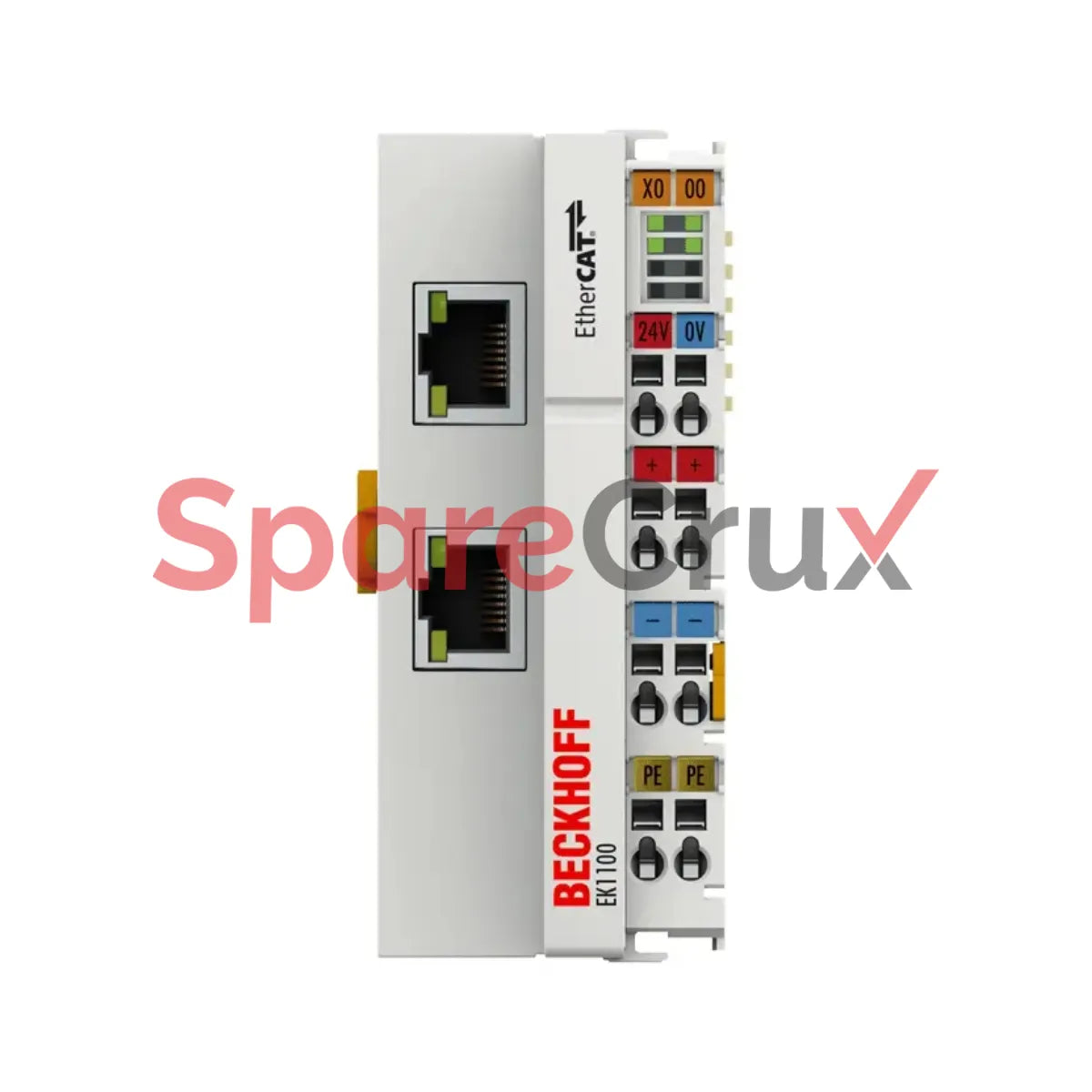

EK1100 | BECKHOFF | EtherCAT Coupler

₹ 25,016.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

EK1100

Original Equipment Manufacturer

BECKHOFF

Description
Task within EtherCAT system coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks
Data transfer medium Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations max. 100 m (100BASE-TX)
Number of EtherCAT Terminals up to 65,534
Protocol EtherCAT
Delay approx. 1 µs
Data transfer rates 100 Mbit/s
Bus interface 2 x RJ45
Power supply 24 V DC (-15%/+20%)
Current consumption from US 70 mA + (∑ E-bus current/4)
Current consumption from UP load
Current supply E-bus 2000 mA
Power contacts max. 24 V DC/max. 10 A
