SPARECRUX is NOT an authorized distributor for BECKHOFF

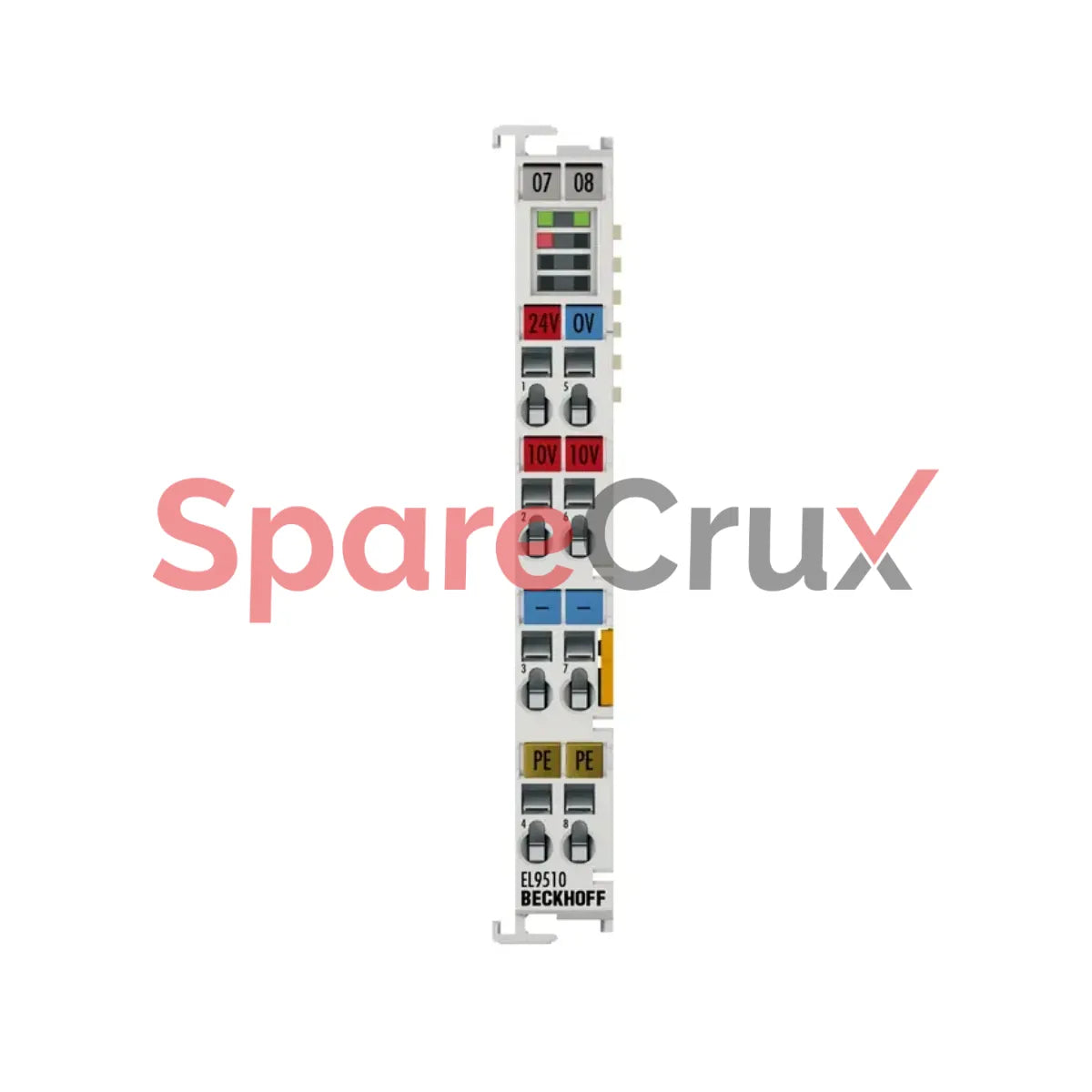

EL9510 | BECKHOFF | Power Supply Terminal 10 V DC

₹ 38,240.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

EL9510

Original Equipment Manufacturer

BECKHOFF

Description

Technology power supply terminal with diagnostics and overcurrent LED
Short-circuit proof yes
Input voltage 24 V DC (-15%/+20%)
Output voltage 10 V DC ±1%
Output current 0.5 A
Current consumption E-bus 90 mA
Electrical isolation 500 V (E-bus/field potential)
Residual ripple < 5 mV
Diagnostics in the process image yes
Special features stabilized output voltage
Weight approx. 65 g
Operating temperature -25…+55°C
BECKHOFF

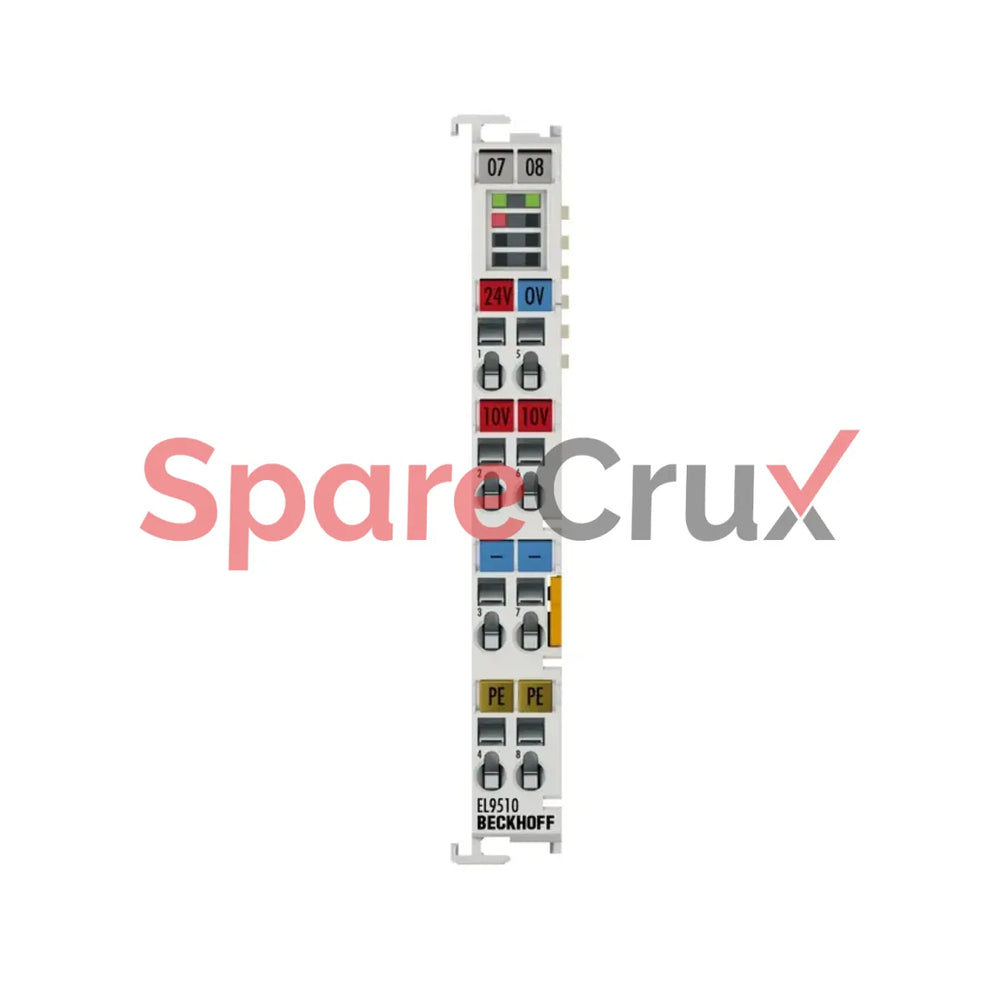

EL9510 | BECKHOFF | Power Supply Terminal 10 V DC

₹ 38,240.00
Technology power supply terminal with diagnostics and overcurrent LED
Short-circuit proof yes
Input voltage 24 V DC (-15%/+20%)
Output voltage 10 V DC ±1%
Output current 0.5 A
Current consumption E-bus 90 mA
Electrical isolation 500 V (E-bus/field potential)
Residual ripple < 5 mV
Diagnostics in the process image yes
Special features stabilized output voltage
Weight approx. 65 g
Operating temperature -25…+55°C
