SPARECRUX is NOT an authorized distributor for NTN

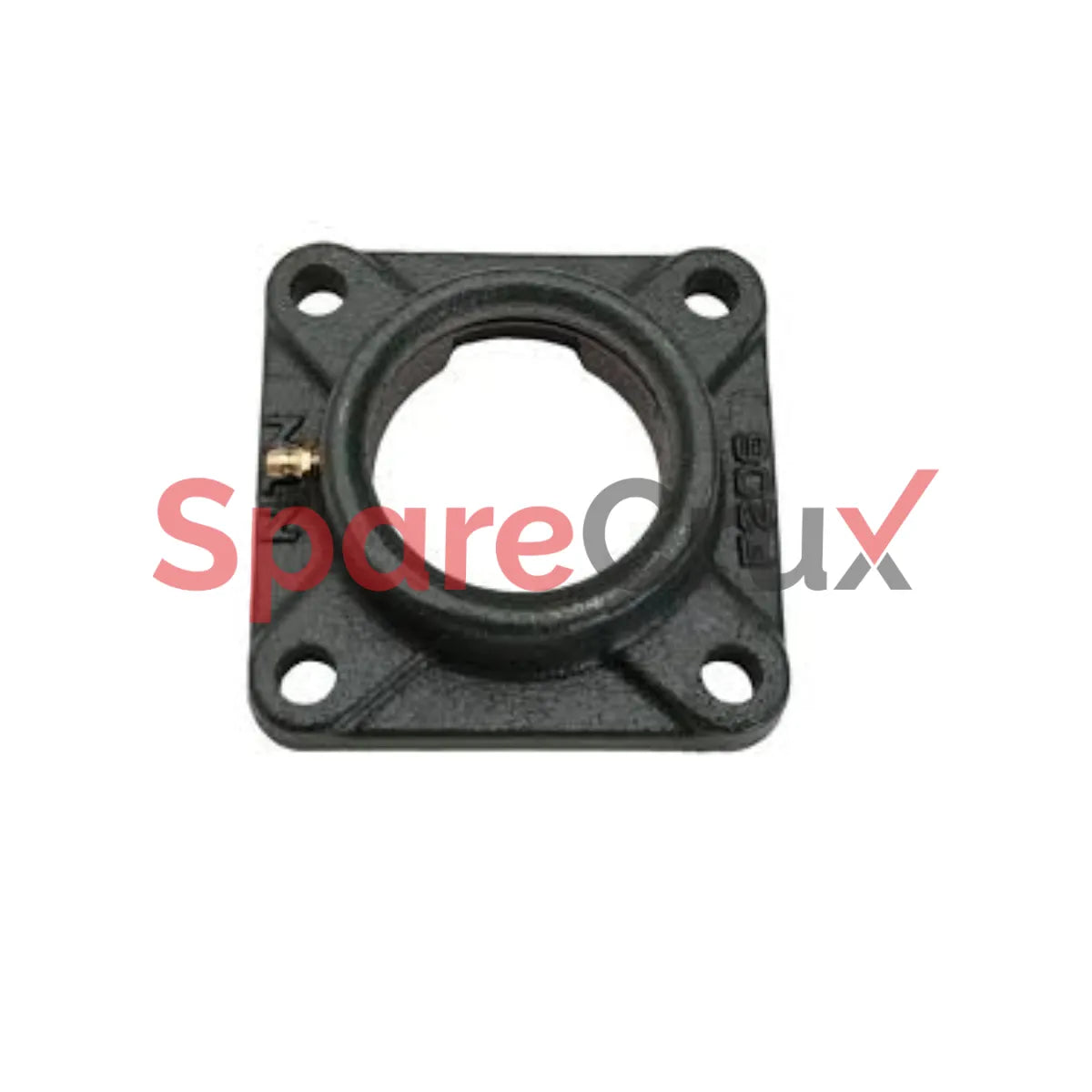

F204D1 | NTN | Flange-Mount Housing

₹ 3,101.53

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

F204D1

Original Equipment Manufacturer

NTN

Description

Specification Details
Mounting Type Four-Bolt Flange
Housing Construction Solid
Compatible Bore Diameter 0.8125 in, 0.8750 in, 0.9375 in, 1.0000 in
Bolt Center To Center Length 2.5156 in
Bolt Circle Diameter 3.0000 in
Overall Length Diameter 3.7500 in
Compatible Bearing Type Ball Bearing
Housing Material Cast Iron
Finish Coating Uncoated
Overall Depth 43.7 mm
Compatible Bearing Series Part Num UC201-008D1, UC202-009D1, UC202-010D1, UC204-012D1, UEL204-012D1
Series F
UPC No. 4547359474077
Weight 0.99 lbs
Product Type Flange-Mount Housings
NTN

F204D1 | NTN | Flange-Mount Housing

₹ 3,101.53
Specification Details
Mounting Type Four-Bolt Flange
Housing Construction Solid
Compatible Bore Diameter 0.8125 in, 0.8750 in, 0.9375 in, 1.0000 in
Bolt Center To Center Length 2.5156 in
Bolt Circle Diameter 3.0000 in
Overall Length Diameter 3.7500 in
Compatible Bearing Type Ball Bearing
Housing Material Cast Iron
Finish Coating Uncoated
Overall Depth 43.7 mm
Compatible Bearing Series Part Num UC201-008D1, UC202-009D1, UC202-010D1, UC204-012D1, UEL204-012D1
Series F
UPC No. 4547359474077
Weight 0.99 lbs
Product Type Flange-Mount Housings
