SPARECRUX is NOT an authorized distributor for IFM ELECTRONIC

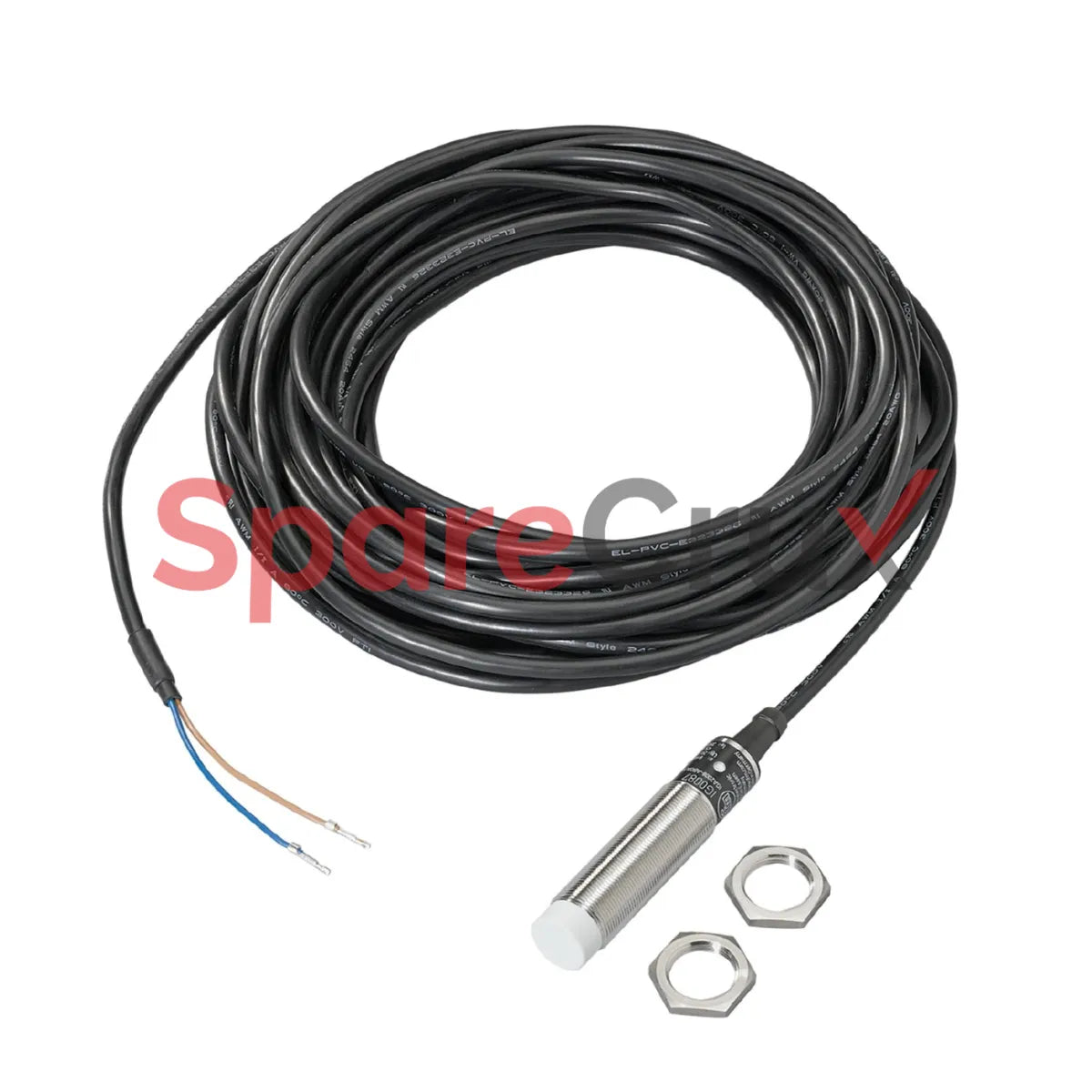

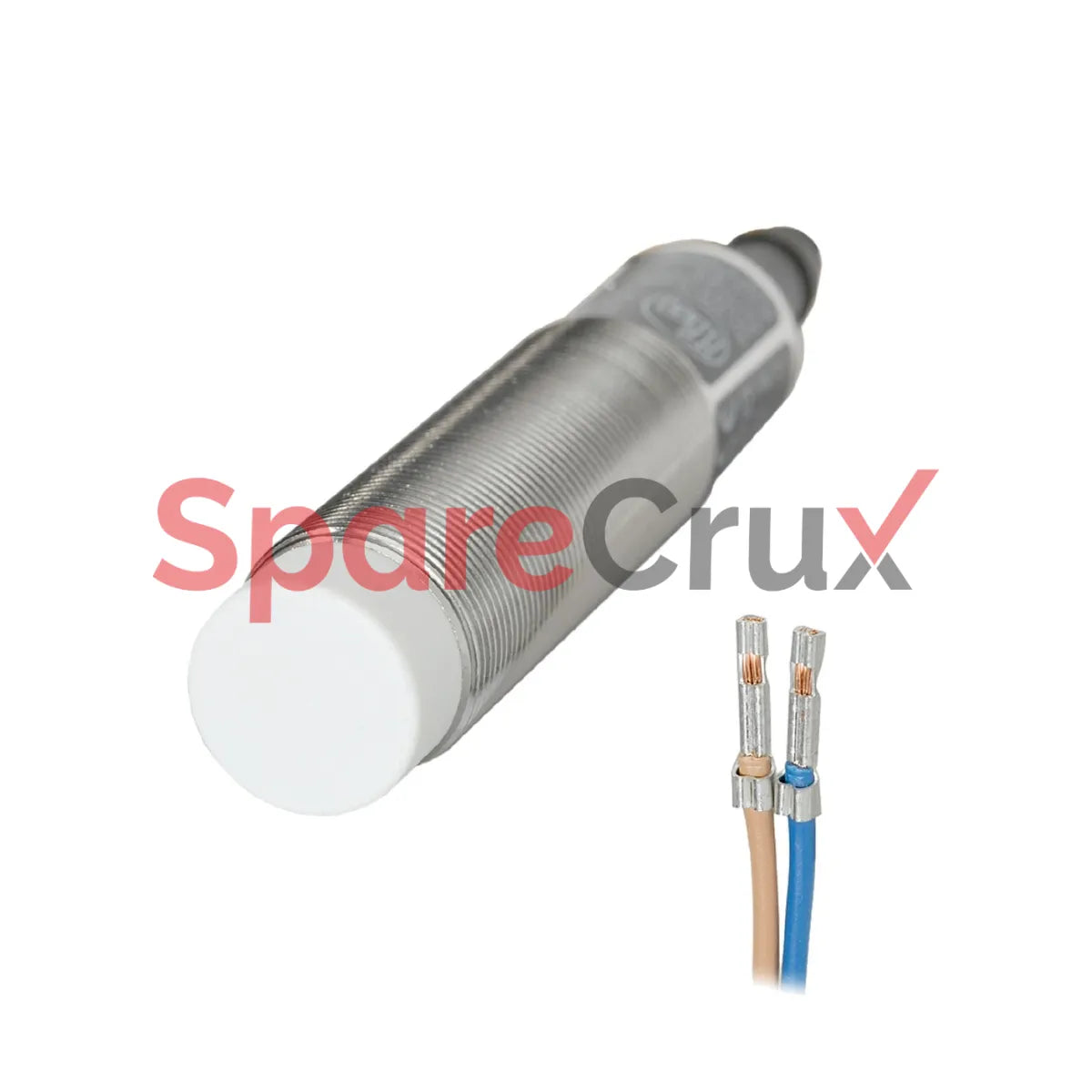

IG0062 | IFM ELECTRONIC | Inductive Sensor

₹ 9,921.60

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

IG0062

Original Equipment Manufacturer

IFM ELECTRONIC

Description
Parameter Value
Output Function Normally open
Sensing Range [mm] 8
Real Sensing Range Sr [mm] 8 ± 10%
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 80
Operating Voltage [V] 20...250 AC/DC
Protection Class II
Reverse Polarity Protection No
Max. Voltage Drop (DC) [V] 6
Max. Voltage Drop (AC) [V] 6.5
Minimum Load Current [mA] 5
Max. Leakage Current [mA] 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent Current Rating (AC) [mA] 250; (350 up to 50 °C)
Permanent Current Rating (DC) [mA] 100
Short-Time Current Rating [mA] 2200; (20 ms / 0.5 Hz)
Ambient Temperature [°C] -25...80
Protection IP67
