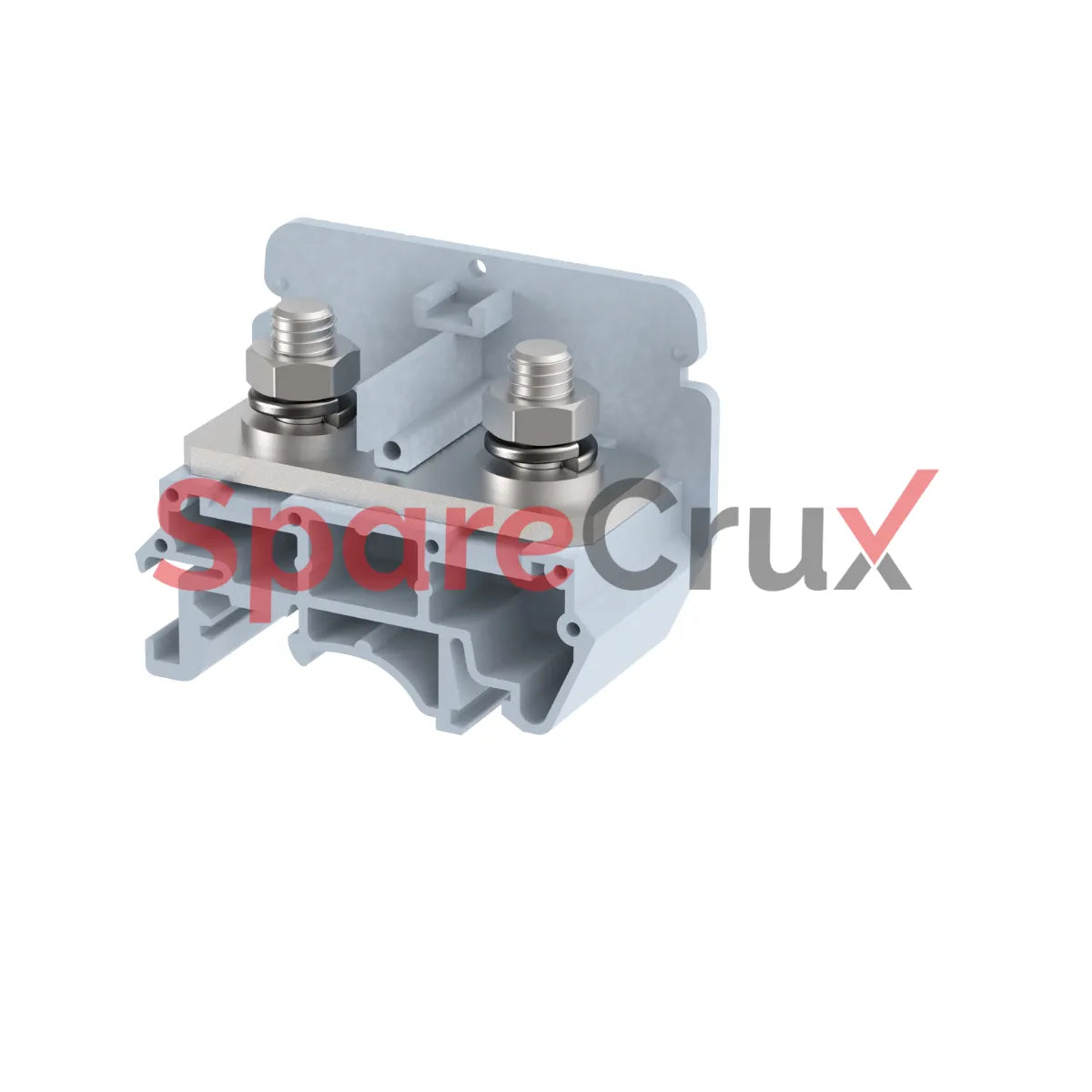

KBT 100 | ELMEX | Feed-through Power Terminal Block

₹ 1,912.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KBT 100

Original Equipment Manufacturer

ELMEX

Description

Type Feed-through Power Terminal Block
Voltage Rating 800 V (Tested at 1100 V)
Current Rating 125 A
Wire Size Stranded Wire: 6 mm² to 35 mm²
Solid Wire: 35 mm²
Torque 2.5 Nm
Mounting Type TS 35/7.5, TS 35/15, TS 32 DIN Rail
Material Polyamide 6.6 Housing, Brass Clamping Material
Standard Color Gray
Height 41.4 mm
Width 52 mm
Thickness 26 mm
ELMEX

KBT 100 | ELMEX | Feed-through Power Terminal Block

₹ 1,912.00
Type Feed-through Power Terminal Block
Voltage Rating 800 V (Tested at 1100 V)
Current Rating 125 A
Wire Size Stranded Wire: 6 mm² to 35 mm²
Solid Wire: 35 mm²
Torque 2.5 Nm
Mounting Type TS 35/7.5, TS 35/15, TS 32 DIN Rail
Material Polyamide 6.6 Housing, Brass Clamping Material
Standard Color Gray
Height 41.4 mm
Width 52 mm
Thickness 26 mm
