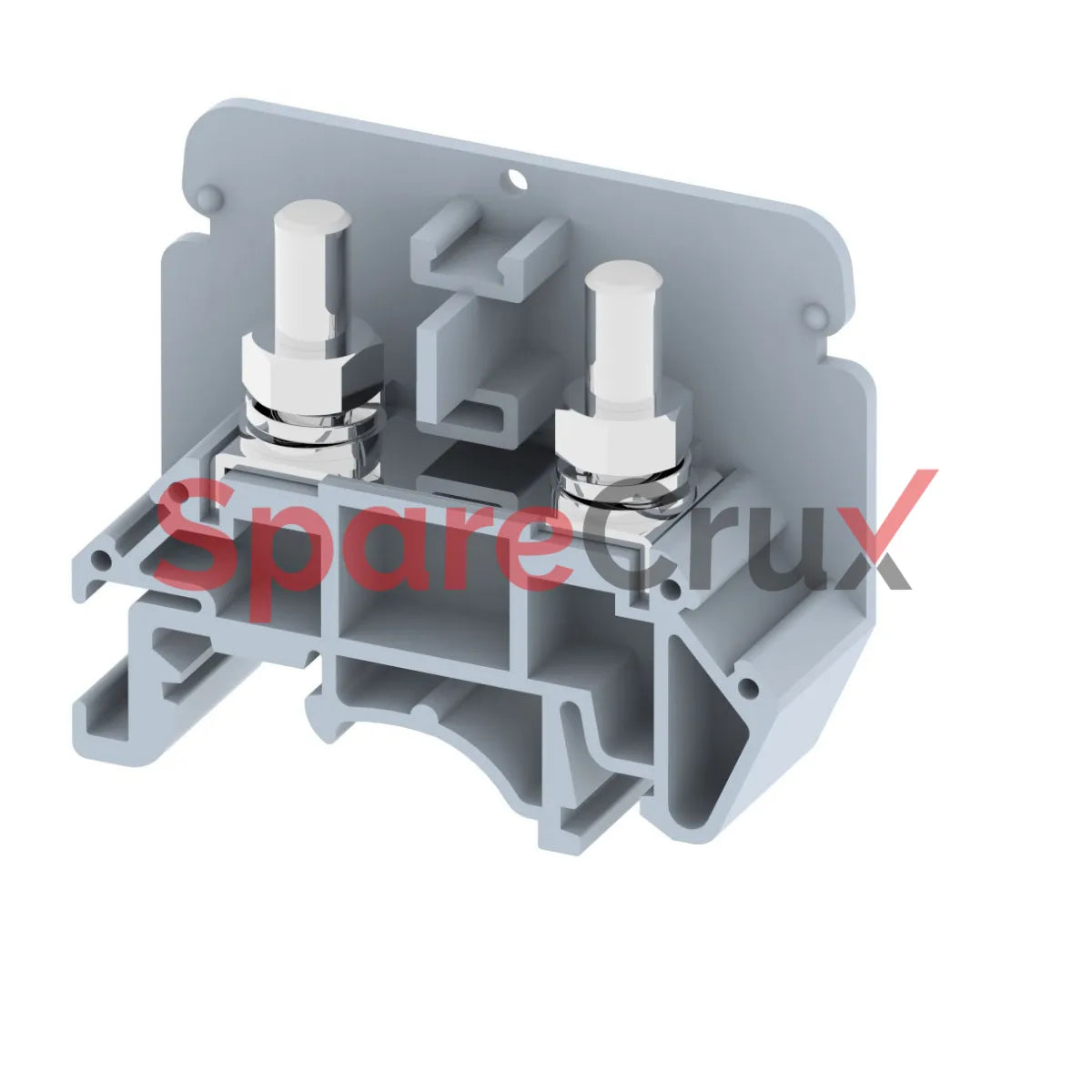

KBTM5-15 | ELMEX | Feed-Through Terminal Block

₹ 2,601.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KBTM5-15

Original Equipment Manufacturer

ELMEX

Description
Type Feed-Through Terminal Block
Connection Method Bolt Connection (Nut Driver Operated)
Mounting Type TS 35/7.5, TS 35/15, TS 32 DIN Rail
Housing Material Polyamide 6.6
Clamping Material Brass
Standard Color Gray
Nominal Voltage 800 V (Tested at 1100 V)
Nominal Current 76 A
Rated Cross-Section 16 mm²
Wire Size Range 0.5 mm² to 16 mm² (both stranded and solid wires)
Short-Time Withstand Current 1.92 kA
Rated Impulse Withstand Voltage 8 kV
Width 50 mm
Height 41.4 mm
Thickness 15 mm
