SPARECRUX is an authorized distributor for HENSEL ELECTRIC

KG 9003 IN | HESNEL | Empty Box IP66

₹ 2,292.00

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KG 9003 IN

Original Equipment Manufacturer

HENSEL ELECTRIC

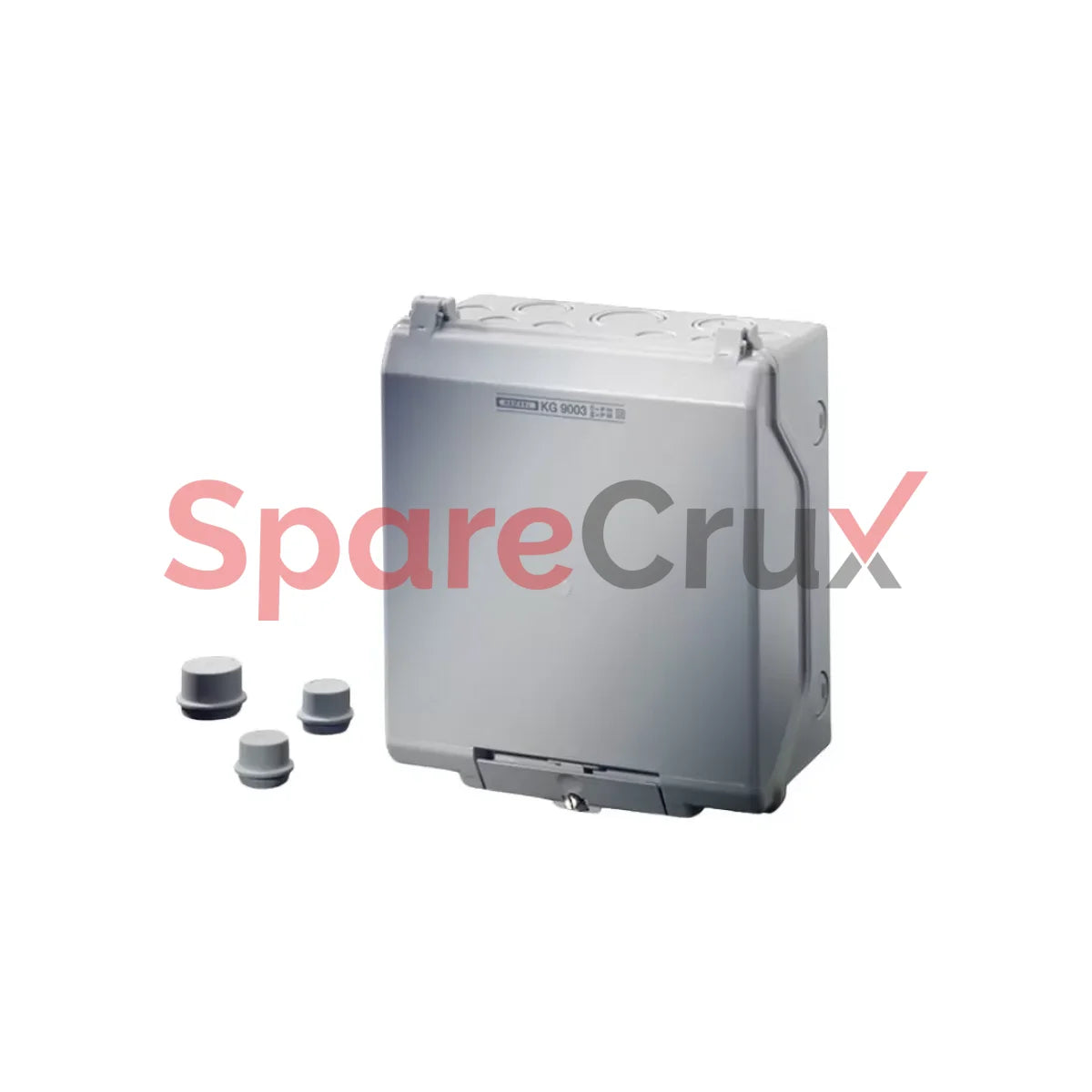

Description

KG 9003 IN

  • Built-in dimensions W 182 x H 205 x D 95 mm
  • for installation equipment on DIN rails or mounting plates (order separately)
  • max. installation depth with built-in mounting plate 95 mm,
    with built-in DIN rail 89 mm
  • with opaque hinged lid
  • fastener for tool operation
  • sealable
  • cable entry via metric knockouts
  • included cable entry:2 ESM 25, sealing range Ø 9-17 mm and 1 ESM 32, sealing range Ø 9-23 mm
  • colour: grey, RAL 7035
  • material: PS (polystyrene

Technical Data

rated insulation voltage Ui = 1000 V a.c./d.c.
impact strength IK 08 (5 Joule)
static load mounting plate or DIN rail = 1.6 kg
lid = 1.6 kg
power dissipation capability at Δϑ = 40 K Pde = 17.6 watts
wall thickness enclosure = 3 mm
lid = 3 mm
protection class II
material PS (Polystyrene)
width 217 mm
height 253 mm
depth 115 mm
weight 0,66 kg
in accordance with IEC 62208:2011
Kg 9003 In | Hesnel Empty Box Ip66
HENSEL ELECTRIC

KG 9003 IN | HESNEL | Empty Box IP66

₹ 2,292.00

KG 9003 IN

Technical Data

rated insulation voltage Ui = 1000 V a.c./d.c.
impact strength IK 08 (5 Joule)
static load mounting plate or DIN rail = 1.6 kg
lid = 1.6 kg
power dissipation capability at Δϑ = 40 K Pde = 17.6 watts
wall thickness enclosure = 3 mm
lid = 3 mm
protection class II
material PS (Polystyrene)
width 217 mm
height 253 mm
depth 115 mm
weight 0,66 kg
in accordance with IEC 62208:2011
