SPARECRUX is NOT an authorized distributor for BECKHOFF

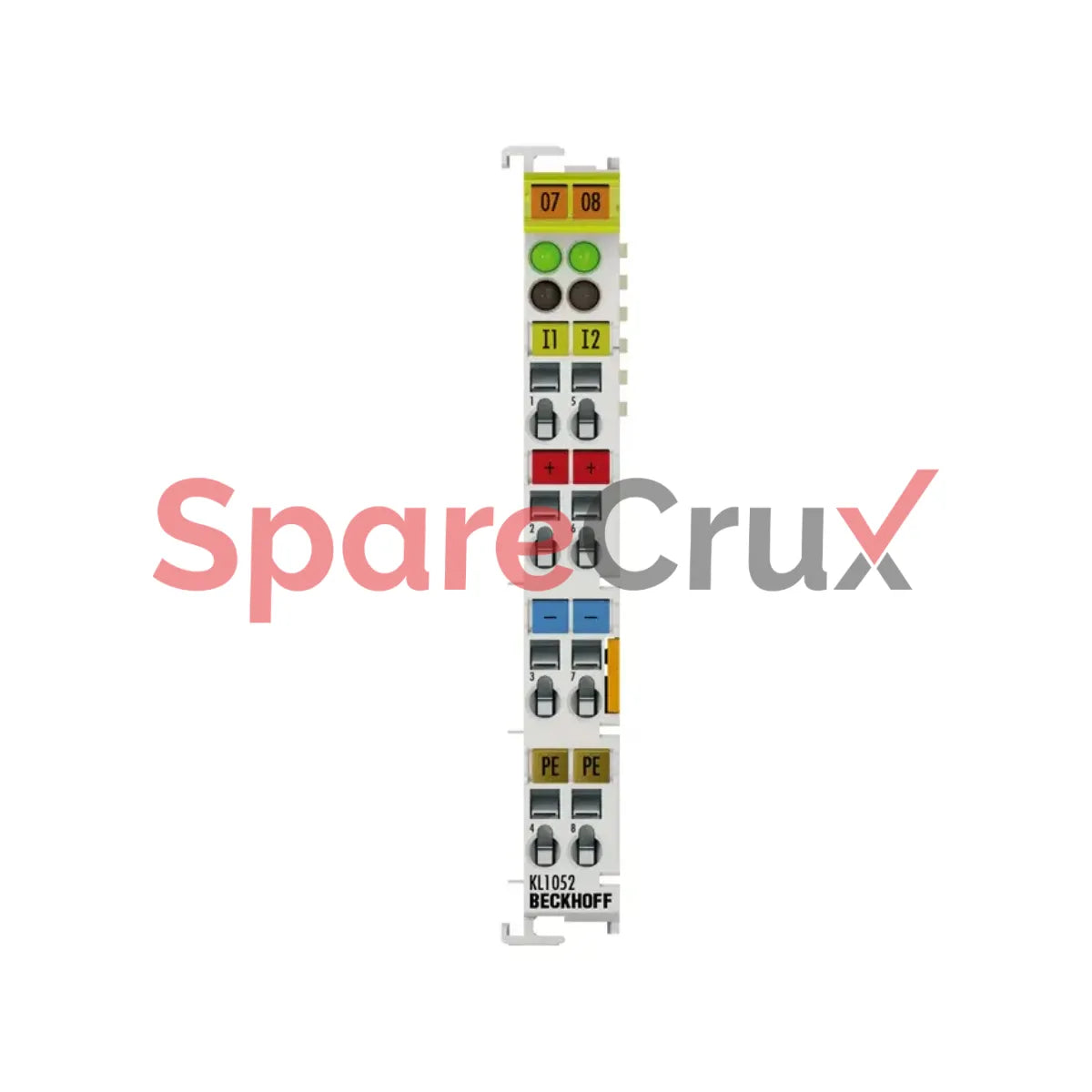

KL1052 | BECKHOFF | Bus Terminal, 2-channel Digital Input, 24 V DC, 3 ms, Positive/ground Switching

₹ 1,649.15

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KL1052

Original Equipment Manufacturer

BECKHOFF

Description
Connection technology 4-wire
Specification positive/ground switching
Number of inputs 2
Nominal voltage 24 V DC (-15%/+20%)
“0” signal voltage 7.6…17.4 V
“1” signal voltage 0…7 V and 18…30 V
Input filter typ. 3.0 ms
Input current typ. 3 mA
Current consumption K-bus typ. 8 mA
Electrical isolation 500 V (K-bus/field potential)
Bit width in the process image 2 inputs
Configuration no address or configuration setting
Weight approx. 50 g
Operating temperature 0…55°C
Storage temperature -25…+85°C
Relative humidity 95%, no condensation
BECKHOFF

KL1052 | BECKHOFF | Bus Terminal, 2-channel Digital Input, 24 V DC, 3 ms, Positive/ground Switching

₹ 1,649.15
Connection technology 4-wire
Specification positive/ground switching
Number of inputs 2
Nominal voltage 24 V DC (-15%/+20%)
“0” signal voltage 7.6…17.4 V
“1” signal voltage 0…7 V and 18…30 V
Input filter typ. 3.0 ms
Input current typ. 3 mA
Current consumption K-bus typ. 8 mA
Electrical isolation 500 V (K-bus/field potential)
Bit width in the process image 2 inputs
Configuration no address or configuration setting
Weight approx. 50 g
Operating temperature 0…55°C
Storage temperature -25…+85°C
Relative humidity 95%, no condensation
