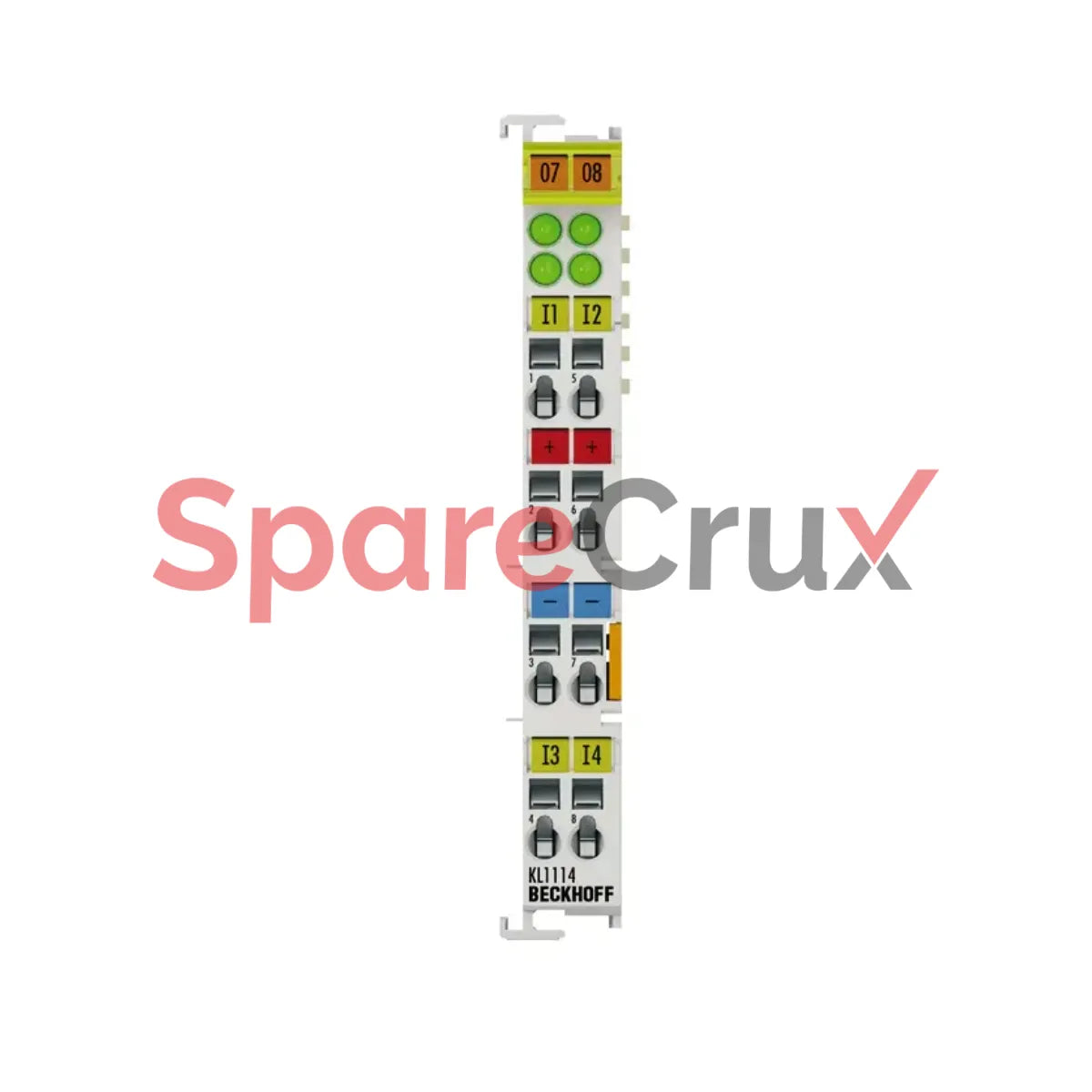

KL-1114 | BECKHOFF | Bus Terminal, 4-channel Digital Input, 24 V DC, 0.2 ms, 2-/3-wire Connection

₹ 4,889.63

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KL1114

Original Equipment Manufacturer

BECKHOFF

Description

Connection technology 2-/3-wire
Specification EN 61131-2, type 1
Number of inputs 4
Nominal voltage 24 V DC (-15%/+20%)
“0” signal voltage -3…+5 V
“1” signal voltage 15…30 V
Input filter typ. 0.2 ms
Input current typ. 5 mA
Current consumption K-bus typ. 5 mA
Electrical isolation 500 V (K-bus/field potential)
Bit width in the process image 4 inputs
Configuration no address or configuration setting
Weight approx. 55 g
Operating temperature -25…+60°C
Storage temperature -40…+85°C
BECKHOFF

KL-1114 | BECKHOFF | Bus Terminal, 4-channel Digital Input, 24 V DC, 0.2 ms, 2-/3-wire Connection

₹ 4,889.63
Connection technology 2-/3-wire
Specification EN 61131-2, type 1
Number of inputs 4
Nominal voltage 24 V DC (-15%/+20%)
“0” signal voltage -3…+5 V
“1” signal voltage 15…30 V
Input filter typ. 0.2 ms
Input current typ. 5 mA
Current consumption K-bus typ. 5 mA
Electrical isolation 500 V (K-bus/field potential)
Bit width in the process image 4 inputs
Configuration no address or configuration setting
Weight approx. 55 g
Operating temperature -25…+60°C
Storage temperature -40…+85°C
