SPARECRUX is NOT an authorized distributor for BECKHOFF

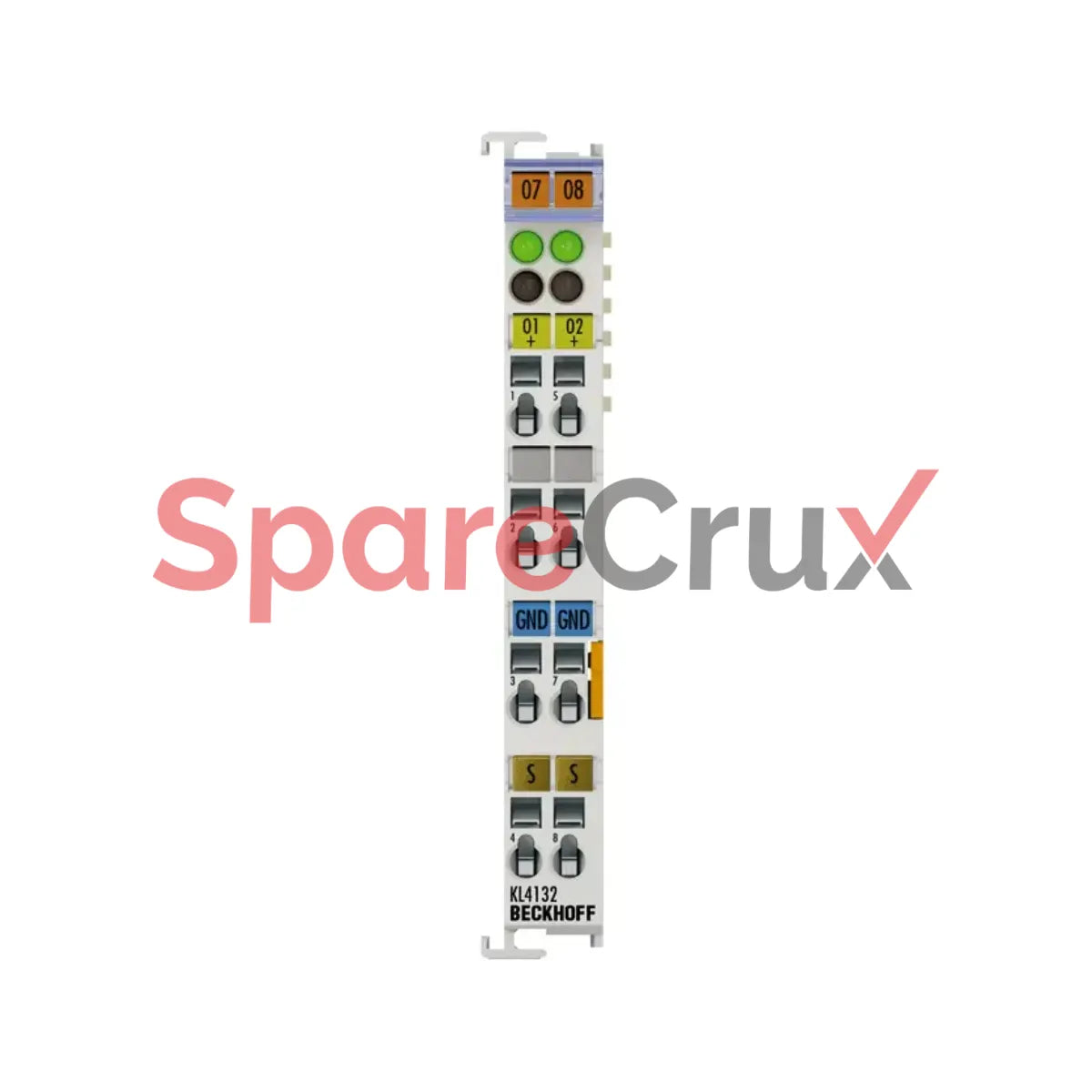

KL4132 | BECKHOFF | Bus Terminal, 2-channel Analog Output, Voltage, ±10 V, 16 Bit, Differential

₹ 24,000.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KL4132

Original Equipment Manufacturer

BECKHOFF

Description
Technology single-ended
Number of outputs 2
Power supply via the K-bus
Signal voltage -10…+10 V
Load > 5 kΩ (short-circuit proof)
Output error < ±0.1% (relative to end value)
Resolution 16 bit
Conversion time ~ 1.5 ms
Electrical isolation 500 V (K-bus/signal voltage)
Current consumption power contacts – (no power contacts)
Current consumption K-bus typ. 75 mA
Bit width in the process image output: 2 x 16 bit data (2 x 8 bit control/status optional)
Configuration no address or configuration setting
Special features increased resolution
Weight approx. 85 g
Operating temperature 0…55°C
BECKHOFF

KL4132 | BECKHOFF | Bus Terminal, 2-channel Analog Output, Voltage, ±10 V, 16 Bit, Differential

₹ 24,000.00
Technology single-ended
Number of outputs 2
Power supply via the K-bus
Signal voltage -10…+10 V
Load > 5 kΩ (short-circuit proof)
Output error < ±0.1% (relative to end value)
Resolution 16 bit
Conversion time ~ 1.5 ms
Electrical isolation 500 V (K-bus/signal voltage)
Current consumption power contacts – (no power contacts)
Current consumption K-bus typ. 75 mA
Bit width in the process image output: 2 x 16 bit data (2 x 8 bit control/status optional)
Configuration no address or configuration setting
Special features increased resolution
Weight approx. 85 g
Operating temperature 0…55°C
