SPARECRUX is NOT an authorized distributor for ELMEX

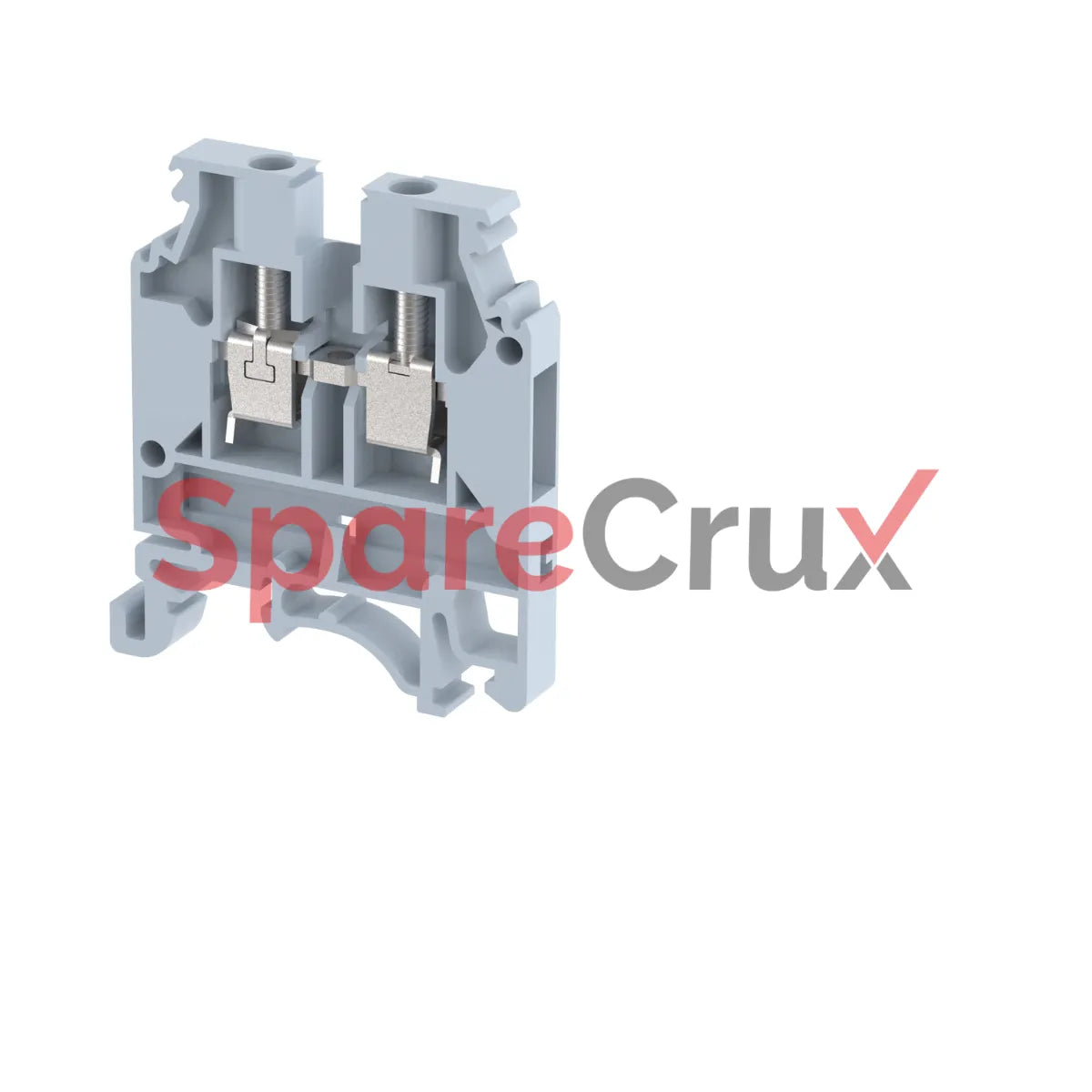

KUT4N | ELMEX | Feed-Through Terminal Block with Screw Connection

₹ 240.13

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KUT4N

Original Equipment Manufacturer

ELMEX

Description

Type Feed-through terminal block with screw connection
Housing Material Polyamide 6.6
Clamping Material Cold Rolled Close Annealed (CRCA)
Standard Color Gray (also available in Red, Yellow, Blue, Black, Green, Khaki)
Mounting Type DIN Rail (TS 35/7.5, TS 35/15, TS 32)
Conductor Size (Solid Wire) 0.5 mm² to 4 mm² (20 AWG to 10 AWG)
Conductor Size (Stranded Wire) 0.5 mm² to 4 mm² (20 AWG to 10 AWG)
Rated Voltage (IEC Standard) 1000 V AC/DC
Rated Voltage (UL Standard) 600 V
Rated Current (IEC Standard) 32 A
Rated Current (UL Standard) 30 A
Rated Cross-Section 4 mm²
Short-Time Withstand Current 0.48 kA
Rated Impulse Withstand Voltage 12 kV
ELMEX

KUT4N | ELMEX | Feed-Through Terminal Block with Screw Connection

₹ 240.13
Type Feed-through terminal block with screw connection
Housing Material Polyamide 6.6
Clamping Material Cold Rolled Close Annealed (CRCA)
Standard Color Gray (also available in Red, Yellow, Blue, Black, Green, Khaki)
Mounting Type DIN Rail (TS 35/7.5, TS 35/15, TS 32)
Conductor Size (Solid Wire) 0.5 mm² to 4 mm² (20 AWG to 10 AWG)
Conductor Size (Stranded Wire) 0.5 mm² to 4 mm² (20 AWG to 10 AWG)
Rated Voltage (IEC Standard) 1000 V AC/DC
Rated Voltage (UL Standard) 600 V
Rated Current (IEC Standard) 32 A
Rated Current (UL Standard) 30 A
Rated Cross-Section 4 mm²
Short-Time Withstand Current 0.48 kA
Rated Impulse Withstand Voltage 12 kV
