SPARECRUX is an authorized distributor for HENSEL ELECTRIC

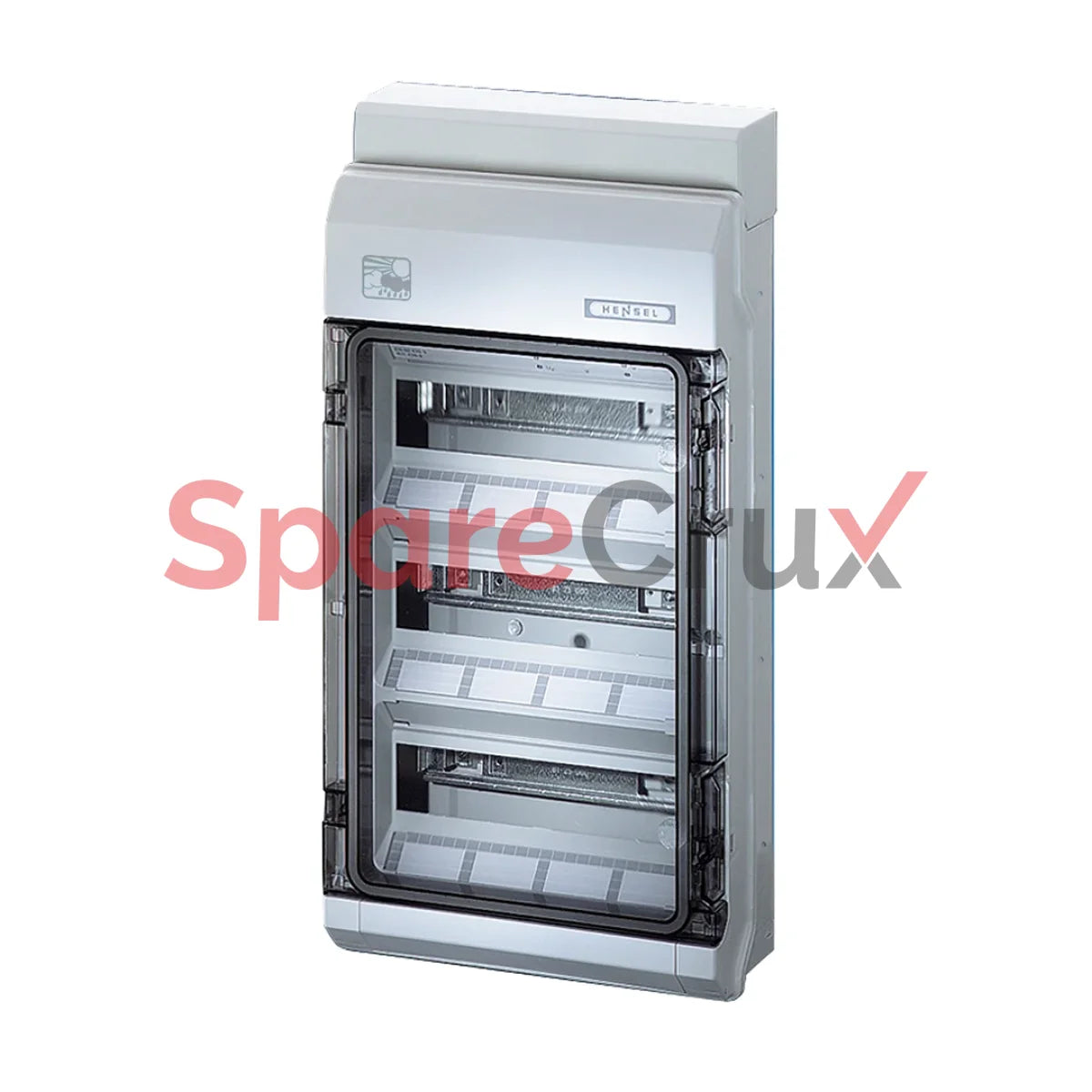

KV PC 9336 | HENSEL | Distribution Box IP 65

₹ 13,384.00

  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

KV PC 9336

Original Equipment Manufacturer

HENSEL ELECTRIC

Description

KV PC 9336

  • 36 modules: 3 x 12 x 18 mm
  • 3-row
  • Cable entry via integrated elastic membranes
  • Per PE/N number x cross section 6 x 25 mm², 24 x 4 mm² Cu, FIXCONNECT® terminal technology, for terminal technology refer to technical data
  • N separable, up to 4 different potentials
  • For indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor)
  • For the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
  • With transparent door
  • For door locking device and sealing device refer to accessories
  • With cable entry cover
  • With blanking strips for unused DIN rail openings
  • Lateral enclosure connections can be managed by drilling
  • Degree of protection: IP 65
  • Colour: grey, RAL 7035

Technical Data

rated insulation voltage Ui = 400 V A.C.
power dissipation capability Pde = 35 watts at 30 K according to EN 60670-24
permissible power dissipation Pzul = 28 watts at 30 K according to DIN 43871
protection class II
material PC (Polycarbonate)

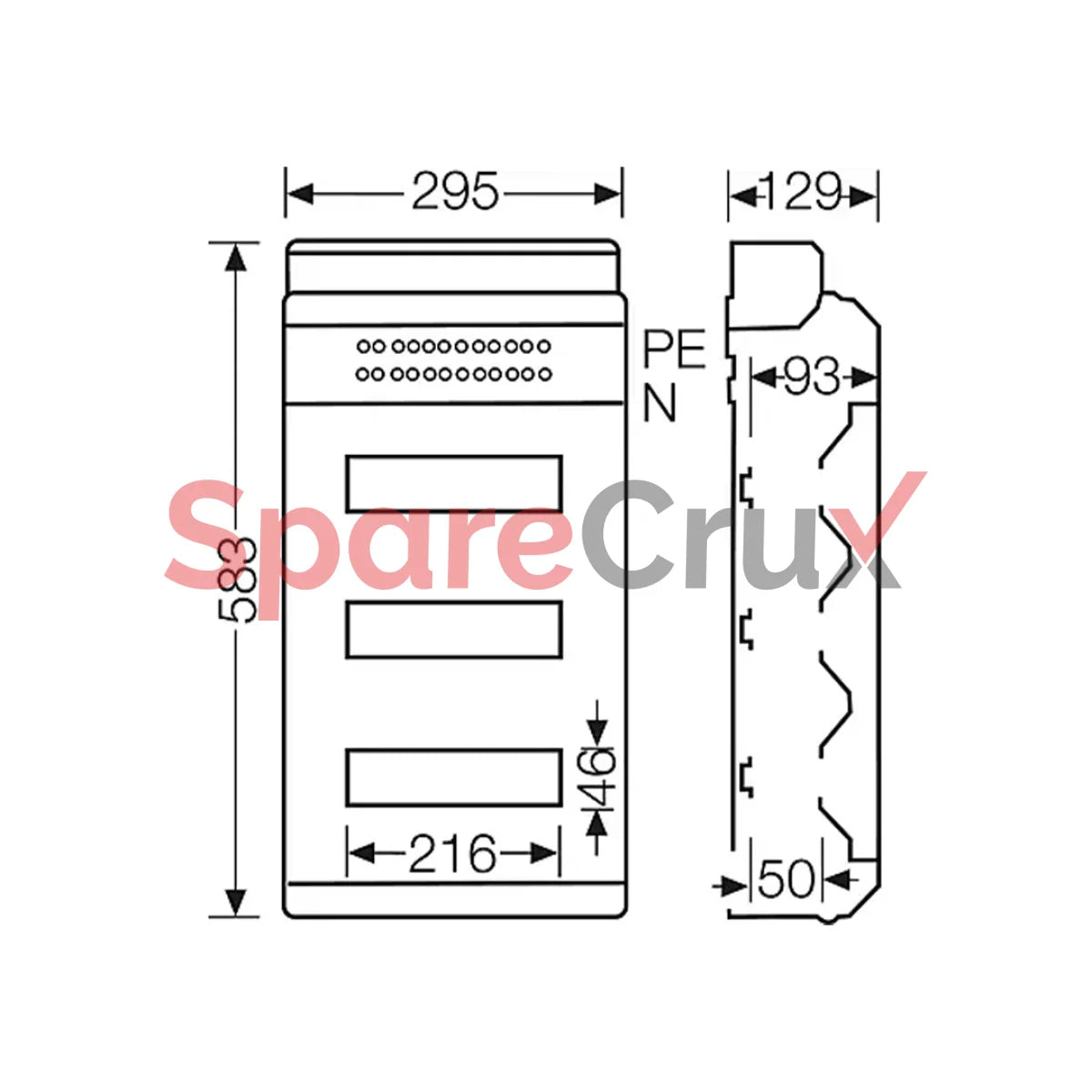

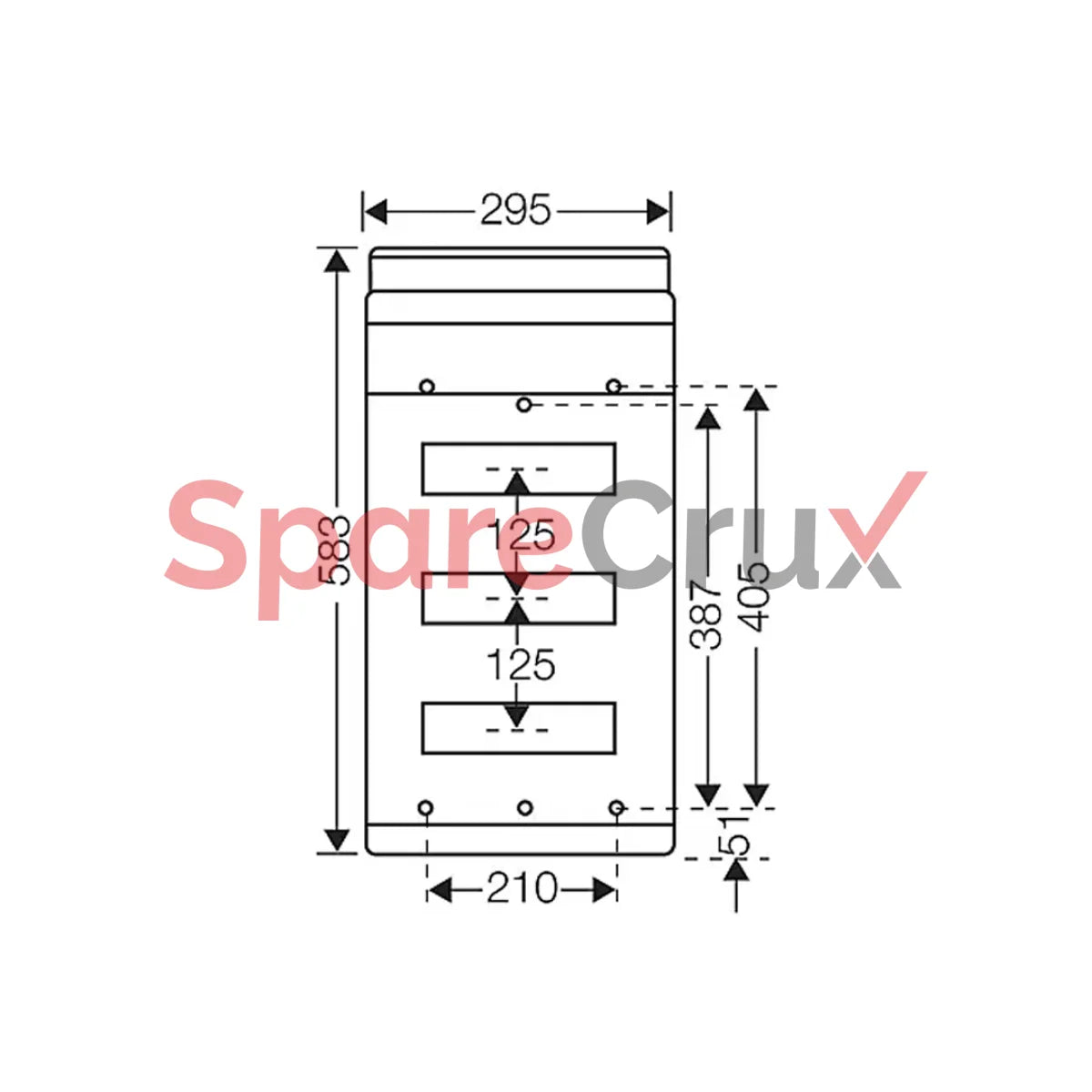

width 295 mm
height 583 mm
depth 129 mm
weight 3,67 kg
