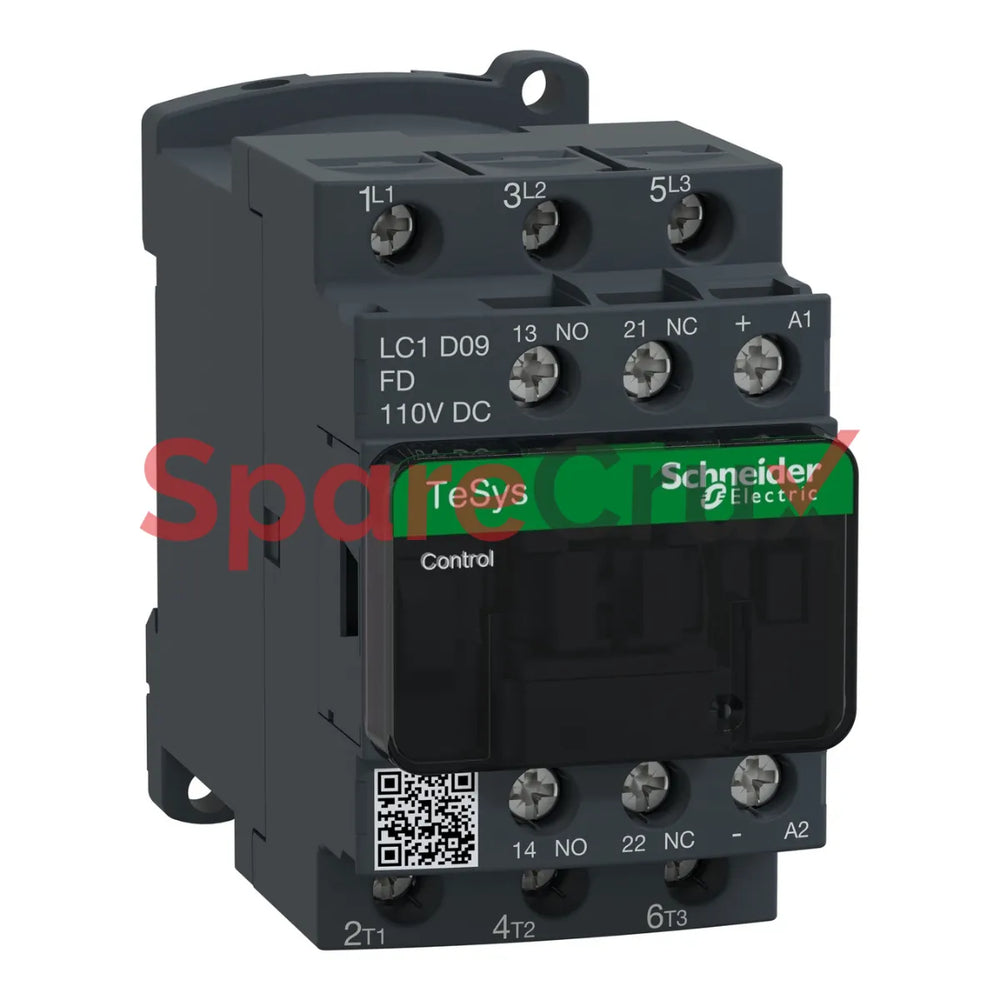

LC1D09FD | SCHNEIDER ELECTRIC | TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 110 V DC coil

₹ 10,450.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

LC1D09FD

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description
Type Non-reversing Contactor
Series TeSys D
Poles 3P (3 NO)
Rated Operational Current (Ie) 9 A at AC-3 ≤ 440 V
Motor Power Rating 4 kW at 380–400 V AC; 5.5 kW at 500 V AC; 5.5 kW at 660–690 V AC
Control Circuit Voltage (Uc) 110 V DC
Auxiliary Contacts 1 NO + 1 NC (mechanically linked)
Rated Insulation Voltage (Ui) 690 V (IEC); 600 V (UL/CSA)
Rated Impulse Withstand Voltage (Uimp) 6 kV
Conventional Free-Air Thermal Current (Ith) 25 A at 60°C (power circuit); 10 A at 60°C (signalling circuit)
Rated Short-Time Withstand Current (Icw) 105 A for 10 s at 40°C (power circuit); 100 A for 1 s at 40°C (signalling circuit)
Electrical Durability 2 million cycles at 9 A AC-3
Mechanical Durability 30 million cycles
Operating Time Closing: 53.55–72.45 ms; Opening: 16–24 ms
Operating Rate Up to 3600 cycles/hour
Mounting DIN rail or plate mounting
Dimensions (L × W × D) 95 mm × 45 mm × 77 mm
Weight 0.48 kg
Environmental Compliance RoHS compliant; Packaging made with recycled cardboard (minimum 70%)
Certifications IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No. 14, CCC, EAC
