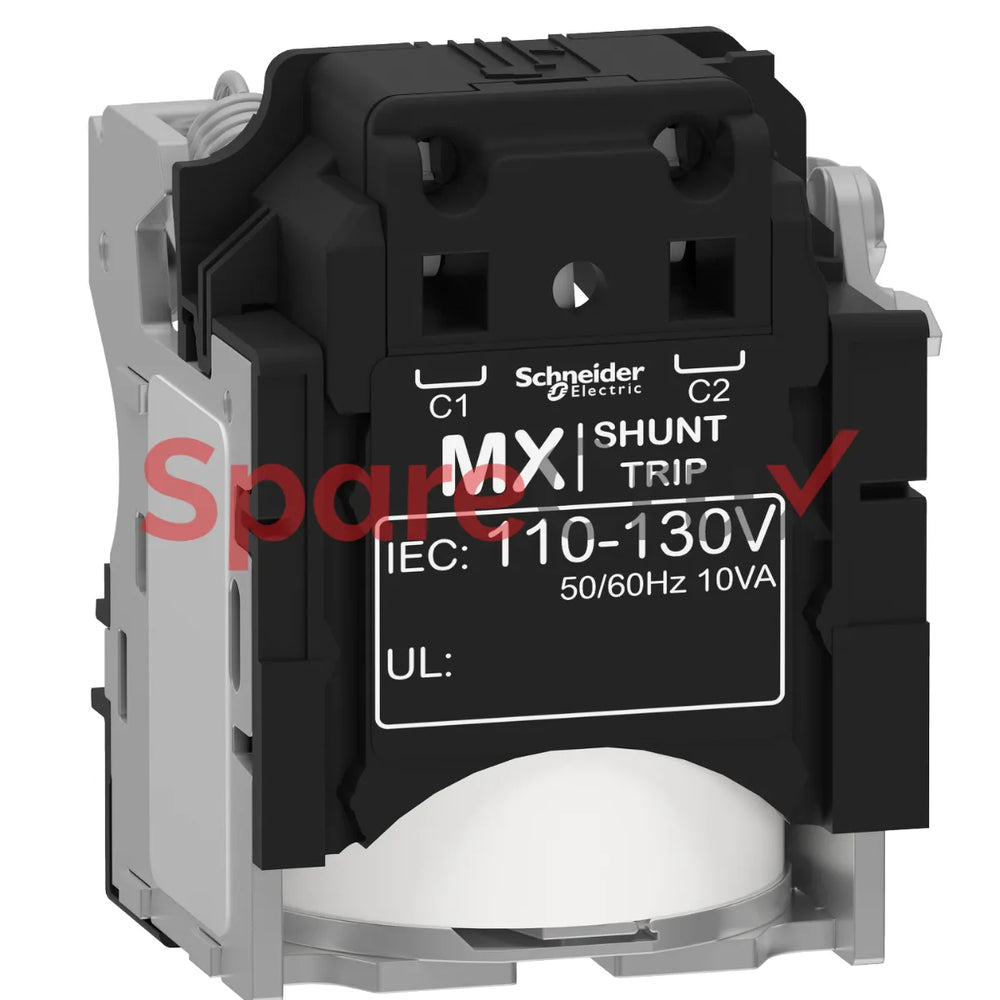

LV429386 | SCHNEIDER ELECTRIC | MX shunt trip release, Compact NSX, PowerPact Multistandard, EasyPact CVS, rated voltage 110 to 130 VAC 50/60 Hz

₹ 2,343.65

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

LV429386

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description

Product Specifications
Range ComPacT
Device short name MX
Product or component type Voltage release
Device application Control
Voltage release type Opening coil, Shunt trip release
[Uc] control circuit voltage 110...130 V AC 50/60 Hz
Operating threshold 0.7...1.1 x Un opening
Response time 50 ms
Control signal type Maintained, Impulse
Impulse duration >= 20 ms
Supply inrush power 10 VA
Auxiliary connection terminal Spring 0.5…1.5 mm² (AWG 20...AWG 16)
Wire stripping length 7 mm
