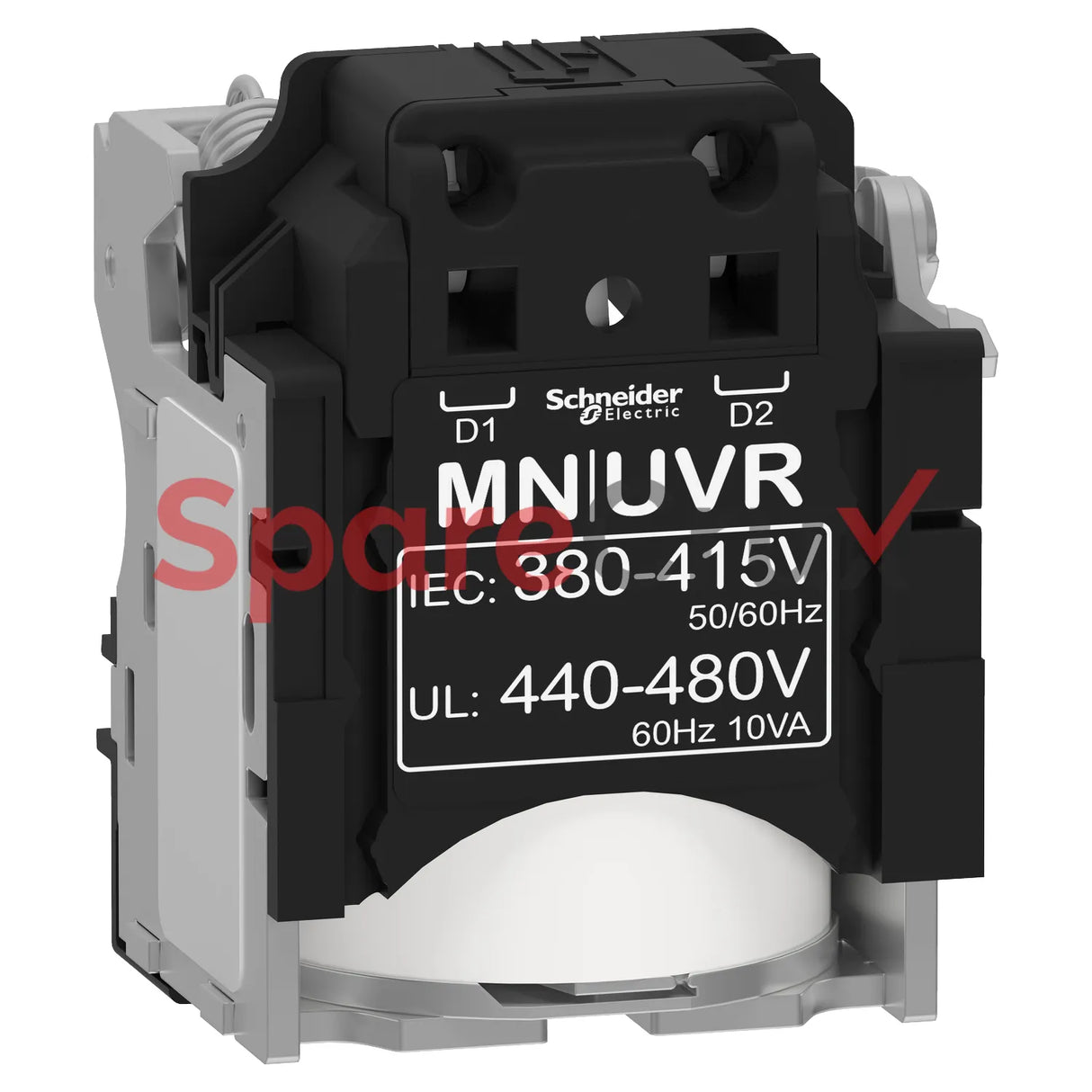

LV429408 | SCHNEIDER ELECTRIC | Undervoltage Release Module for Circuit Breakers (380-480 V AC)

₹ 6,650.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

LV429408

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Description

Type Undervoltage Release (MN)
Compatibility ComPact NSX, PowerPact Multistandard, EasyPact CVS circuit breakers
Control Circuit Voltage (Uc) 380–415 V AC at 50/60 Hz; 440–480 V AC at 60 Hz
Voltage Release Type Opening coil (Undervoltage release)
Operating Threshold 35% to 70% of rated voltage (Un) for opening; 85% of rated voltage (Un) for closing
Response Time 50 ms
Supply Holding Power 5 VA
Supply Inrush Power 10 VA
Auxiliary Connection Terminal Spring terminal, 0.5–1.5 mm² (AWG 20–AWG 16)
Wire Stripping Length 7 mm
Compliance IEC 60947-2, UL Listed, CSA Certified
Environmental Compliance RoHS and REACh compliant
