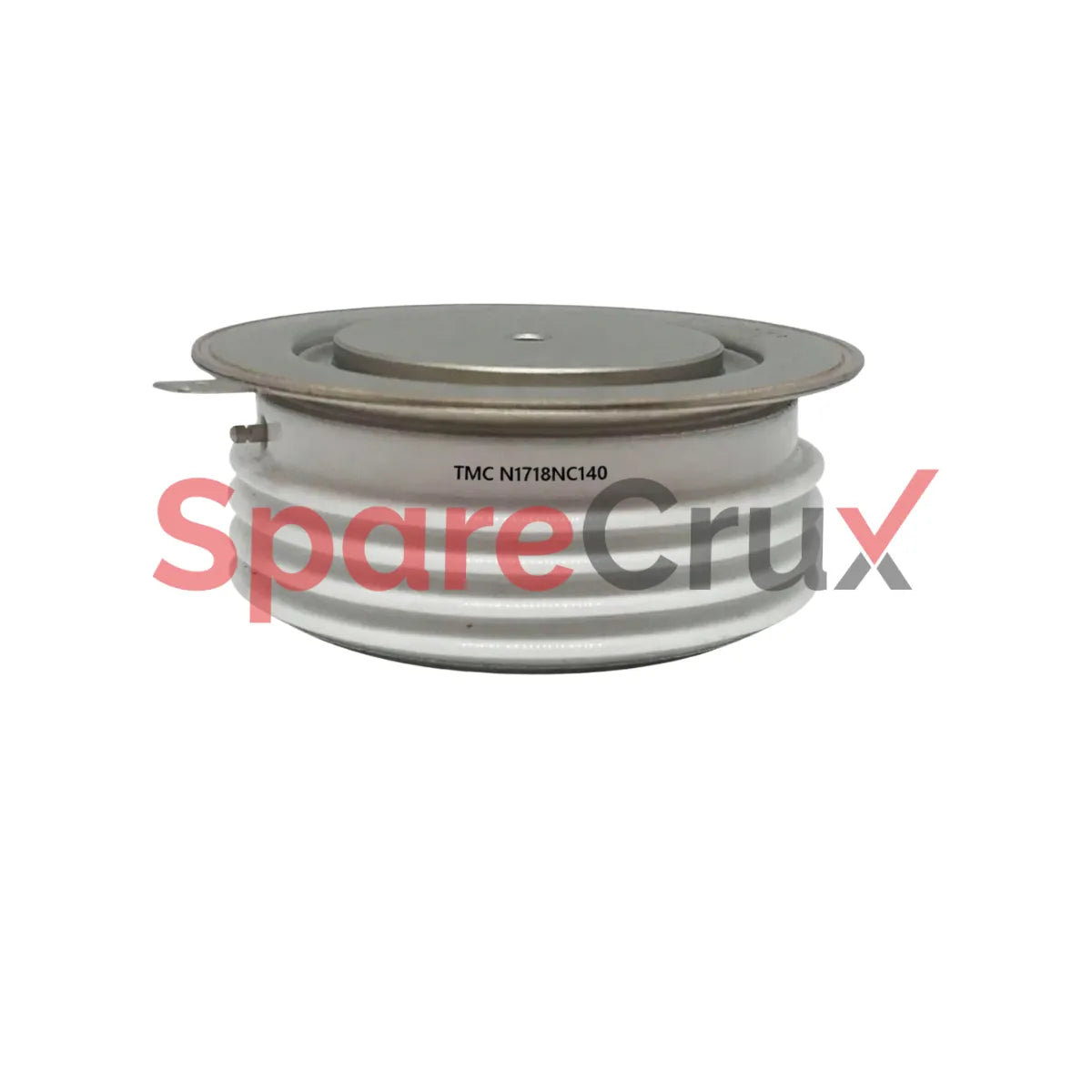

N1718NC140 | IXYS CORPORATION | Phase Control Thyristor

₹ 14,632.79

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

N1718NC140

Original Equipment Manufacturer

IXYS CORPORATION

Description
Type Phase Control Thyristor
Package Westcode Capsule
Repetitive Peak Off-State Voltage (VDRM) 1400 V
Non-Repetitive Peak Off-State Voltage (VDSM) 1400 V
Repetitive Peak Reverse Voltage (VRRM) 1400 V
Non-Repetitive Peak Reverse Voltage (VRSM) 1400 V
Maximum Average On-State Current (IT(AV)) 1718 A at 55°C
Maximum RMS On-State Current (IT(RMS)) 3450 A
Maximum DC On-State Current (IT(d.c.)) 2852 A
Peak Non-Repetitive Surge Current (ITSM) 27.2 kA (10ms pulse)
Thermal Resistance Junction to Case (RthJC) 0.65 K/W
Thermal Resistance Case to Heat Sink (RthCH) 0.1 K/W
Operating Temperature Up to 85°C
Mounting Style Screw Mount
IXYS CORPORATION

N1718NC140 | IXYS CORPORATION | Phase Control Thyristor

₹ 14,632.79
Type Phase Control Thyristor
Package Westcode Capsule
Repetitive Peak Off-State Voltage (VDRM) 1400 V
Non-Repetitive Peak Off-State Voltage (VDSM) 1400 V
Repetitive Peak Reverse Voltage (VRRM) 1400 V
Non-Repetitive Peak Reverse Voltage (VRSM) 1400 V
Maximum Average On-State Current (IT(AV)) 1718 A at 55°C
Maximum RMS On-State Current (IT(RMS)) 3450 A
Maximum DC On-State Current (IT(d.c.)) 2852 A
Peak Non-Repetitive Surge Current (ITSM) 27.2 kA (10ms pulse)
Thermal Resistance Junction to Case (RthJC) 0.65 K/W
Thermal Resistance Case to Heat Sink (RthCH) 0.1 K/W
Operating Temperature Up to 85°C
Mounting Style Screw Mount
